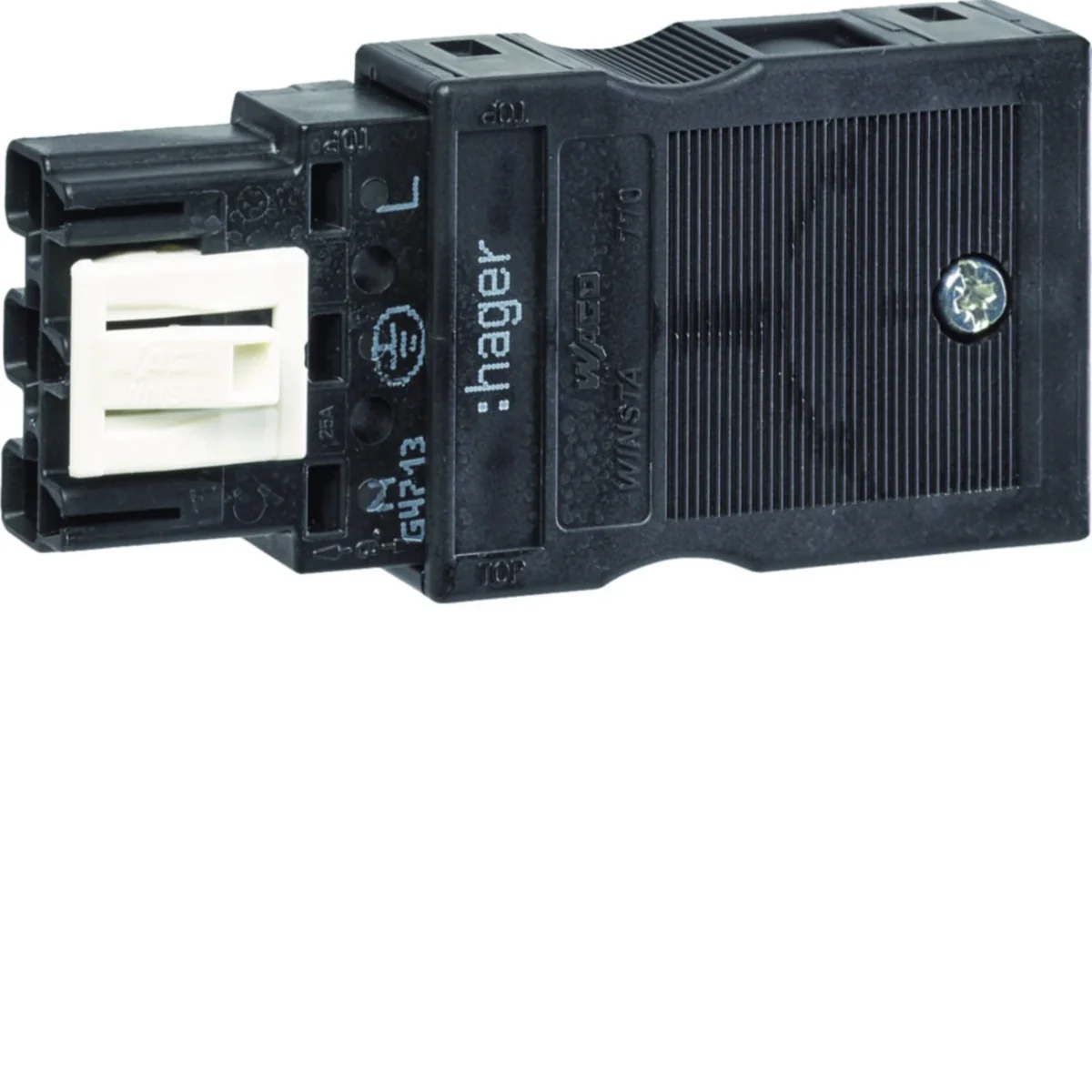

Three-pole output plug G4713

local index:
TAK004TEHA
Catalog No:
G4713
EAN code:
4012740849586
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 76
Color: Black
Price:
5,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

3-pole output plug

Technical data

  • Halogen free
    Yes
  • Color
    Black
  • Material
    Miscellaneous materials
  • Level of security
    IP20
  • Height [mm]
    15
  • Connection type
    With spring connection
  • Length [mm]
    76
  • Number of poles
    2P
  • Rated voltage [V]
    230
  • Width [mm]
    34.6
  • Surface finish
    Natural
  • PKWIU
    27.33.13.0

Other technical data

  • Rated voltage
    250 V
  • Number of poles
    2
  • Connection type
    Spring clamp connection
  • Connection cross section (fine-strand)
    0.5 ... 4 mm²
  • Number of connections per pole
    2
  • Mechanical coding
    Yes
  • Max. continuous temperature resistance contact part
    85 °C
  • Housing material
    Other
  • Contact material
    Other
  • Pollution degree
    3
  • Rated surge voltage
    4 kV
  • Height
    15 mm
  • Rated current
    32 A
  • Degree of protection (IP)
    IP20
  • Model
    Plug
  • Connection cross section (solid-core)
    0.5 ... 4 mm²
  • Pole codification
    L, N, PE
  • With strain relief
    Yes
  • Max. continuous temperature resistance strain relief
    105 °C
  • Halogen free
    Yes
  • Surface treatment contacts
    Untreated
  • Continuity resistance
    1 mΩ
  • Length
    76 mm
  • Width
    34.6 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 25 pcs. 200 pcs. 6400 pcs.
Weight (kg) 0,011 0,570 4,940 181,080
Width (m) 0,035 0,185 0,310 0,800
Length (m) 0,023 0,060 0,215 1,050
Depth (m) 0,050 0,220 0,360 1,200
