TEHALIT.WA Masking panel with description field, 3-fold ABS, halogen-free, graphite GB080319011

Name: TEHALIT.WA Masking panel with description field, 3-fold ABS, halogen-free, graphite
Brand: TEHALIT
SKU: TAK1M5TEHA
Price: 19.02 PLN

local index:

TAK1M5TEHA

Catalog No:

GB080319011

EAN code:

4012740909976

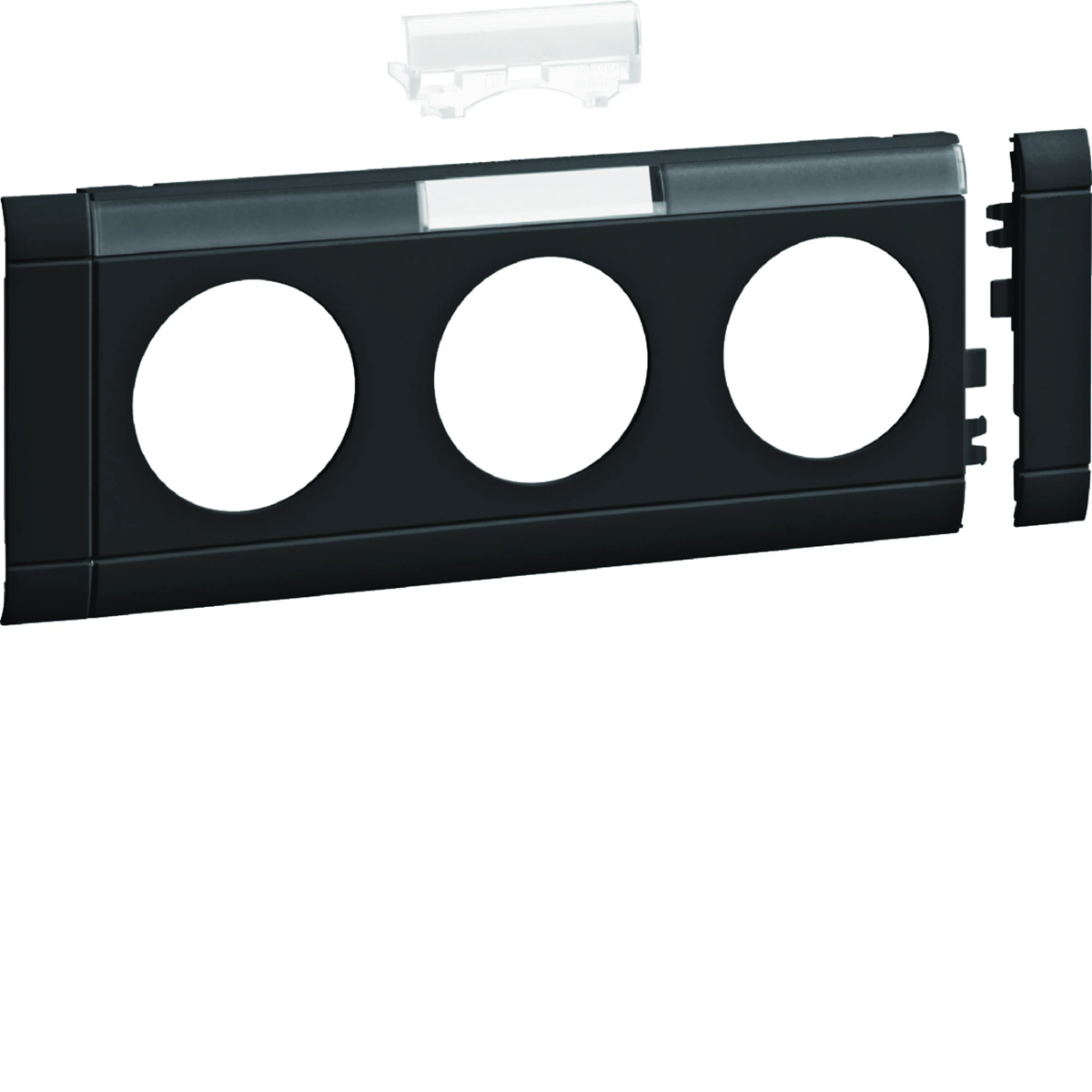

TEHALIT.WA Masking panel with description field, 3-fold ABS, halogen-free, graphite

Click on the photo to enlarge

Manufacturer: TEHALIT

Halogen free: Yes

Length [mm]: 212

Color: Graphite

See full description

Price:

19,02 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Triple masking cover with a description field, tehalit.WA series.

duct system: BR, BRA, BRS, BRN, BRHN,
made of ABS,
halogen-free (HFR).

Technical data

Halogen free

Yes
Color

Graphite
Family

TEHALIT.WA
Operating temperature range [°C]

from -25 to 90
Cut joint cover

Yes
Number of outputs

3

Length [mm]

212
Material

ABS
Cover width [mm]

80
Protective film

NO
Opening diameter [mm]

48
PKWIU

22.23.19.0

Other technical data

Cover width

80 mm
Diameter opening

48 mm
Type of device

Socket outlet for wall duct, 3-fold
Material

Plastic
Halogen free

Yes
RAL-number

9011
Type of fastening

Inner lying
With label area

Yes

Length

212 mm
Number of units

3
Model

Smooth
Material quality

Other
Colour

Anthracite
With protective foil

No
Joint cover

Yes

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	5 pcs.	1020 pcs.
Weight (kg)	0,044	0,046	0,290	84,160
Width (m)	0,081	0,083	0,113	0,800
Length (m)	0,013	0,006	0,096	1,050
Depth (m)	0,212	0,213	0,223	1,200
