TEHALIT.WA Masking panel with description field, 2-fold ABS halogen-free red GB080213020

local index:
TAK1K9TEHA
Catalog No:
GB080213020
EAN code:
4012740909792
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 152
Color: Red
Price:
16,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

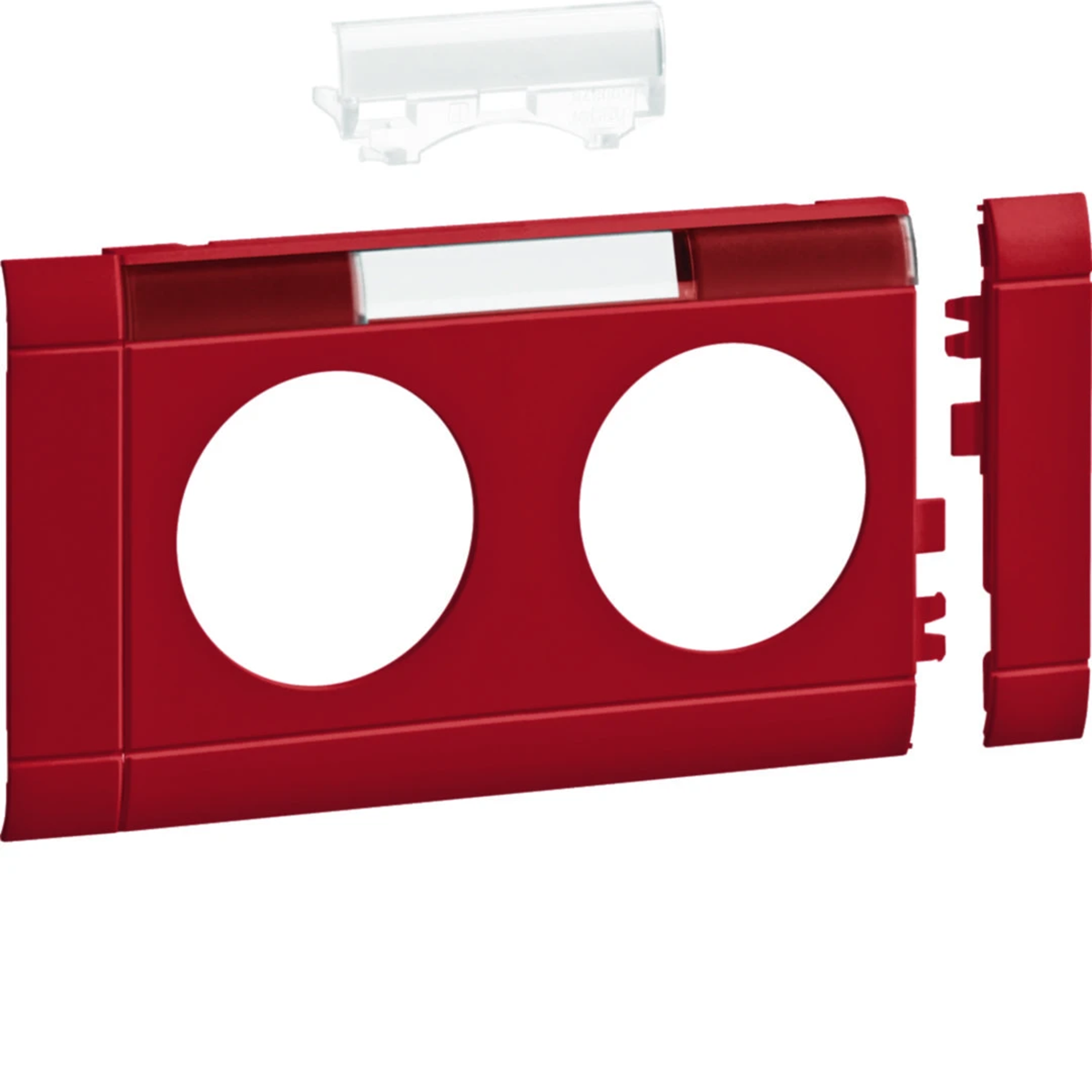

Two-fold cover plate with a description field, tehalit.WA series.

  • duct system: BR, BRA, BRS, BRN, BRHN,
  • made of ABS,
  • halogen-free (HFR).

Technical data

  • Halogen free
    Yes
  • Color
    Red
  • Family
    TEHALIT.WA
  • Operating temperature range [°C]
    from -25 to 90
  • Cut joint cover
    Yes
  • Number of outputs
    2
  • Length [mm]
    152
  • Material
    ABS
  • Cover width [mm]
    80
  • Protective film
    NO
  • Opening diameter [mm]
    48
  • PKWIU
    22.23.19.0

Other technical data

  • Cover width
    80 mm
  • Diameter opening
    48 mm
  • Type of device
    Socket outlet for wall duct, 2-fold
  • Material
    Plastic
  • Halogen free
    Yes
  • RAL-number
    3020
  • Type of fastening
    Inner lying
  • With label area
    Yes
  • Length
    152 mm
  • Number of units
    2
  • Model
    Smooth
  • Material quality
    Other
  • Colour
    Other
  • With protective foil
    No
  • Joint cover
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 5 pcs. 1680 pcs.
Weight (kg) 0,029 0,030 0,210 95,560
Width (m) 0,080 0,080 0,110 0,800
Length (m) 0,010 0,010 0,090 1,050
Depth (m) 0,150 0,150 0,160 1,200
