TEHALIT.WA Masking panel with description field, 2-fold ABS halogen-free 120mm red GB120213020

local index:
TAK1N2TEHA
Catalog No:
GB120213020
EAN code:
4012740855891
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 152
Color: Red
Price:
17,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

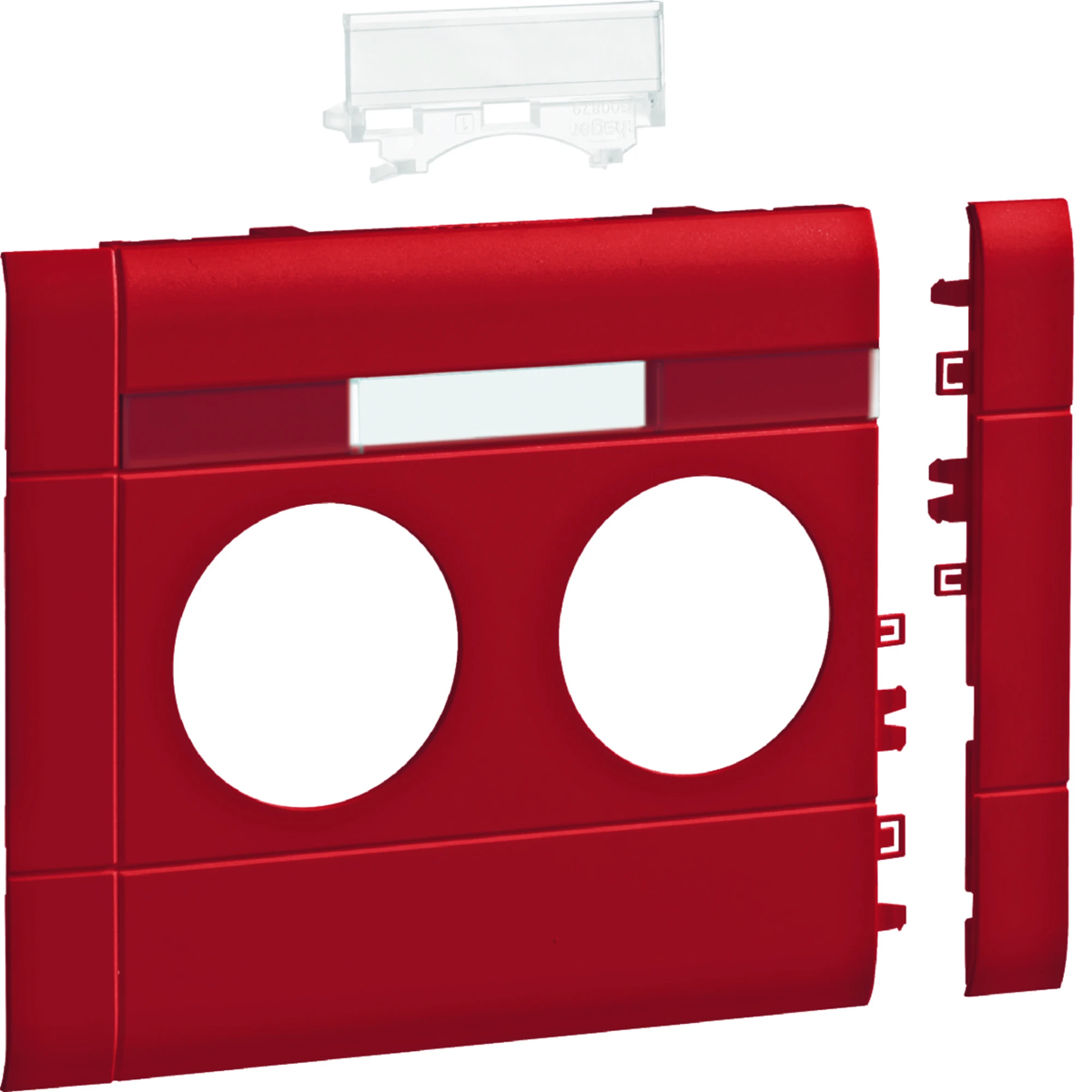

Double cover plate with description field, tehalit.WA series.

  • trunking system: BRH, BRA, BRS,
  • cover width: 120mm,
  • made of ABS,
  • halogen-free (HFR).

Technical data

  • Halogen free
    Yes
  • Color
    Red
  • Family
    TEHALIT.WA
  • Operating temperature range [°C]
    from -25 to 90
  • Cut joint cover
    Yes
  • Number of outputs
    2
  • Length [mm]
    152
  • Material
    ABS
  • Cover width [mm]
    120
  • Protective film
    NO
  • Opening diameter [mm]
    48
  • PKWIU
    22.23.19.0

Other technical data

  • Cover width
    120 mm
  • Diameter opening
    48 mm
  • Type of device
    Socket outlet for wall duct, 2-fold
  • Material
    Plastic
  • Halogen free
    Yes
  • RAL-number
    3020
  • Type of fastening
    Inner lying
  • With label area
    Yes
  • Length
    152 mm
  • Number of units
    2
  • Model
    Smooth
  • Material quality
    Other
  • Colour
    Other
  • With protective foil
    No
  • Joint cover
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 5 pcs. 1080 pcs.
Weight (kg) 0,046 0,048 0,304 90,664
Width (m) 0,121 0,120 0,110 0,800
Length (m) 0,019 0,010 0,110 1,050
Depth (m) 0,153 0,150 0,160 1,200
