TEHALIT.VE-EE Full cover VDR12 fi306 lining 5mm black VDR12059005

Name: TEHALIT.VE-EE Full cover VDR12 fi306 lining 5mm black
Brand: TEHALIT
SKU: TRP005TEHA
Price: 215.94 PLN
Availability: BackOrder

local index:

TRP005TEHA

Catalog number:

VDR12059005

EAN code:

4012002244371

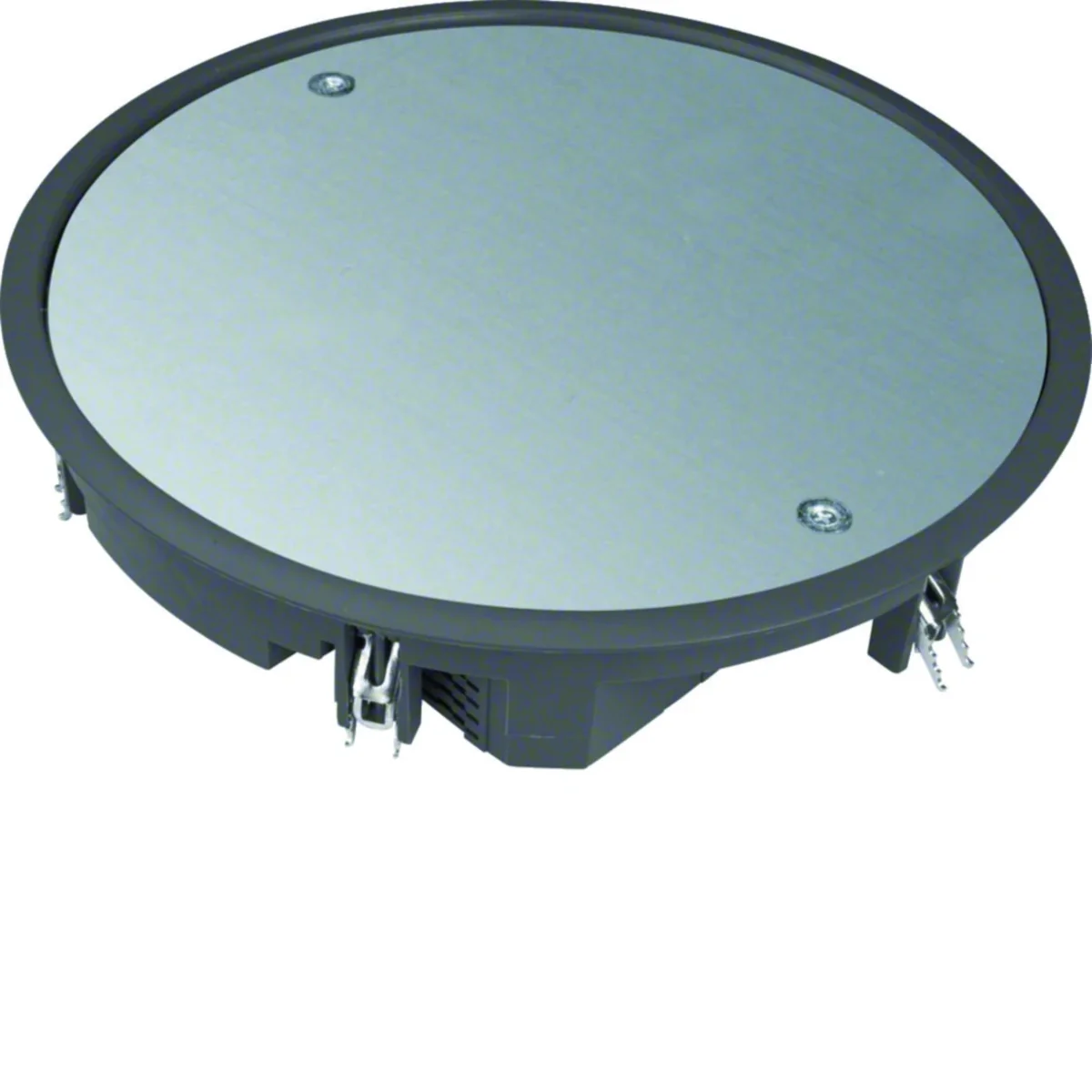

TEHALIT.VE-EE Full cover VDR12 fi306 lining 5mm black

Click on the photo to enlarge

Manufacturer: TEHALIT

Halogen free: Yes

Color: Black

Material: Polyamide

See full description

Price:

215,94 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Full cover for dry-cleaned floors, series tehalit.VE-EE:

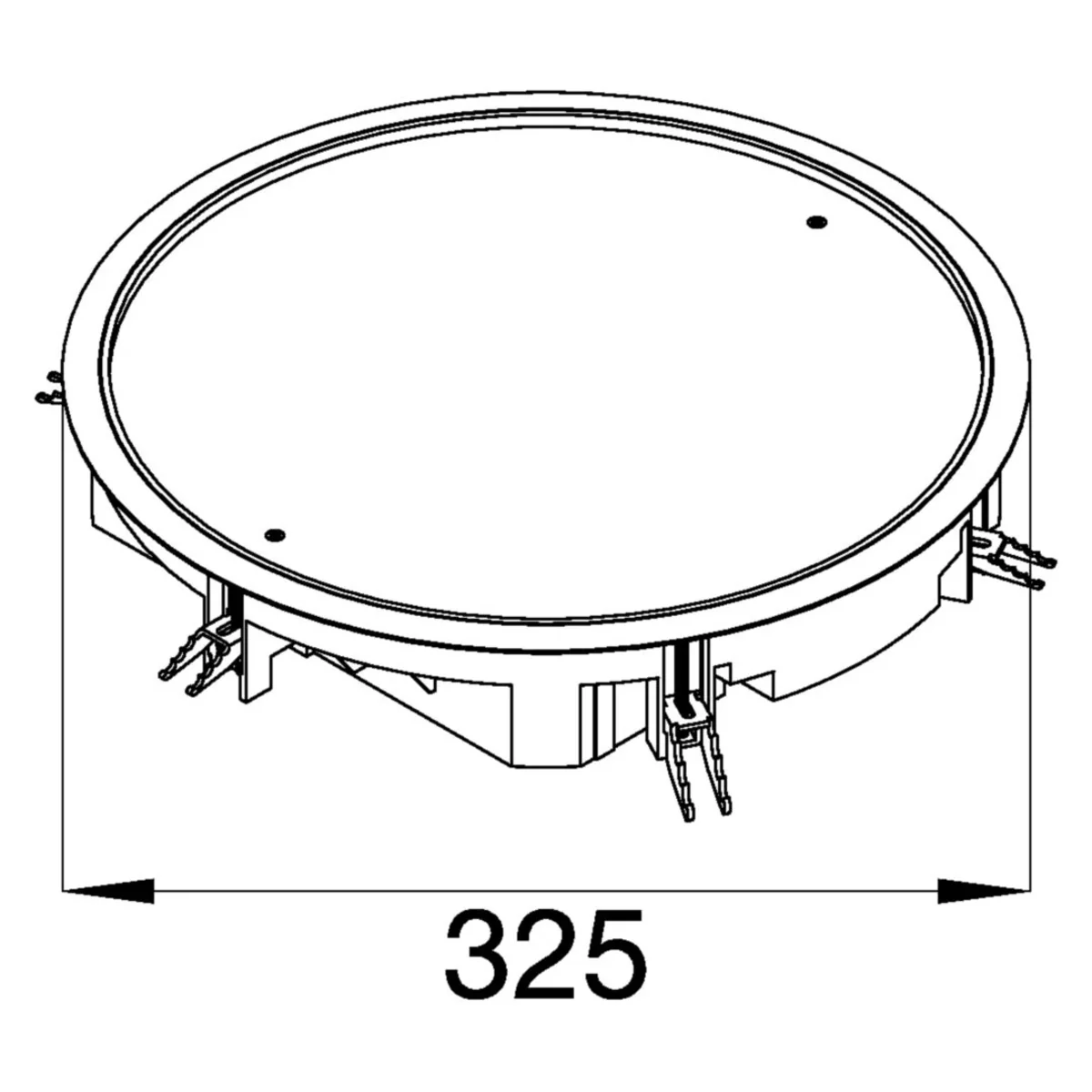

external dimension: Ø 325 mm< /li>
installation dimension: Ø 306 mm
for 5 mm carpet = minimum installation depth 60 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Technical data

Halogen free

Yes
Material

Polyamide
Minimum installation depth [mm]

55
PKWIU

22.23.19.0

Color

Black
Family

TEHALIT.VE-EE
How to use and clean the floor

dry

Other technical data

Cover model

Other
Number of device cups

0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)

0
With cable outlet in cover

No
Lock control

Tool
Surface protection housing

Other
Obciążenie pionowe na małej powierzchni zgodnie z EN 50085-2-2

3 kN
Stopień ochrony (IP) w użyciu (wyjście kablowe otwarte)

IP20
With opening carpeting

Yes
Protective frame carpeting

Yes
RAL-number

9005
Suitable for outdoor installation

No
Suitable for hollow floor

Yes
Suitable for concrete installation

Yes
Suitable for wet cleaning

No
Built-in diameter

306 mm

Number of inlets

0
Number of socket outlets with protective contact CEE 7/3 (type F)

0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)

0
Lockable cover

Yes
Housing material

Plastic
Material cover

Plastic
Obciążenie pionowe na dużej powierzchni (duże obciążenie) zgodnie z EN 50085-2-2

5 kN
Stopień ochrony (IP) w stanie nieużywanym (wyjście kablowe zamknięte)

IP30
Depth of flooring recess

5 mm
Colour

Black
Suitable for indoor installation

Yes
Suitable for subfloor duct

Yes
Suitable for double floor built-in

Yes
Suitable for floors in computer rooms

Yes
Outer diameter

325 mm
Min. built-in depth

55 mm

Manufacturer details

Manufacturer

Tehalit GmbH
Address

67716 Heltersberg Seebergstrasse 37 Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	1 pcs.	3 pcs.	90 pcs.	1 pcs.	3 pcs.	90 pcs.
Weight (kg)	2,173	6,740	227,200	2,173	6,740	227,200
Width (m)	0,320	0,340	0,800	0,320	0,340	0,800
Length (m)	0,050	0,210	0,990	0,050	0,210	0,990
Depth (m)	0,320	0,340	1,200	0,320	0,340	1,200
