Name: TEHALIT.VE-EE Full cover VDR10 fi275 lining 5mm black
Brand: TEHALIT
SKU: TRP009TEHA
Price: 63.90 PLN

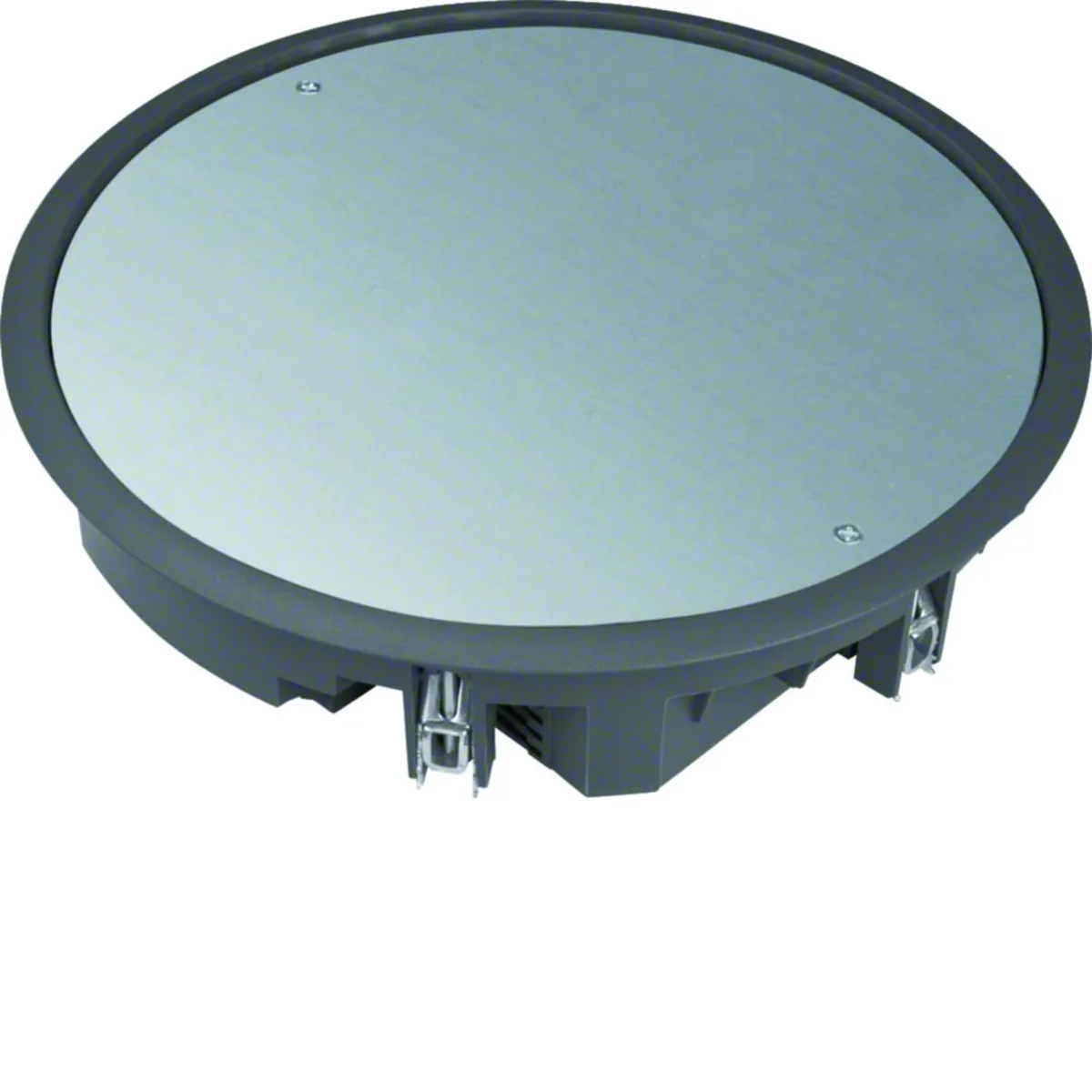

Full lid for dry-cleaned floors, series tehalit.VE-EE:

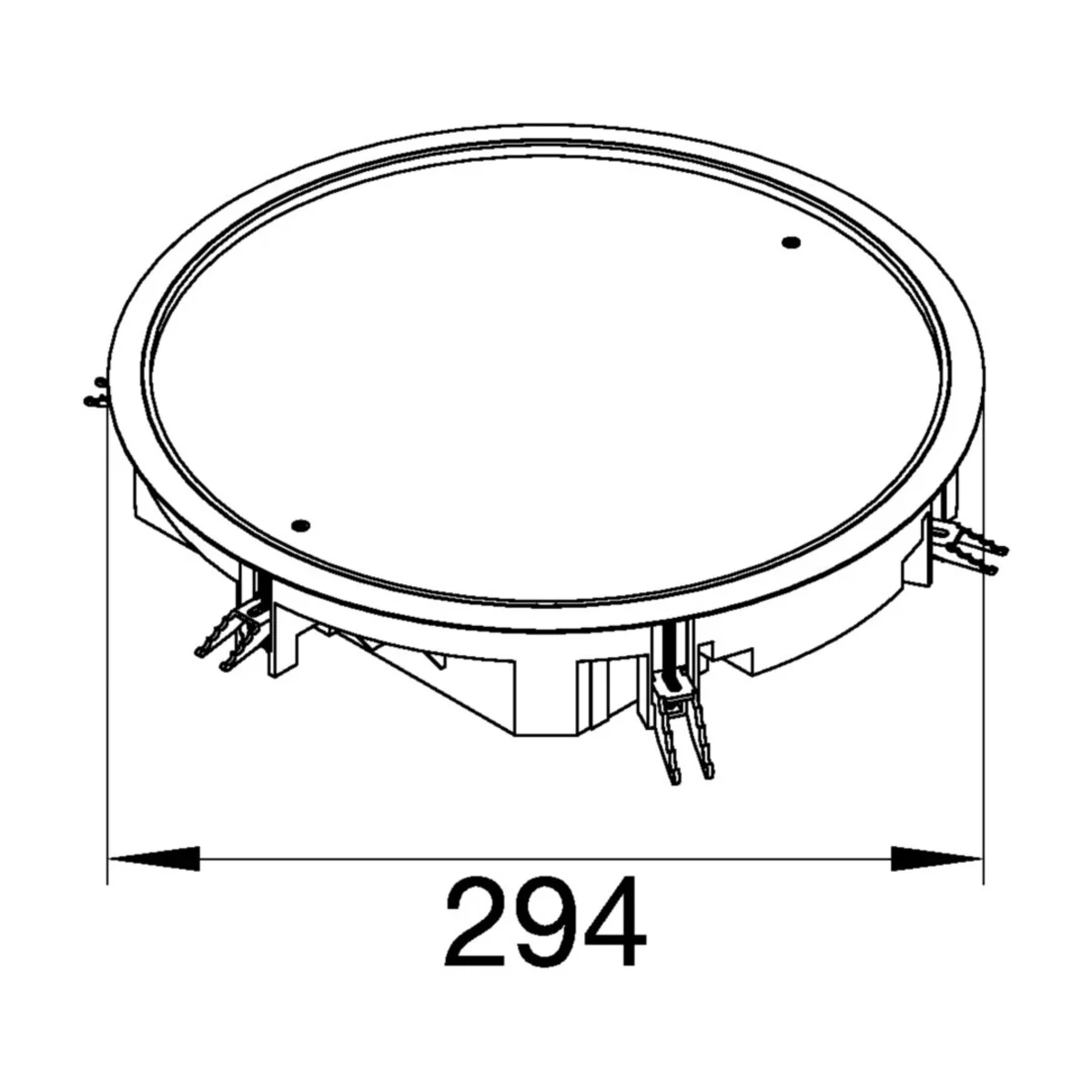

external dimension: Ø 294 mm< /li>
installation dimension: Ø 275 mm
for 5 mm carpet = minimum installation depth 60 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Halogen free

Yes
Material

Polyamide
Minimum installation depth [mm]

55
PKWIU

22.23.19.0

Color

Black
Family

TEHALIT.VE-EE
How to use and clean the floor

dry

Other technical data

Number of device cups

0
Degree of protection (IP)

IP20
Depth of flooring recess

5 mm
Colour

Black
Suitable for subfloor duct

Yes
Suitable for double floor built-in

Yes
Outer diameter

294 mm
Min. built-in depth

55 mm

Number of socket outlets with protective contact CEE 7/3 (type F)

0
With opening carpeting

Yes
Protective frame carpeting

Yes
RAL-number

9005
Suitable for hollow floor

Yes
Suitable for wet cleaning

No
Built-in diameter

275 mm

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	3 pcs.	90 pcs.
Weight (kg)	1,671	1,672	5,487	189,610
Width (m)	0,295	0,300	0,320	0,800
Length (m)	0,060	0,060	0,240	1,050
Depth (m)	0,295	0,300	0,320	1,200
