TEHALIT.VE-EE Full cover VDR10 fi275 lining 12mm gray steel VDR10127011

local index:
TRP008TEHA
Catalog No:
VDR10127011
EAN code:
4012002244340
Manufacturer: TEHALIT
Halogen free: Yes
Color: Silver
Material: Polyamide
Price:
63,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

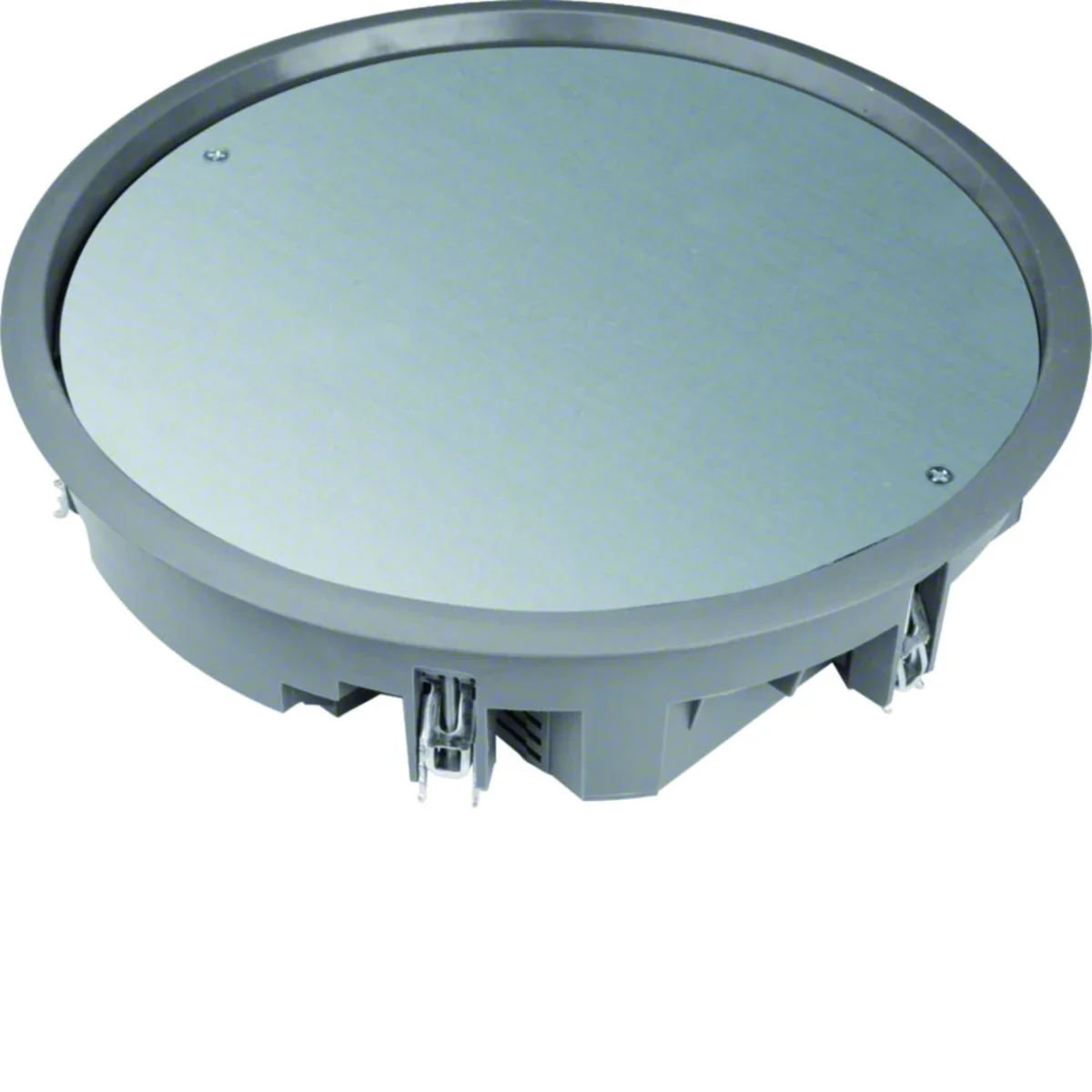

Full lid for dry-cleaned floors, series tehalit.VE-EE:

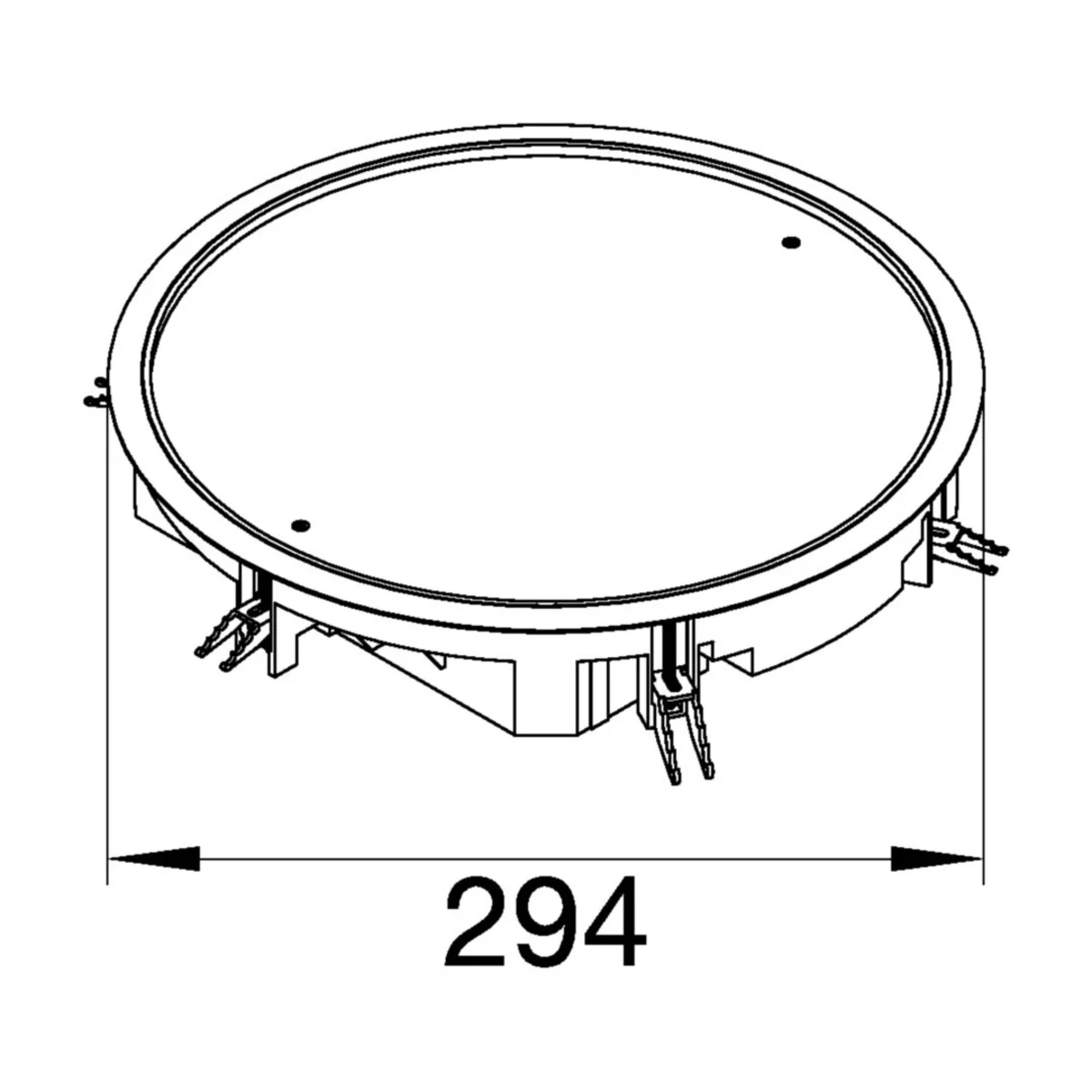

  • external dimension: Ø 294 mm< /li>
  • installation dimension: Ø 275 mm
  • for 12 mm carpet = minimum installation depth 65 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Technical data

  • Halogen free
    Yes
  • Material
    Polyamide
  • Accurate color
    Steel
  • How to use and clean the floor
    dry
  • Color
    Silver
  • Family
    TEHALIT.VE-EE
  • Minimum installation depth [mm]
    62
  • PKWIU
    22.23.19.0

Other technical data

  • Number of device cups
    0
  • Degree of protection (IP)
    IP20
  • Depth of flooring recess
    12 mm
  • Colour
    Grey
  • Suitable for subfloor duct
    Yes
  • Suitable for double floor built-in
    Yes
  • Outer diameter
    294 mm
  • Min. built-in depth
    62 mm
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    0
  • With opening carpeting
    Yes
  • Protective frame carpeting
    Yes
  • RAL-number
    7011
  • Suitable for hollow floor
    Yes
  • Suitable for wet cleaning
    No
  • Built-in diameter
    275 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 3 pcs. 78 pcs.
Weight (kg) 1,705 1,706 5,822 176,372
Width (m) 0,295 0,290 0,320 0,800
Length (m) 0,065 0,070 0,240 1,050
Depth (m) 0,295 0,290 0,320 1,200
