TEHALIT.VE-EE Full cover VDR06 fi215 lining 5mm black VDR06059005

Name: TEHALIT.VE-EE Full cover VDR06 fi215 lining 5mm black
Brand: TEHALIT
SKU: TKP675TEHA
Price: 176.33 PLN
Availability: BackOrder

Índice local:

TKP675TEHA

Número de catálogo:

VDR06059005

Código EAN:

4012002244296

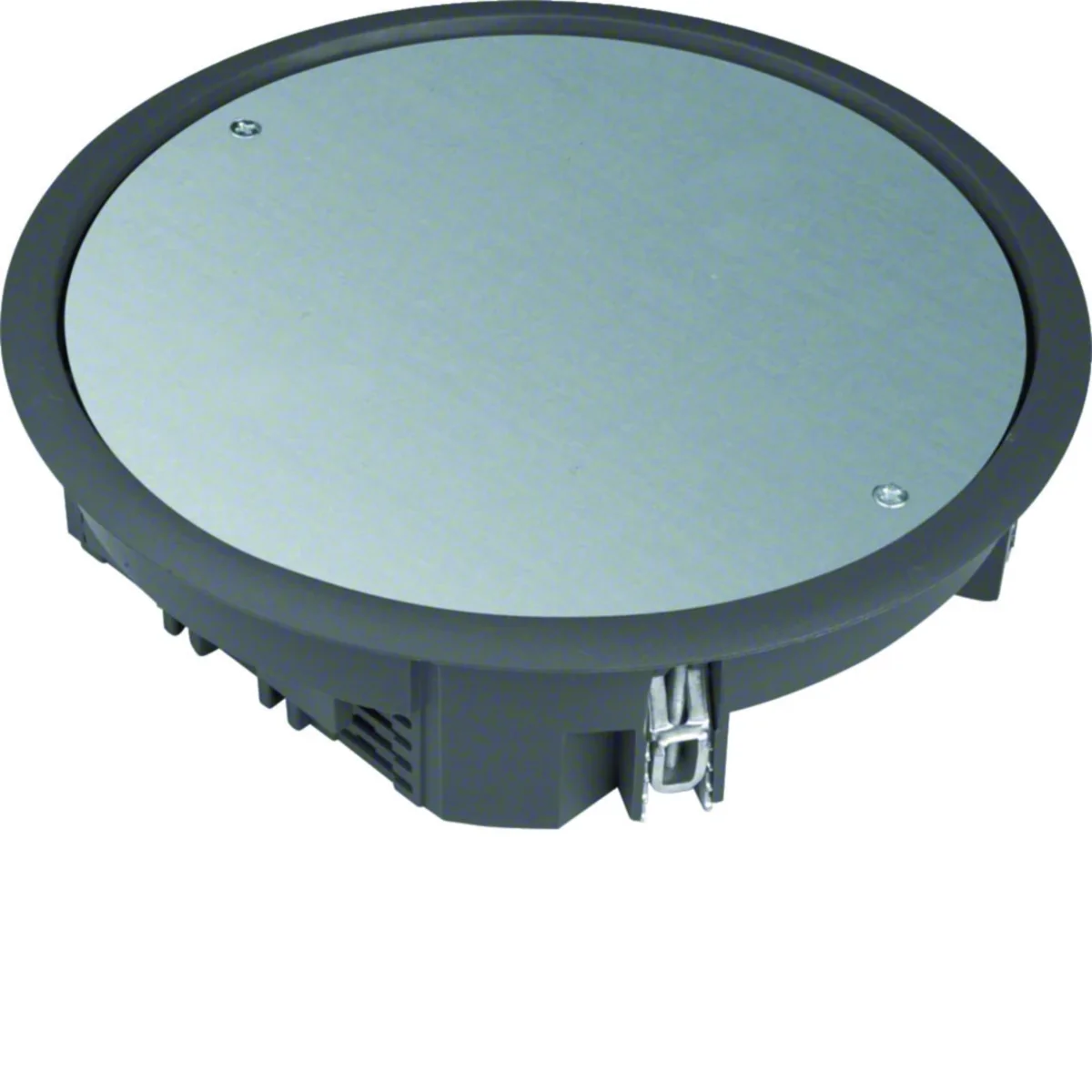

TEHALIT.VE-EE Full cover VDR06 fi215 lining 5mm black

Haga clic en la foto para ampliar

Fabricante: TEHALIT

Halogen free: Yes

Color: Black

Material: Polyamide

Ver descripción completa

Precio:

176,33 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Full lid for dry-cleaned floors, series tehalit.VE-EE:

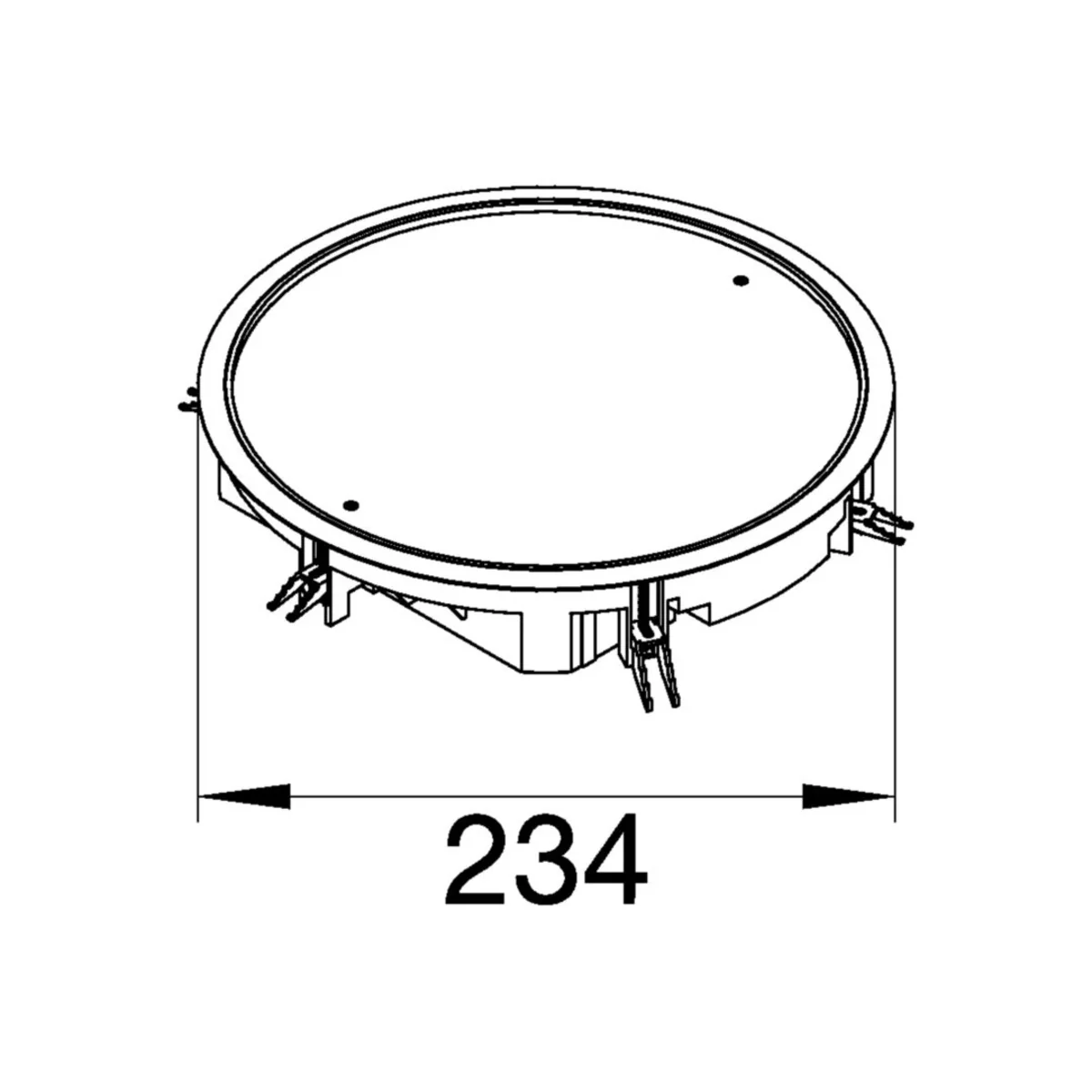

external dimension: Ø 234 mm< /li>
installation dimension: Ø 215 mm
for 5 mm carpet = minimum installation depth 60 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Datos técnicos

Halogen free

Yes
Material

Polyamide
Minimum installation depth [mm]

60
PKWIU

22.23.19.0

Color

Black
Family

TEHALIT.VE-EE
How to use and clean the floor

dry

Otros datos técnicos

Cover model

Other
Number of device cups

0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)

0
With cable outlet in cover

No
Lock control

Tool
Surface protection housing

Other
Obciążenie pionowe na małej powierzchni zgodnie z EN 50085-2-2

3 kN
Stopień ochrony (IP) w użyciu (wyjście kablowe otwarte)

IP20
With opening carpeting

Yes
Protective frame carpeting

Yes
RAL-number

9005
Suitable for outdoor installation

No
Suitable for hollow floor

Yes
Suitable for concrete installation

Yes
Suitable for wet cleaning

No
Built-in diameter

215 mm

Number of inlets

0
Number of socket outlets with protective contact CEE 7/3 (type F)

0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)

0
Lockable cover

Yes
Housing material

Plastic
Material cover

Plastic
Obciążenie pionowe na dużej powierzchni (duże obciążenie) zgodnie z EN 50085-2-2

5 kN
Stopień ochrony (IP) w stanie nieużywanym (wyjście kablowe zamknięte)

IP30
Depth of flooring recess

5 mm
Colour

Black
Suitable for indoor installation

Yes
Suitable for subfloor duct

Yes
Suitable for double floor built-in

Yes
Suitable for floors in computer rooms

Yes
Outer diameter

234 mm
Min. built-in depth

60 mm

Detalles del fabricante

Fabricante

Tehalit GmbH
Dirección

67716 Heltersberg Seebergstrasse 37 Niemcy
Email

wsparcie.klienta@hager.com

Empaquetado a granel

una especie de paquete	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Cantidad	1 uds.	4 uds.	180 uds.	1 uds.	4 uds.	180 uds.
Peso (kg)	1,048	4,620	232,900	1,048	4,620	232,900
Ancho (m)	0,240	0,250	0,800	0,240	0,250	0,800
Longitud (m)	0,050	0,270	1,050	0,050	0,270	1,050
Profundidad (m)	0,240	0,250	1,200	0,240	0,250	1,200
