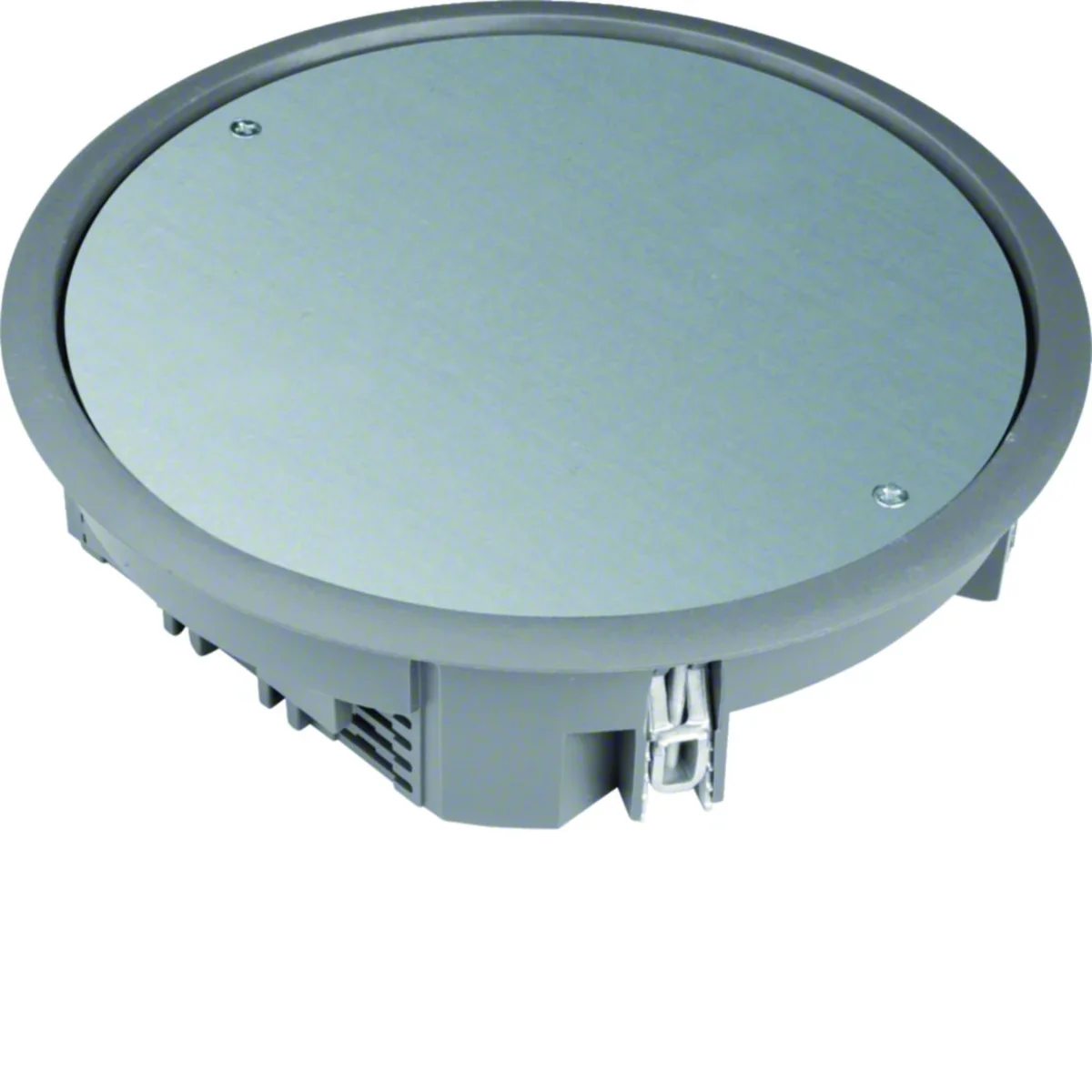

Name: TEHALIT.VE-EE Full cover VDR06 fi215 lining 12mm gray steel
Brand: TEHALIT
SKU: TRP012TEHA
Price: 39.75 PLN

Full cover for dry-cleaned floors, series tehalit.VE-EE:

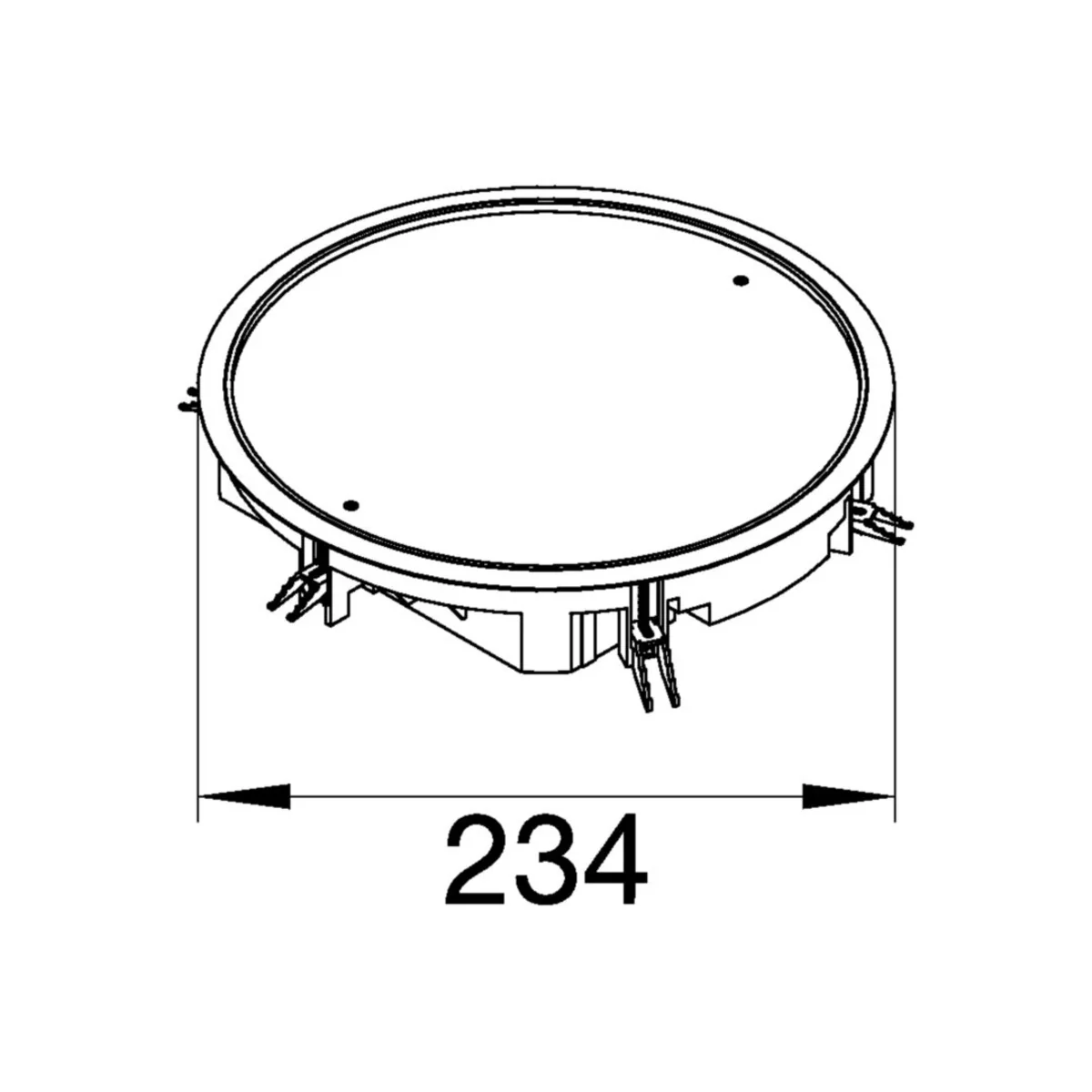

external dimension: Ø 234 mm< /li>
installation dimension: Ø 215 mm
for 12 mm carpet = minimum installation depth 65 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Halogen free

Yes
Material

Polyamide
Accurate color

Steel
How to use and clean the floor

dry

Color

Silver
Family

TEHALIT.VE-EE
Minimum installation depth [mm]

62
PKWIU

22.23.19.0

Other technical data

Number of device cups

0
Degree of protection (IP)

IP20
Depth of flooring recess

12 mm
Colour

Grey
Suitable for subfloor duct

Yes
Suitable for double floor built-in

Yes
Outer diameter

234 mm
Min. built-in depth

62 mm

Number of socket outlets with protective contact CEE 7/3 (type F)

0
With opening carpeting

Yes
Protective frame carpeting

Yes
RAL-number

7011
Suitable for hollow floor

Yes
Suitable for wet cleaning

No
Built-in diameter

215 mm

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	4 pcs.	144 pcs.
Weight (kg)	1,067	1,068	4,702	194,272
Width (m)	0,235	0,240	0,250	0,800
Length (m)	0,057	0,065	0,300	1,050
Depth (m)	0,235	0,240	0,250	1,200
