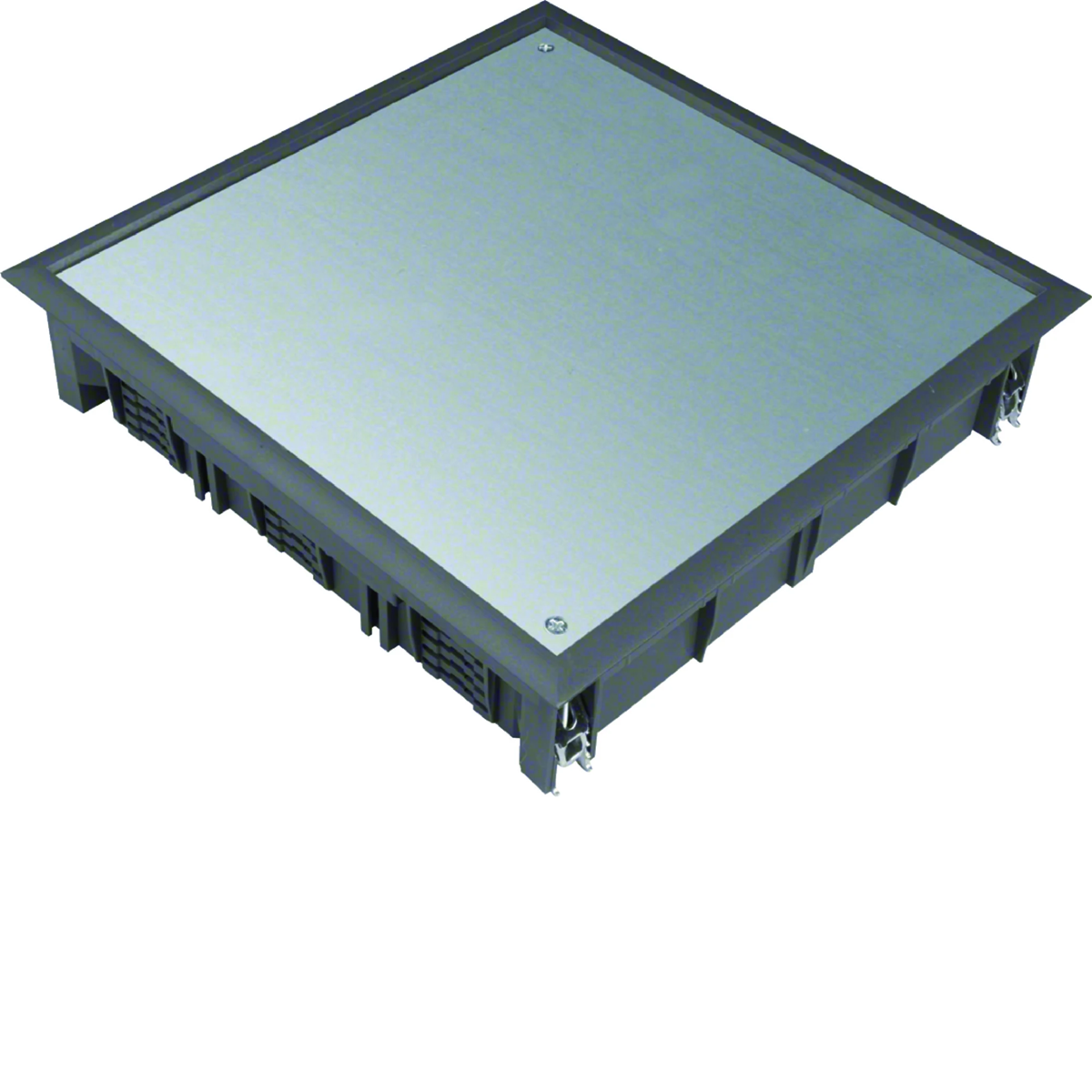

Name: TEHALIT.VE-EE Full cover VDQ12 244x244 lining 5mm black
Brand: TEHALIT
SKU: TKP671TEHA
Price: 39.79 PLN

Full cover for dry-cleaned floors, series tehalit.VE-EE:

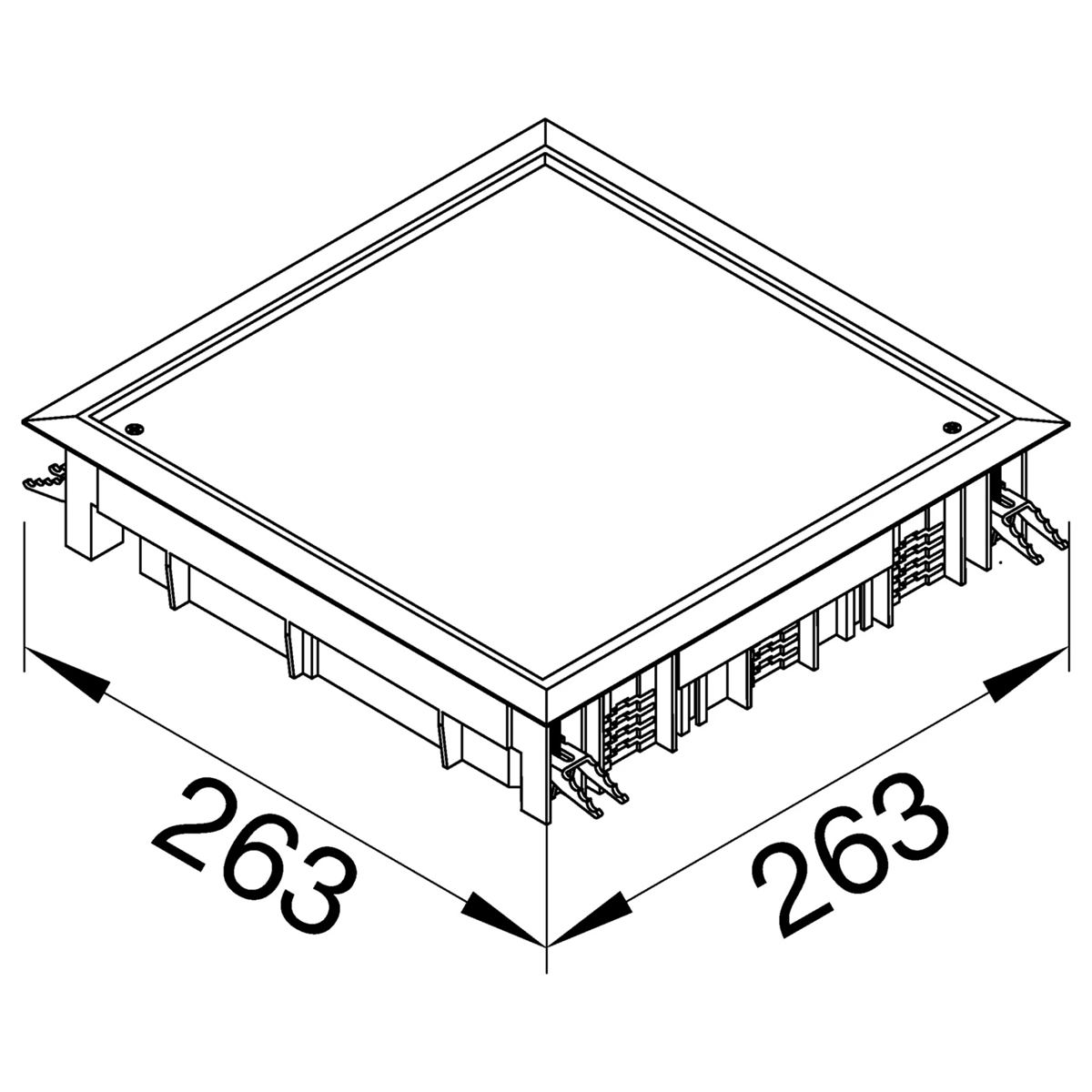

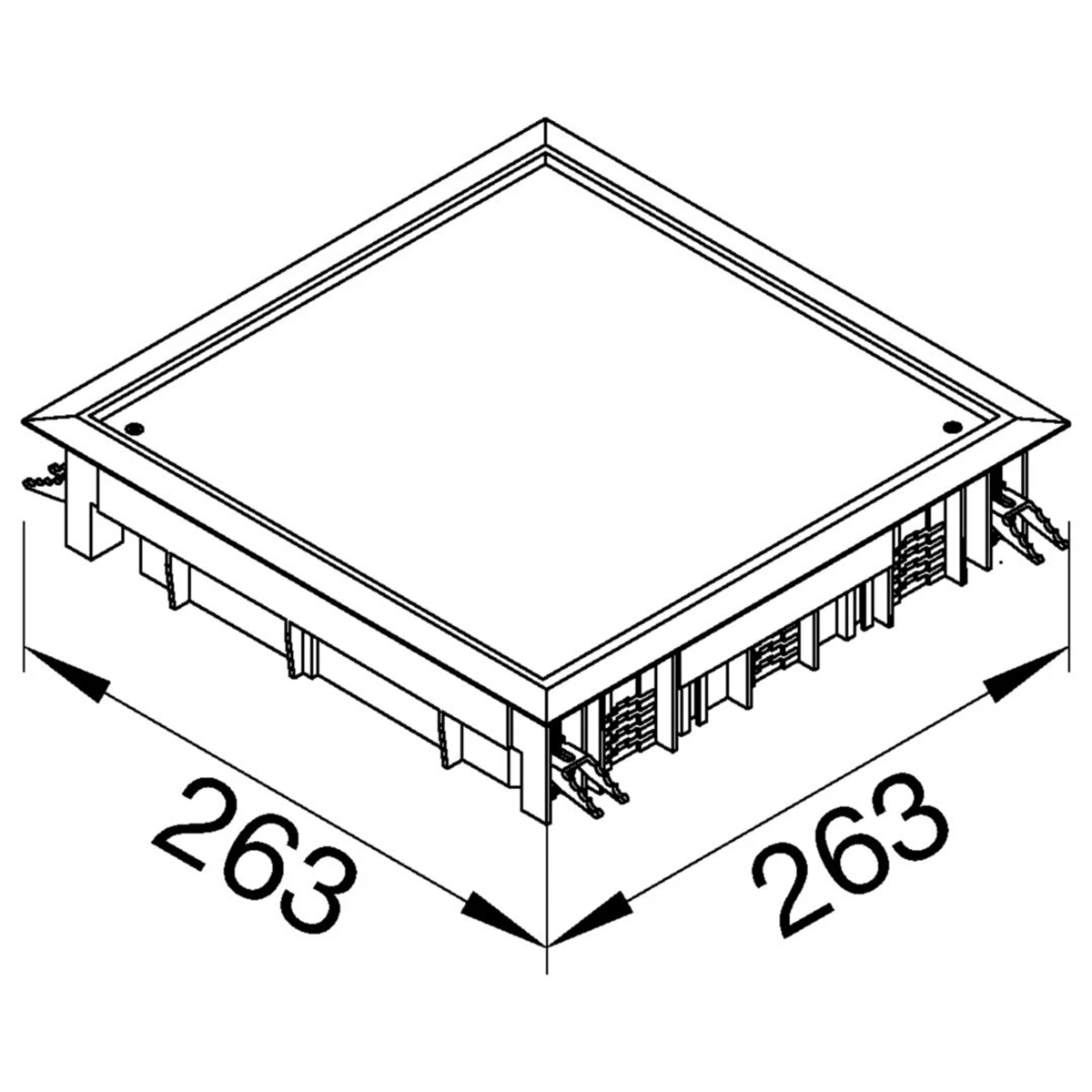

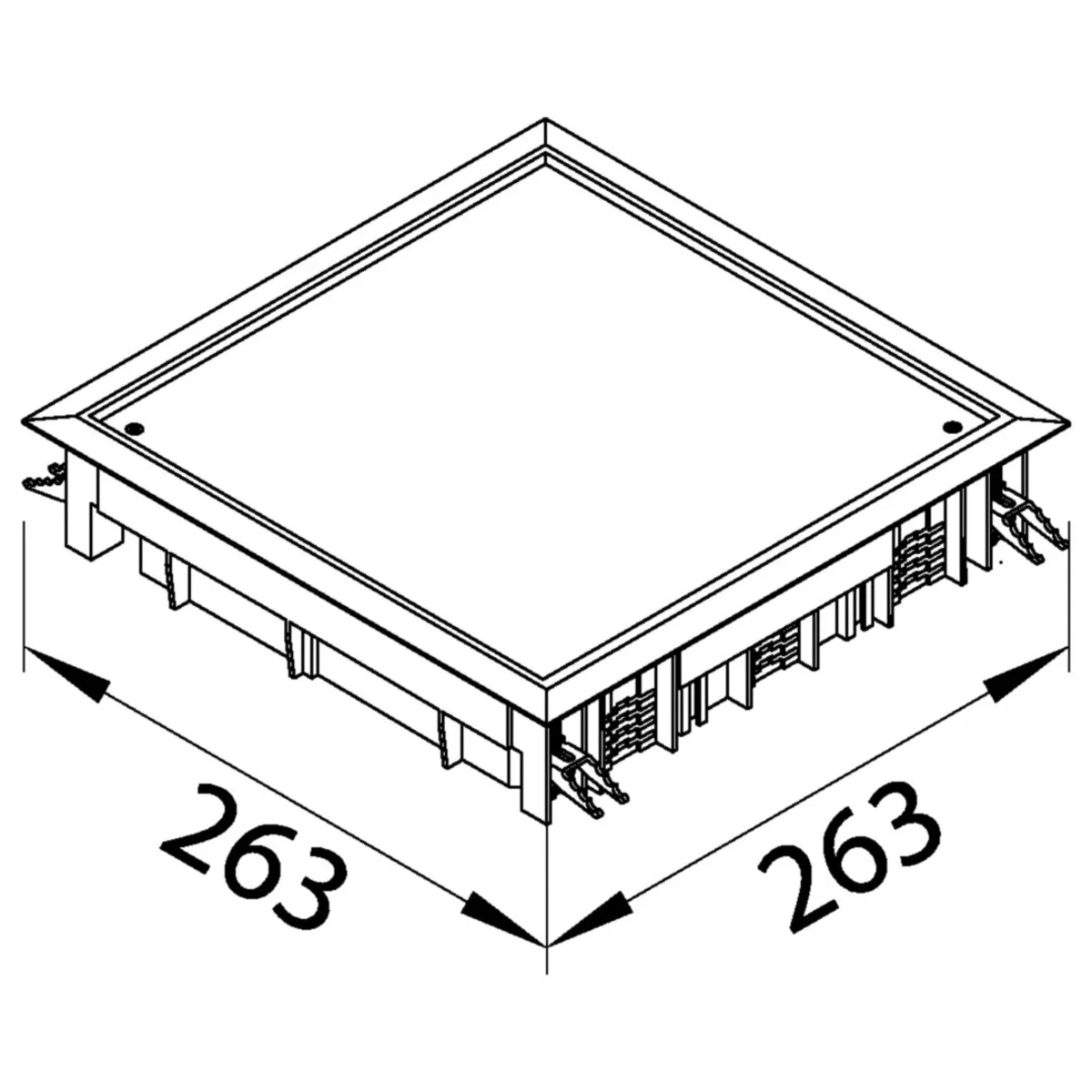

external dimensions: 263 x 263 mm
installation dimensions: 244 x 244 mm
for 5 mm carpet = minimum installation depth of 60 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Halogen free

Yes
Material

Polyamide
Minimum installation depth [mm]

60
Mounting dimension (length) [mm]

244
PKWIU

22.23.19.0

Color

Black
Family

TEHALIT.VE-EE
How to use and clean the floor

dry
Mounting dimension (width) [mm]

244

Other technical data

Number of device cups

0
Degree of protection (IP)

IP20
Depth of flooring recess

5 mm
Colour

Black
Suitable for subfloor duct

Yes
Suitable for double floor built-in

Yes
Width outside dimension

263 mm
Length built-in dimension

244 mm
Min. built-in depth

60 mm

Number of socket outlets with protective contact CEE 7/3 (type F)

0
With opening carpeting

Yes
Protective frame carpeting

Yes
RAL-number

9005
Suitable for hollow floor

Yes
Suitable for wet cleaning

No
Długość zewnętrzna

263 mm
Width built-in dimension

244 mm

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	4 pcs.	144 pcs.
Weight (kg)	1,631	1,632	7,056	279,016
Width (m)	0,263	0,265	0,275	0,800
Length (m)	0,060	0,060	0,260	1,300
Depth (m)	0,263	0,265	0,275	1,200
