TEHALIT.VE-EE Full cover VDQ12 244x244 lining 12mm black VDQ12129005

local index:
TKP673TEHA
Catalog No:
VDQ12129005
EAN code:
4012002244272
Manufacturer: TEHALIT
Halogen free: Yes
Color: Black
Material: Polyamide
Price:
39,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

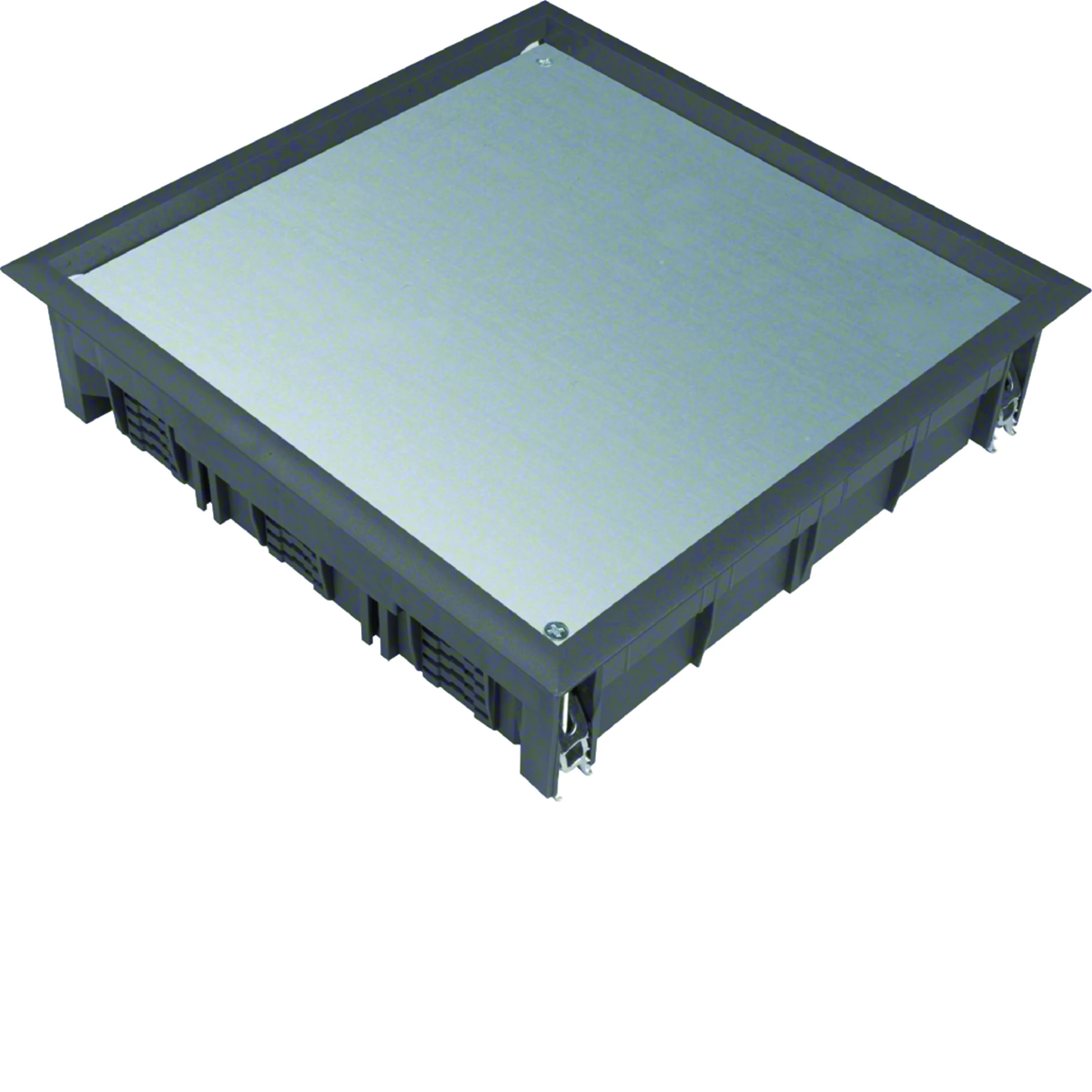

Full cover for dry-cleaned floors, series tehalit.VE-EE:

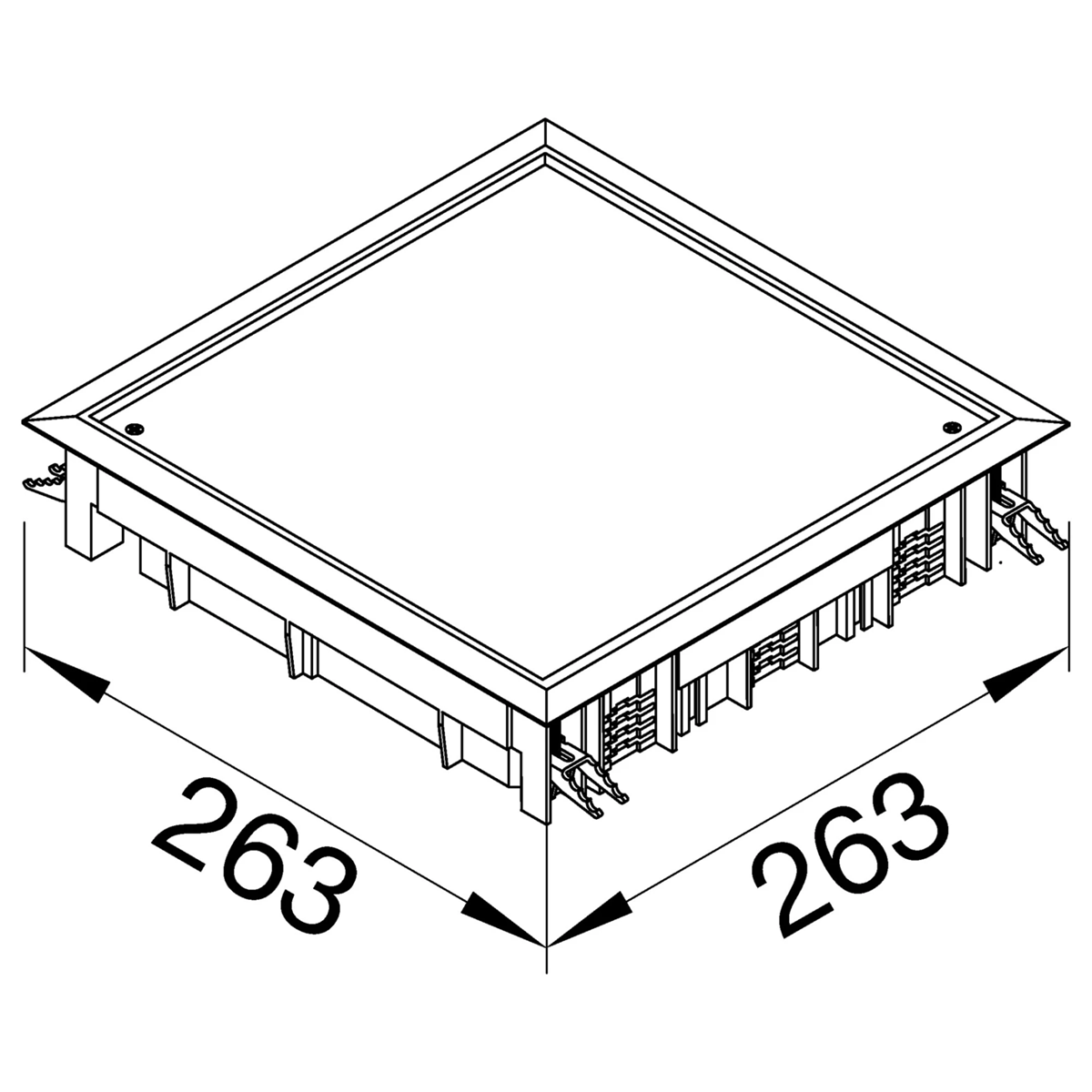

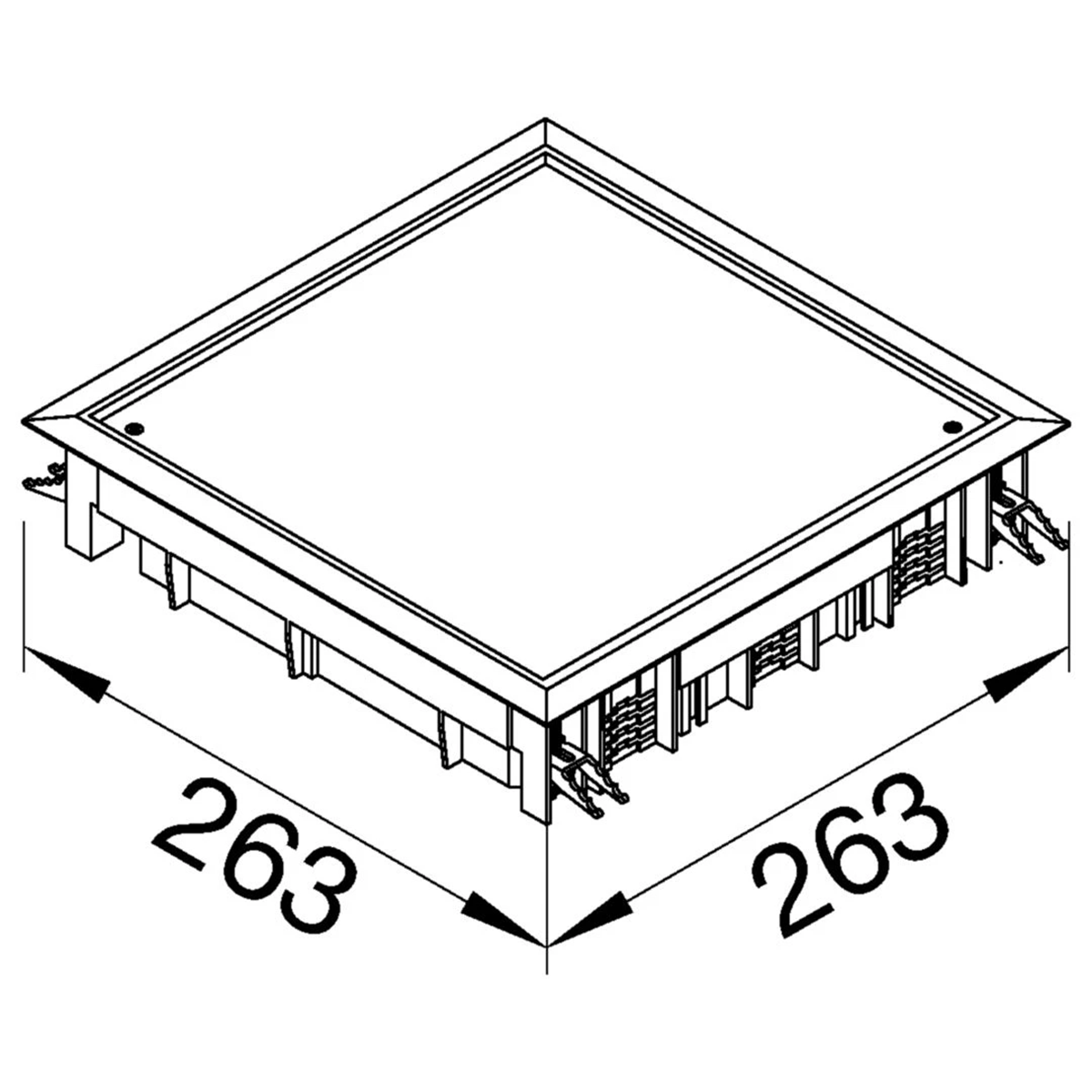

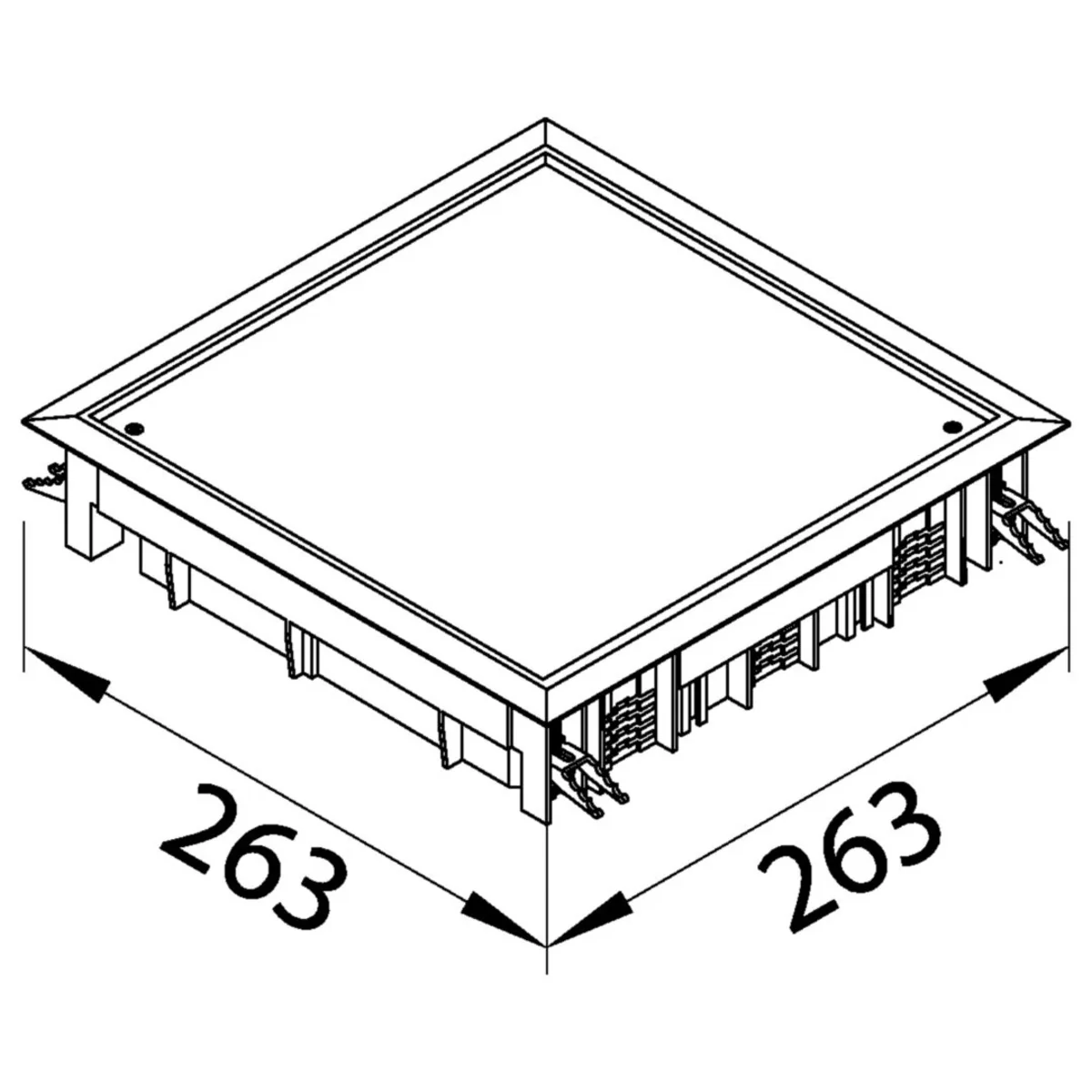

  • external dimensions: 263 x 263 mm
  • installation dimensions: 244 x 244 mm
  • for 12 mm carpet = minimum installation depth 65 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Technical data

  • Halogen free
    Yes
  • Material
    Polyamide
  • Minimum installation depth [mm]
    65
  • Mounting dimension (length) [mm]
    244
  • PKWIU
    22.23.19.0
  • Color
    Black
  • Family
    TEHALIT.VE-EE
  • How to use and clean the floor
    dry
  • Mounting dimension (width) [mm]
    244

Other technical data

  • Number of device cups
    0
  • Degree of protection (IP)
    IP20
  • Depth of flooring recess
    12 mm
  • Colour
    Black
  • Suitable for subfloor duct
    Yes
  • Suitable for double floor built-in
    Yes
  • Width outside dimension
    263 mm
  • Length built-in dimension
    244 mm
  • Min. built-in depth
    65 mm
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    0
  • With opening carpeting
    Yes
  • Protective frame carpeting
    Yes
  • RAL-number
    9005
  • Suitable for hollow floor
    Yes
  • Suitable for wet cleaning
    No
  • Długość zewnętrzna
    263 mm
  • Width built-in dimension
    244 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 4 pcs. 96 pcs.
Weight (kg) 1,679 1,680 6,720 199,629
Width (m) 0,260 0,260 0,280 0,800
Length (m) 0,060 0,060 0,300 0,900
Depth (m) 0,260 0,260 0,280 1,200
