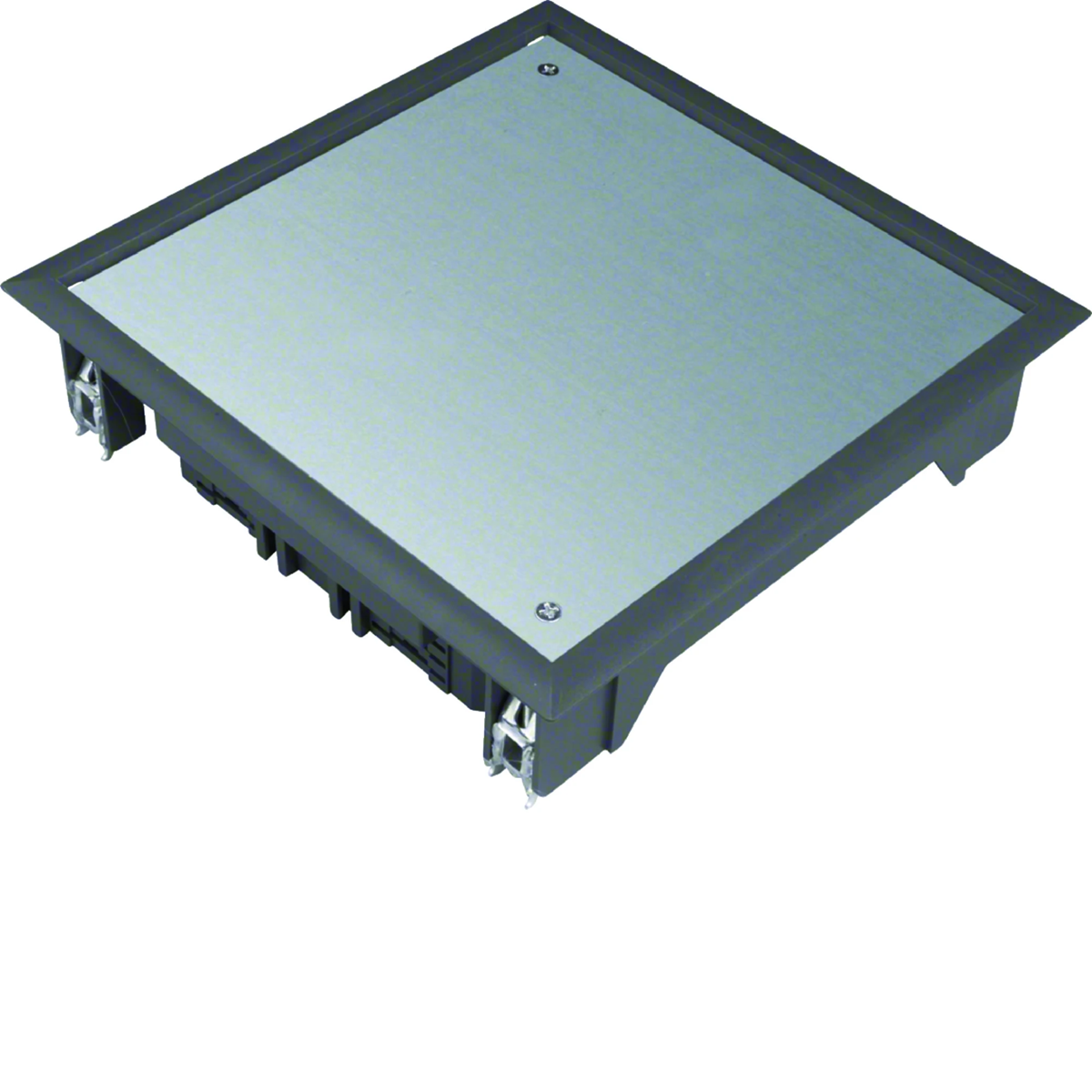

TEHALIT.VE-EE Full cover VDQ06 200x200 carpet 5mm black VDQ06059005

local index:
TKP667TEHA
Catalog No:
VDQ06059005
EAN code:
4012002244210
Manufacturer: TEHALIT
Halogen free: Yes
Color: Black
Material: Polyamide
Price:
27,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Full lid for dry-cleaned floors, series tehalit.VE-EE:

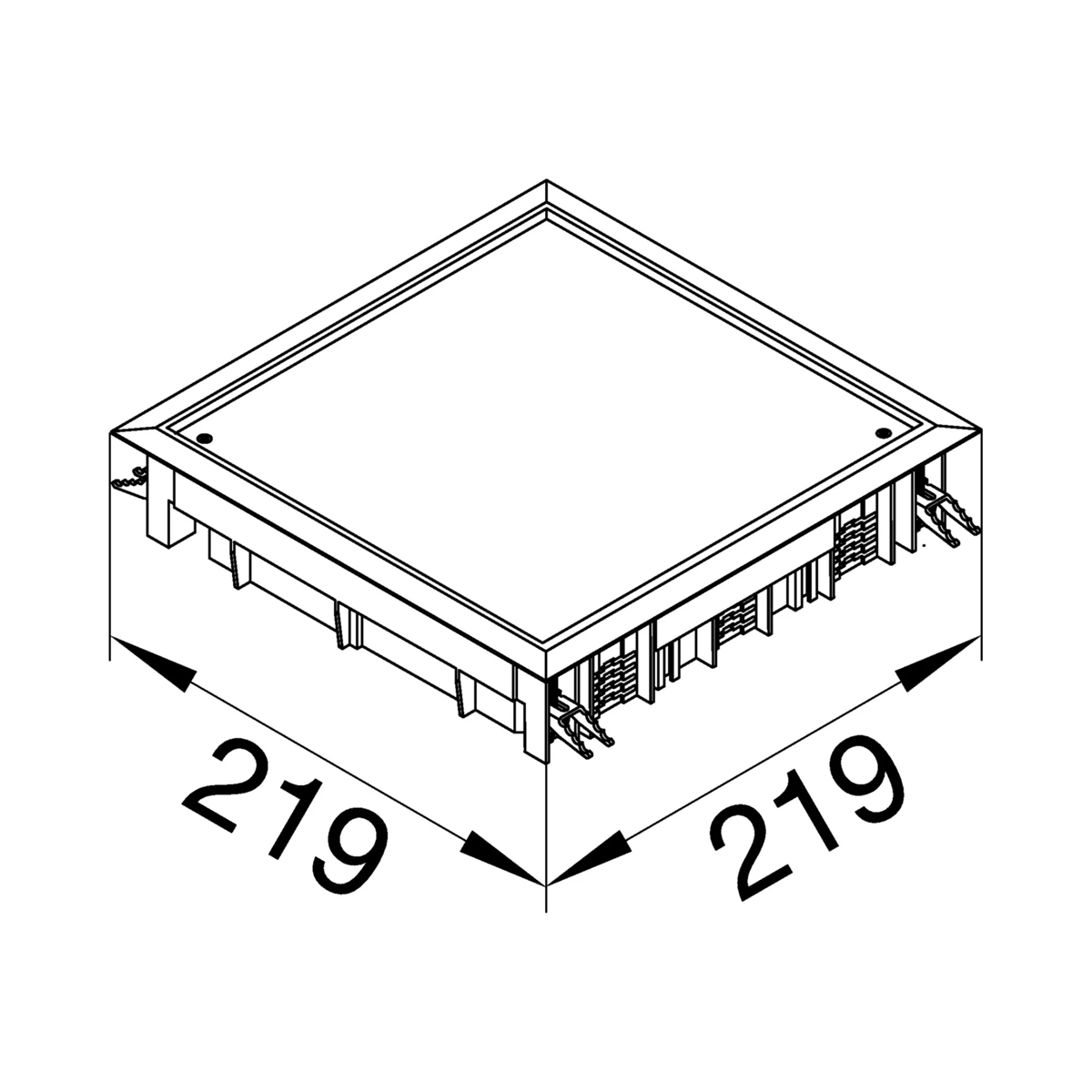

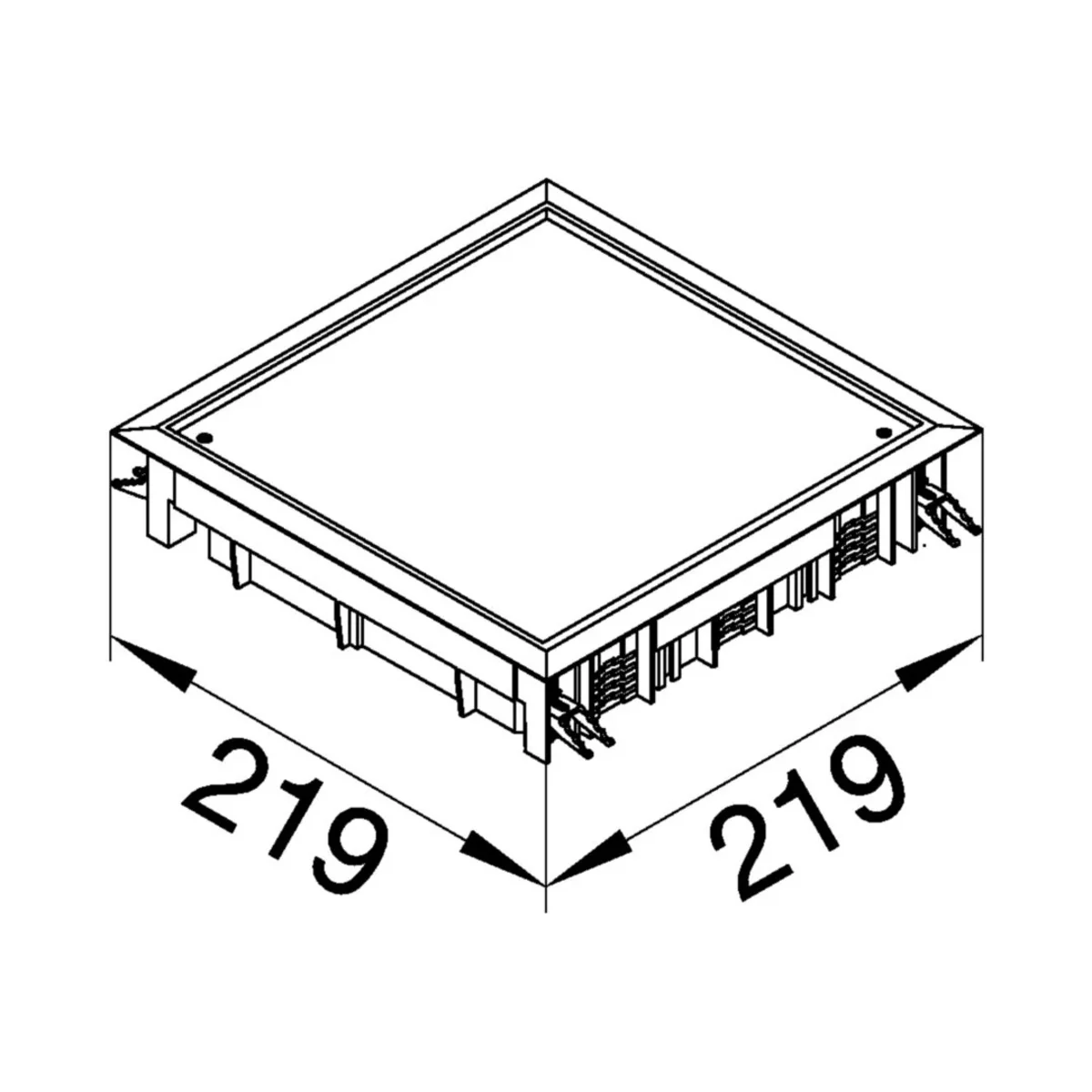

  • external dimensions: 219 x 219 mm
  • installation dimensions: 200 x 200 mm
  • under carpet 5 mm = minimum installation depth 60 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Technical data

  • Halogen free
    Yes
  • Material
    Polyamide
  • Minimum installation depth [mm]
    60
  • Mounting dimension (length) [mm]
    200
  • PKWIU
    22.23.19.0
  • Color
    Black
  • Family
    TEHALIT.VE-EE
  • How to use and clean the floor
    dry
  • Mounting dimension (width) [mm]
    200

Other technical data

  • Number of device cups
    0
  • Degree of protection (IP)
    IP20
  • Depth of flooring recess
    5 mm
  • Colour
    Black
  • Suitable for subfloor duct
    Yes
  • Suitable for double floor built-in
    Yes
  • Width outside dimension
    219 mm
  • Length built-in dimension
    200 mm
  • Min. built-in depth
    60 mm
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    0
  • With opening carpeting
    Yes
  • Protective frame carpeting
    Yes
  • RAL-number
    9005
  • Suitable for hollow floor
    Yes
  • Suitable for wet cleaning
    No
  • Długość zewnętrzna
    219 mm
  • Width built-in dimension
    200 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 4 pcs. 144 pcs.
Weight (kg) 1,170 1,226 8,470 329,920
Width (m) 0,220 0,220 0,320 0,800
Length (m) 0,057 0,065 0,240 1,590
Depth (m) 0,220 0,220 0,320 1,200
