Name: TEHALIT.VE-EE Full cover VDQ06 200x200 carpet 12mm black
Brand: TEHALIT
SKU: TKP669TEHA
Price: 27.34 PLN

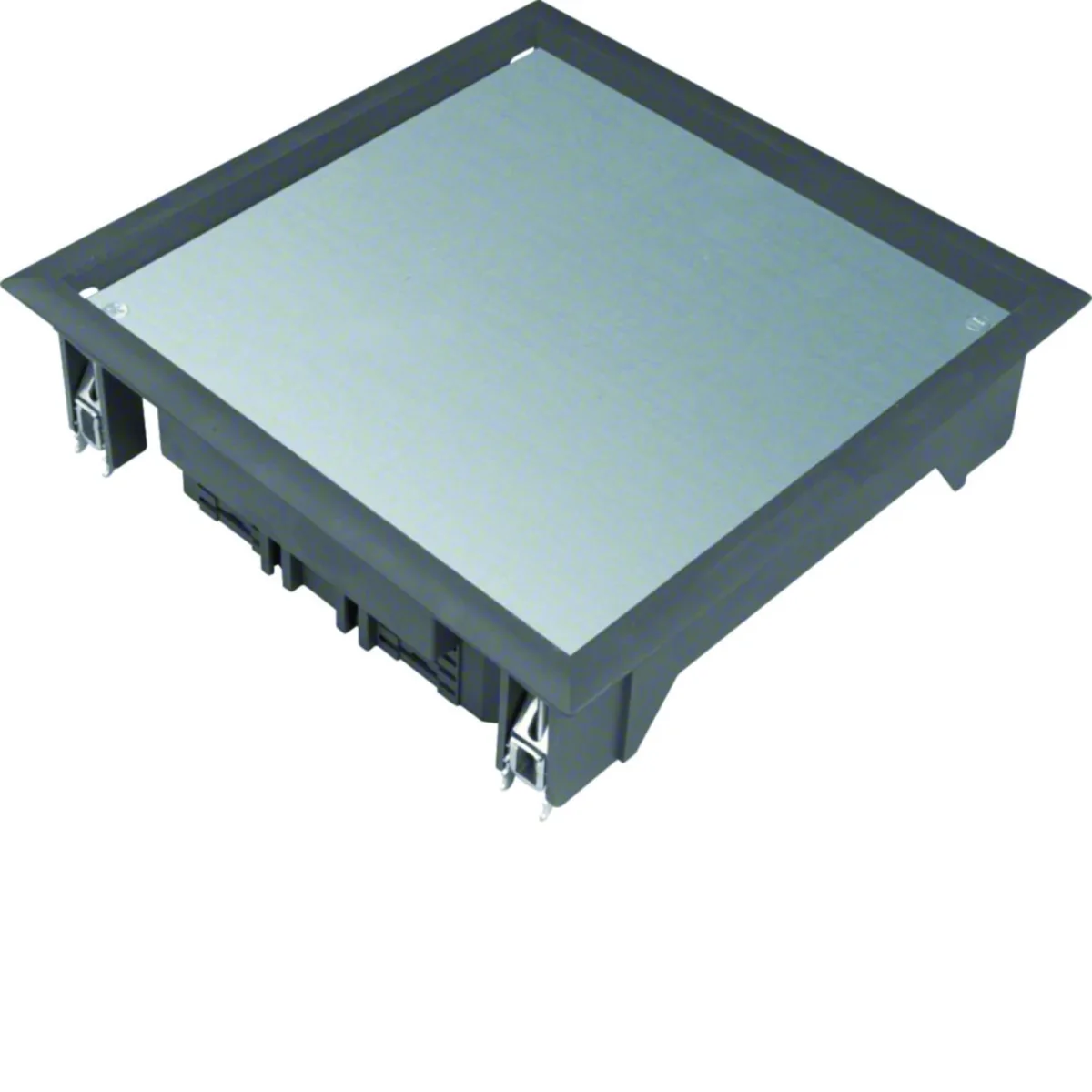

Full lid for dry-cleaned floors, series tehalit.VE-EE:

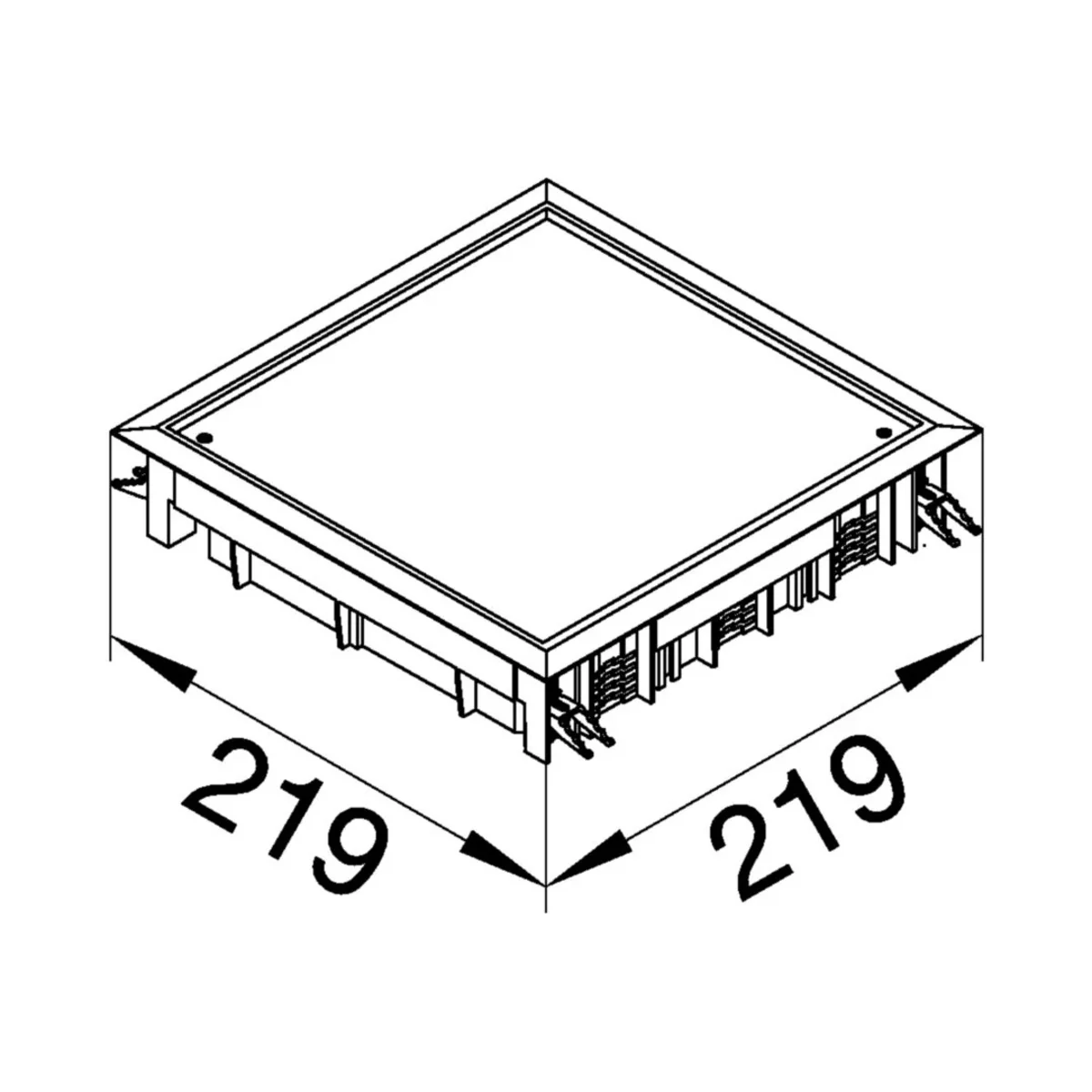

external dimensions: 219 x 219 mm
installation dimensions: 200 x 200 mm
for 12 mm carpet = minimum installation depth 65 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Halogen free

Yes
Material

Polyamide
Minimum installation depth [mm]

62
Mounting dimension (length) [mm]

200
PKWIU

22.23.19.0

Color

Black
Family

TEHALIT.VE-EE
How to use and clean the floor

dry
Mounting dimension (width) [mm]

200

Other technical data

Number of device cups

0
Degree of protection (IP)

IP20
Depth of flooring recess

12 mm
Colour

Black
Suitable for subfloor duct

Yes
Suitable for double floor built-in

Yes
Width outside dimension

219 mm
Length built-in dimension

200 mm
Min. built-in depth

62 mm

Number of socket outlets with protective contact CEE 7/3 (type F)

0
With opening carpeting

Yes
Protective frame carpeting

Yes
RAL-number

9005
Suitable for hollow floor

Yes
Suitable for wet cleaning

No
Długość zewnętrzna

219 mm
Width built-in dimension

200 mm

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	4 pcs.	144 pcs.
Weight (kg)	1,209	1,210	7,510	295,360
Width (m)	0,220	0,220	0,320	0,800
Length (m)	0,065	0,065	0,240	1,590
Depth (m)	0,220	0,220	0,320	1,200
