TEHALIT.VE-EE Full cover plate assembly Q08 294X294 5mm black BDQ08059005

local index:
TKP659TEHA
Catalog No:
BDQ08059005
EAN code:
4012002245200
Manufacturer: TEHALIT
Material: Polyamide
Family: TEHALIT.VE-EE
Minimum installation depth [mm]: 50
Price:
42,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

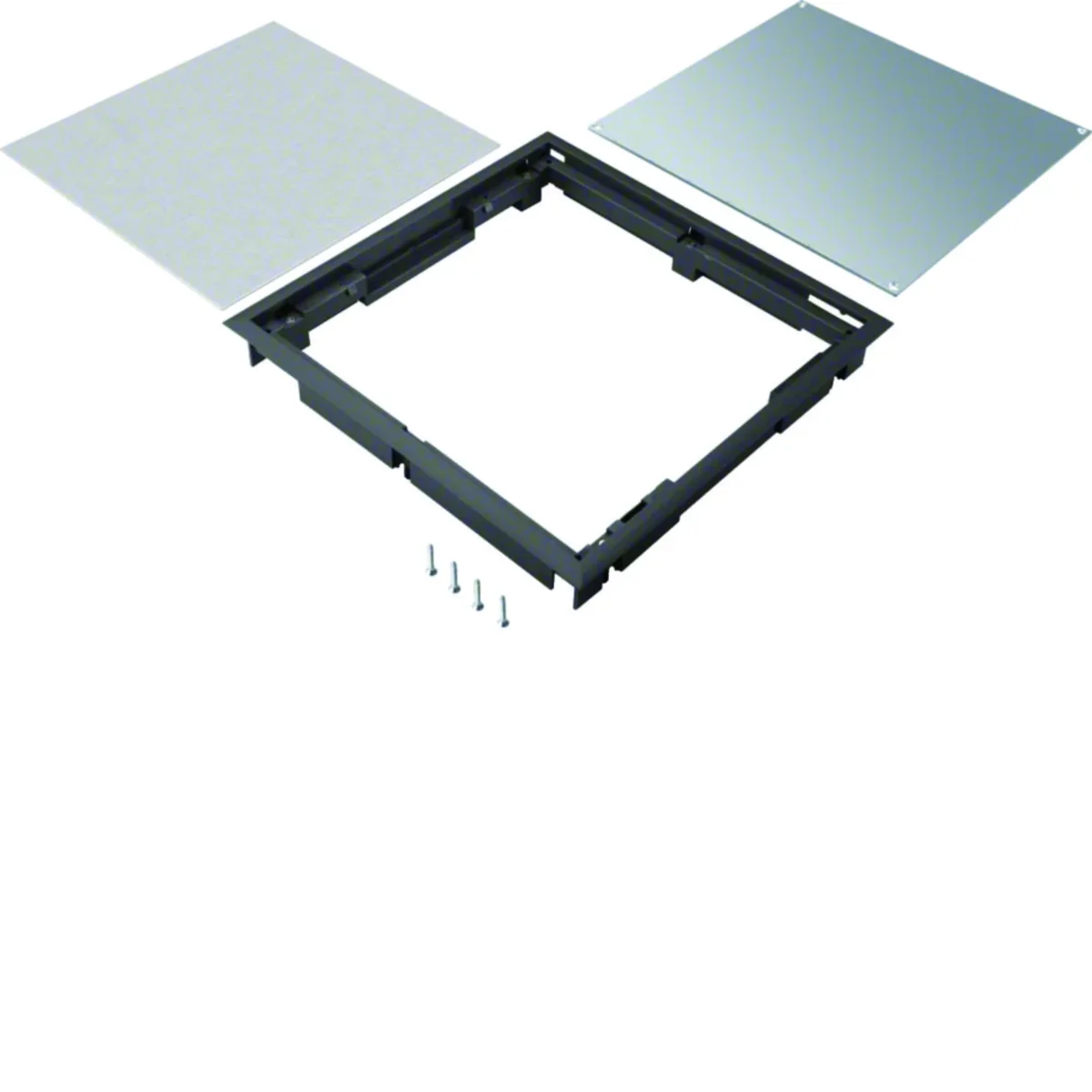

Full cover for shallow installation, for dry-cleaned floors, series tehalit.VE-EE:

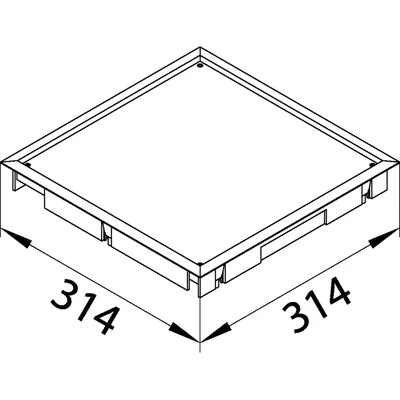

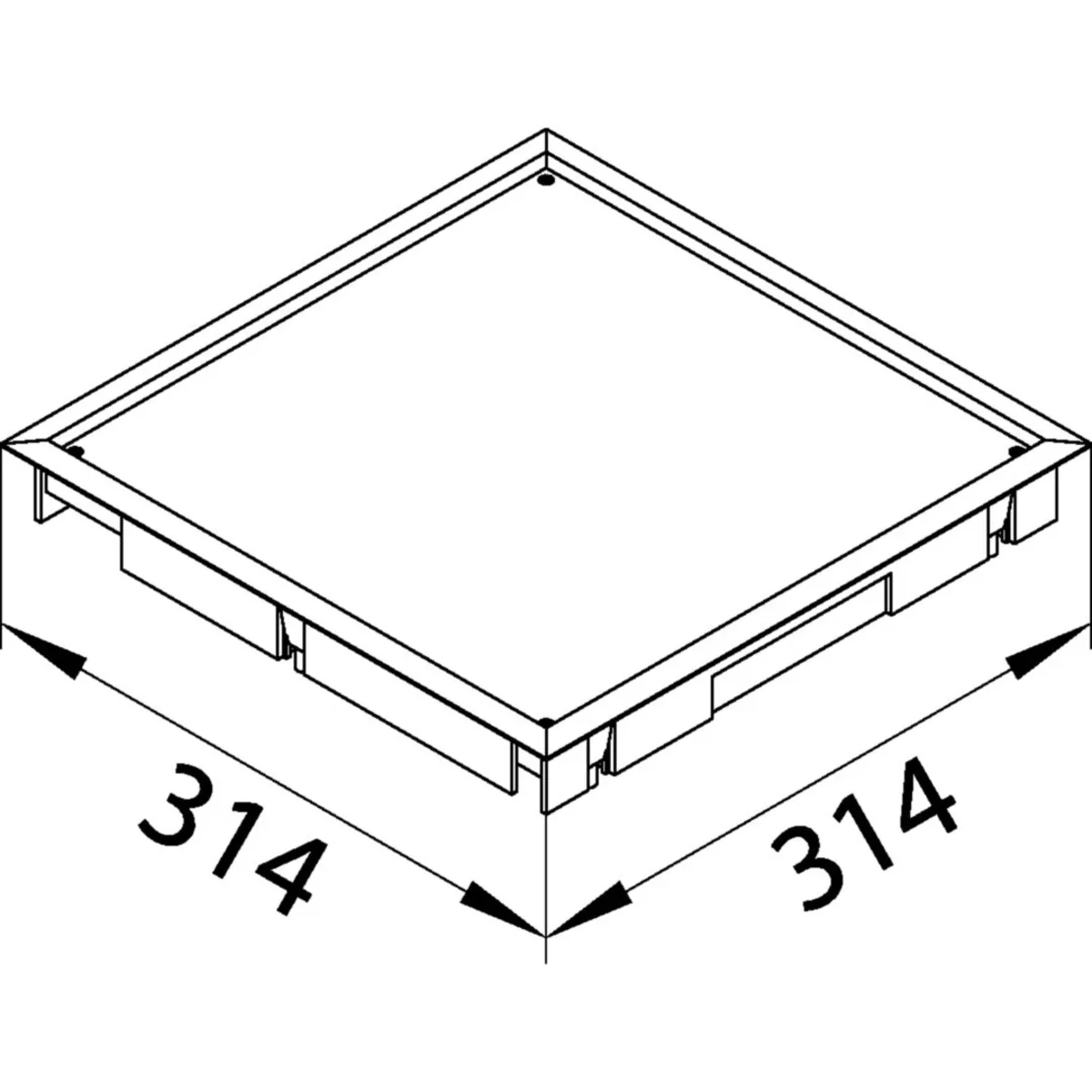

  • external dimensions: 314 x 314 mm
  • installation dimensions: 294 x 294 mm
  • minimum installation depth: 50 mm
  • for floor covering thickness of 5 mm
  • Series characteristics:

    A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Technical data

  • Material
    Polyamide
  • Minimum installation depth [mm]
    50
  • Mounting dimension (length) [mm]
    294
  • PKWIU
    25.99.29.0
  • Family
    TEHALIT.VE-EE
  • How to use and clean the floor
    dry
  • Mounting dimension (width) [mm]
    294

Other technical data

  • Number of device cups
    0
  • Degree of protection (IP)
    IP20
  • Depth of flooring recess
    5 mm
  • Colour
    Black
  • Suitable for subfloor duct
    Yes
  • Suitable for double floor built-in
    Yes
  • Width outside dimension
    314 mm
  • Length built-in dimension
    294 mm
  • Min. built-in depth
    50 mm
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    0
  • With opening carpeting
    Yes
  • Protective frame carpeting
    Yes
  • RAL-number
    9005
  • Suitable for hollow floor
    Yes
  • Suitable for wet cleaning
    No
  • Długość zewnętrzna
    314 mm
  • Width built-in dimension
    294 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 100 pcs.
Weight (kg) 2,872 3,140 337,000
Width (m) 0,330 0,390 0,800
Length (m) 0,050 0,055 1,050
Depth (m) 0,355 0,370 1,200
