TEHALIT.VE-EE Full cover plate assembly Q08 294X294 12mm gray steel BDQ08127011

Name: TEHALIT.VE-EE Full cover plate assembly Q08 294X294 12mm gray steel
Brand: TEHALIT
SKU: TKP660TEHA
Price: 188.31 PLN
Availability: BackOrder

Místní index:

TKP660TEHA

Katalogové číslo.:

BDQ08127011

EAN kód:

4012002245217

TEHALIT.VE-EE Full cover plate assembly Q08 294X294 12mm gray steel

Kliknutím na obrázek jej zvětšíte

Výrobce: TEHALIT

Material: Polyamide

Family: TEHALIT.VE-EE

Minimum installation depth [mm]: 57

Zobrazit celý popis

Cena:

188,31 zł

gross / kusů.

(včetně DPH 23%)

do 4 týdnů

Na zakázku

Množství kusů.

(vícenásobné:

)

Přidat do žádosti o cenovou nabídku

Přidat do schránky

Vytisknout

Dotaz na výrobek

Popis produktu Technické údaje Podrobnosti o výrobci Velkoobjemová balení Soubory ke stažení

Popis produktu

Full cover for shallow installation, for dry-cleaned floors, series tehalit.VE-EE:

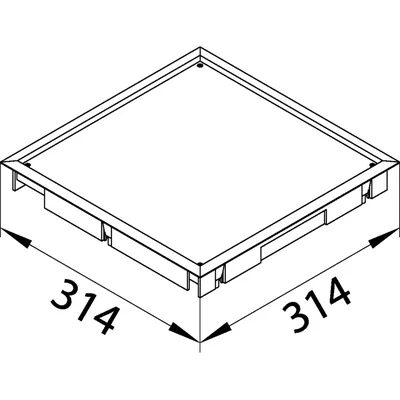

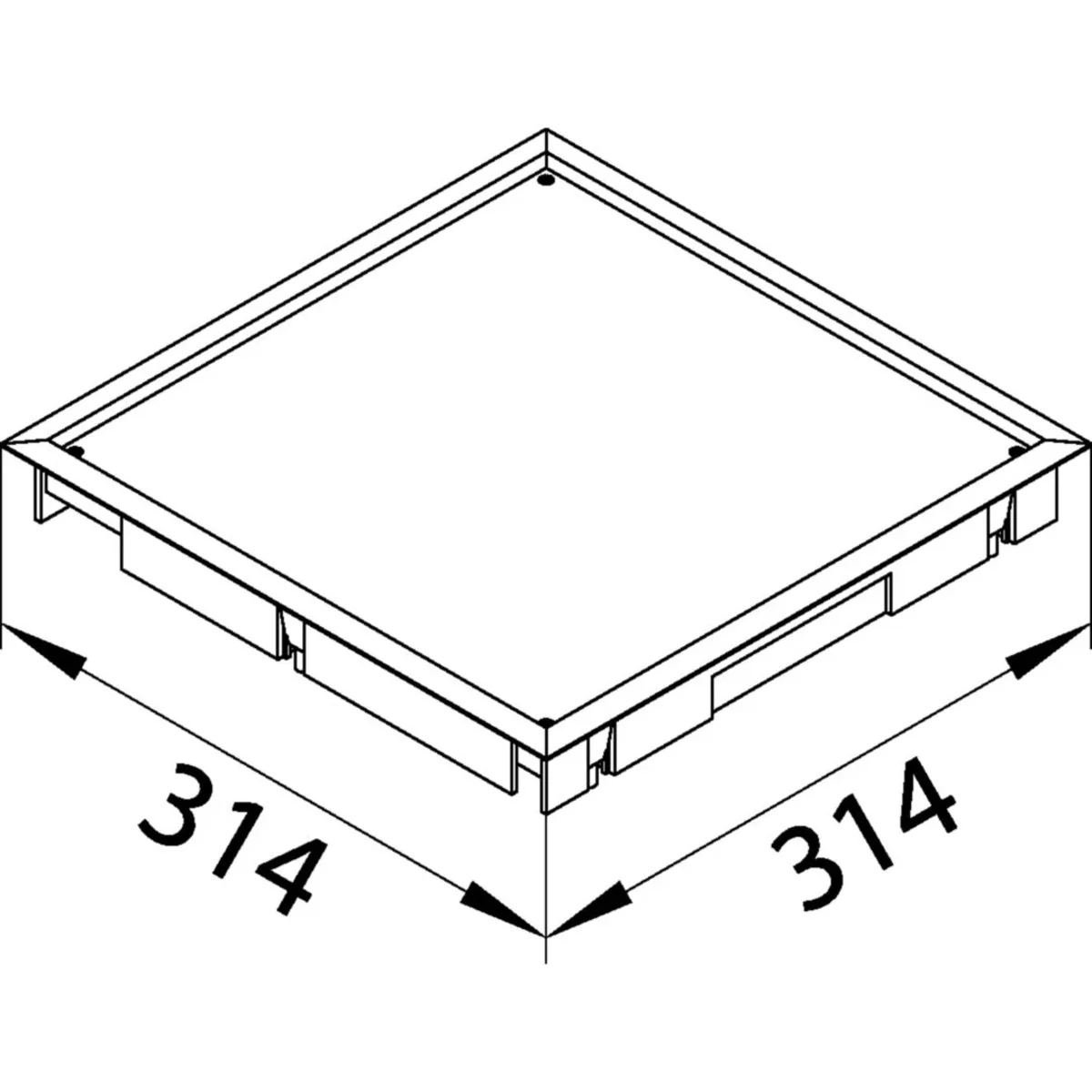

external dimensions: 314 x 314 mm
installation dimensions: 294 x 294 mm
minimum installation depth: 50 mm
for floor covering thickness of 12 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Technické údaje

Material

Polyamide
Minimum installation depth [mm]

57
Mounting dimension (length) [mm]

294
PKWIU

25.99.29.0

Family

TEHALIT.VE-EE
How to use and clean the floor

dry
Mounting dimension (width) [mm]

294

Další technické údaje

Cover model

Other
Number of device cups

0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)

0
With cable outlet in cover

No
Lock control

Tool
Surface protection housing

Other
Obciążenie pionowe na małej powierzchni zgodnie z EN 50085-2-2

1.5 kN
Stopień ochrony (IP) w stanie nieużywanym (wyjście kablowe zamknięte)

IP30
Depth of flooring recess

12 mm
Colour

Grey
Suitable for indoor installation

Yes
Suitable for subfloor duct

Yes
Suitable for double floor built-in

Yes
Suitable for floors in computer rooms

Yes
Length built-in dimension

294 mm
Min. built-in depth

57 mm

Number of inlets

0
Number of socket outlets with protective contact CEE 7/3 (type F)

0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)

0
Lockable cover

Yes
Housing material

Plastic
Material cover

Plastic
Stopień ochrony (IP) w użyciu (wyjście kablowe otwarte)

IP20
With opening carpeting

Yes
Protective frame carpeting

Yes
RAL-number

7011
Suitable for outdoor installation

No
Suitable for hollow floor

Yes
Suitable for concrete installation

Yes
Suitable for wet cleaning

No
Width built-in dimension

294 mm

Podrobnosti o výrobci

Výrobce

Tehalit GmbH
Adresa

67716 Heltersberg Seebergstrasse 37 Niemcy
E-mail

wsparcie.klienta@hager.com

Velkoobjemová balení

Typ obalu	Karton	Paleta	Karton	Paleta
Množství	1 kusů.	100 kusů.	1 kusů.	100 kusů.
Hmotnost (kg)	3,150	340,000	3,150	340,000
Šířka (m)	0,370	0,800	0,370	0,800
Délka (m)	0,050	1,200	0,050	1,200
Hloubka (m)	0,380	1,200	0,380	1,200
