TEHALIT.VE-EE Full cover plate assembly Q08 294X294 12mm black BDQ08129005

Name: TEHALIT.VE-EE Full cover plate assembly Q08 294X294 12mm black
Brand: TEHALIT
SKU: TKP661TEHA
Price: 188.31 PLN
Availability: BackOrder

Lokaler Index:

TKP661TEHA

Katalognummer:

BDQ08129005

EAN-Code:

4012002245224

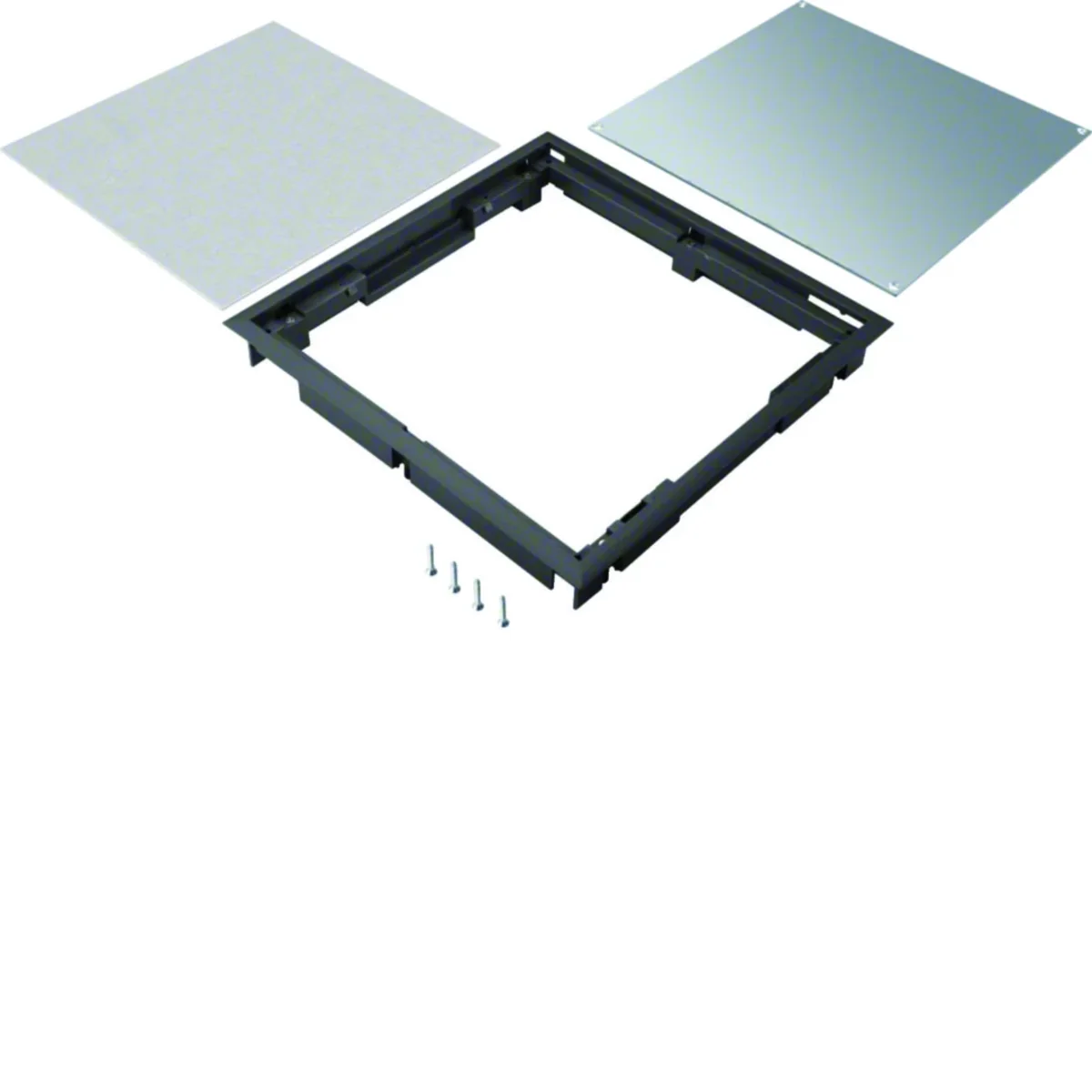

TEHALIT.VE-EE Full cover plate assembly Q08 294X294 12mm black

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: TEHALIT

Material: Polyamide

Family: TEHALIT.VE-EE

Minimum installation depth [mm]: 57

Siehe vollständige Beschreibung

Preis:

188,31 zł

gross / stk.

(inklusive MwSt 23%)

bis zu 4 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Full cover for shallow installation, for dry-cleaned floors, series tehalit.VE-EE:

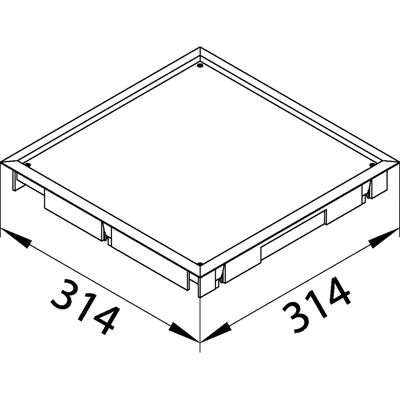

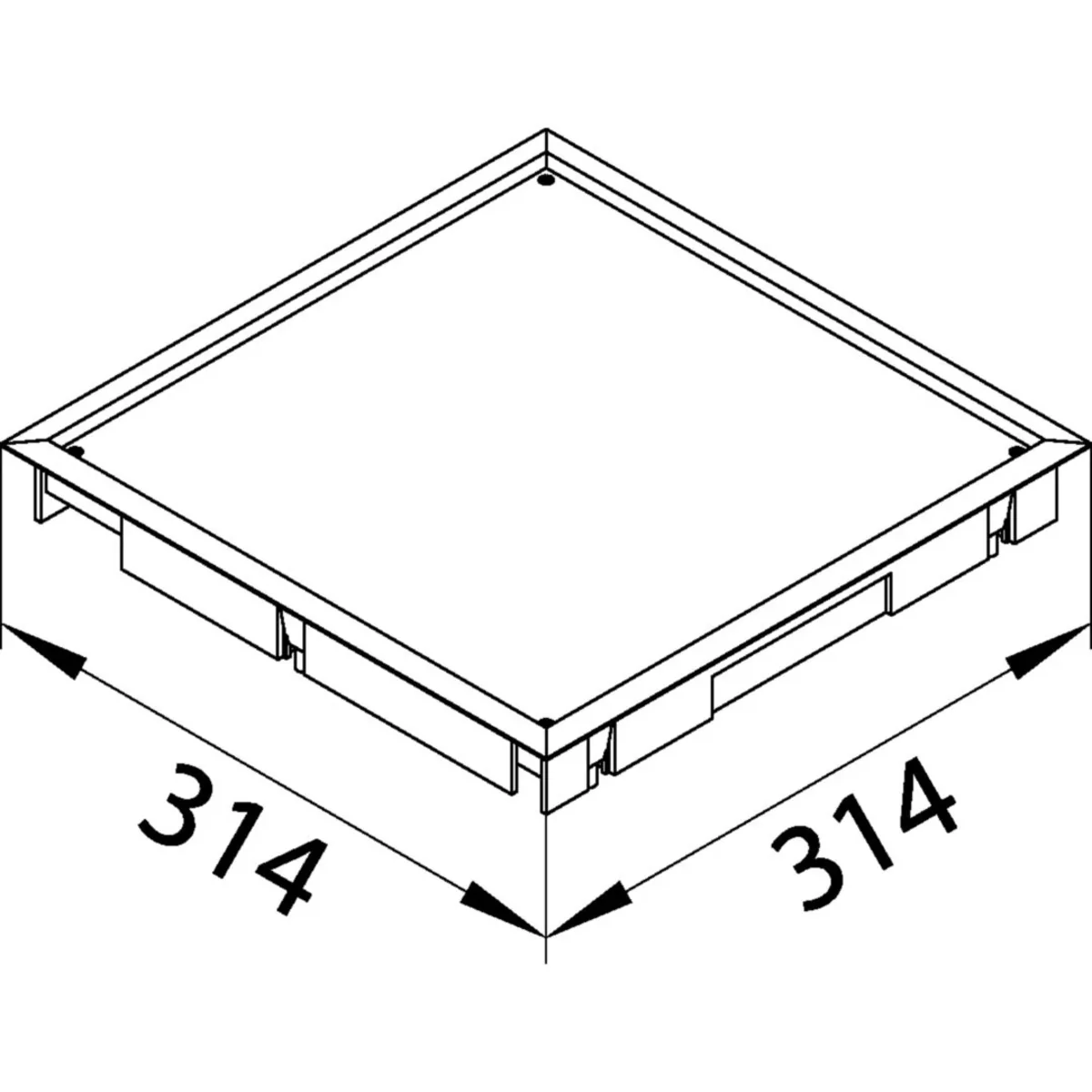

external dimensions: 314 x 314 mm
installation dimensions: 294 x 294 mm
minimum installation depth: 50 mm
for floor covering thickness of 12 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Technische Daten

Material

Polyamide
Minimum installation depth [mm]

57
Mounting dimension (length) [mm]

294
PKWIU

25.99.29.0

Family

TEHALIT.VE-EE
How to use and clean the floor

dry
Mounting dimension (width) [mm]

294

Weitere technische Daten

Cover model

Other
Number of device cups

0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)

0
With cable outlet in cover

No
Lock control

Tool
Surface protection housing

Other
Obciążenie pionowe na małej powierzchni zgodnie z EN 50085-2-2

1.5 kN
Stopień ochrony (IP) w stanie nieużywanym (wyjście kablowe zamknięte)

IP30
Depth of flooring recess

12 mm
Colour

Black
Suitable for indoor installation

Yes
Suitable for subfloor duct

Yes
Suitable for double floor built-in

Yes
Suitable for floors in computer rooms

Yes
Length built-in dimension

294 mm
Min. built-in depth

57 mm

Number of inlets

0
Number of socket outlets with protective contact CEE 7/3 (type F)

0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)

0
Lockable cover

Yes
Housing material

Plastic
Material cover

Plastic
Stopień ochrony (IP) w użyciu (wyjście kablowe otwarte)

IP20
With opening carpeting

Yes
Protective frame carpeting

Yes
RAL-number

9005
Suitable for outdoor installation

No
Suitable for hollow floor

Yes
Suitable for concrete installation

Yes
Suitable for wet cleaning

No
Width built-in dimension

294 mm

Hersteller-Details

Hersteller

Tehalit GmbH
Adresse

67716 Heltersberg Seebergstrasse 37 Niemcy
E-Mail

wsparcie.klienta@hager.com

Großpackungen

Eine Art Paket	Karton	Paleta	Karton	Paleta
Menge	1 stk.	100 stk.	1 stk.	100 stk.
Gewicht (kg)	3,160	341,000	3,160	341,000
Breite (m)	0,360	0,800	0,360	0,800
Länge (m)	0,060	1,170	0,060	1,170
Tiefe (m)	0,370	1,200	0,370	1,200
