TEHALIT.VE-EE Full cover plate assembly E04 147X247 8mm gray steel BDE04087011

Name: TEHALIT.VE-EE Full cover plate assembly E04 147X247 8mm gray steel
Brand: TEHALIT
SKU: TKP498TEHA
Price: 21.50 PLN

local index:

TKP498TEHA

Catalog No:

BDE04087011

EAN code:

4012002245170

TEHALIT.VE-EE Full cover plate assembly E04 147X247 8mm gray steel

Click on the photo to enlarge

Manufacturer: TEHALIT

Material: Polyamide

Family: TEHALIT.VE-EE

Minimum installation depth [mm]: 53

See full description

Price:

21,50 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

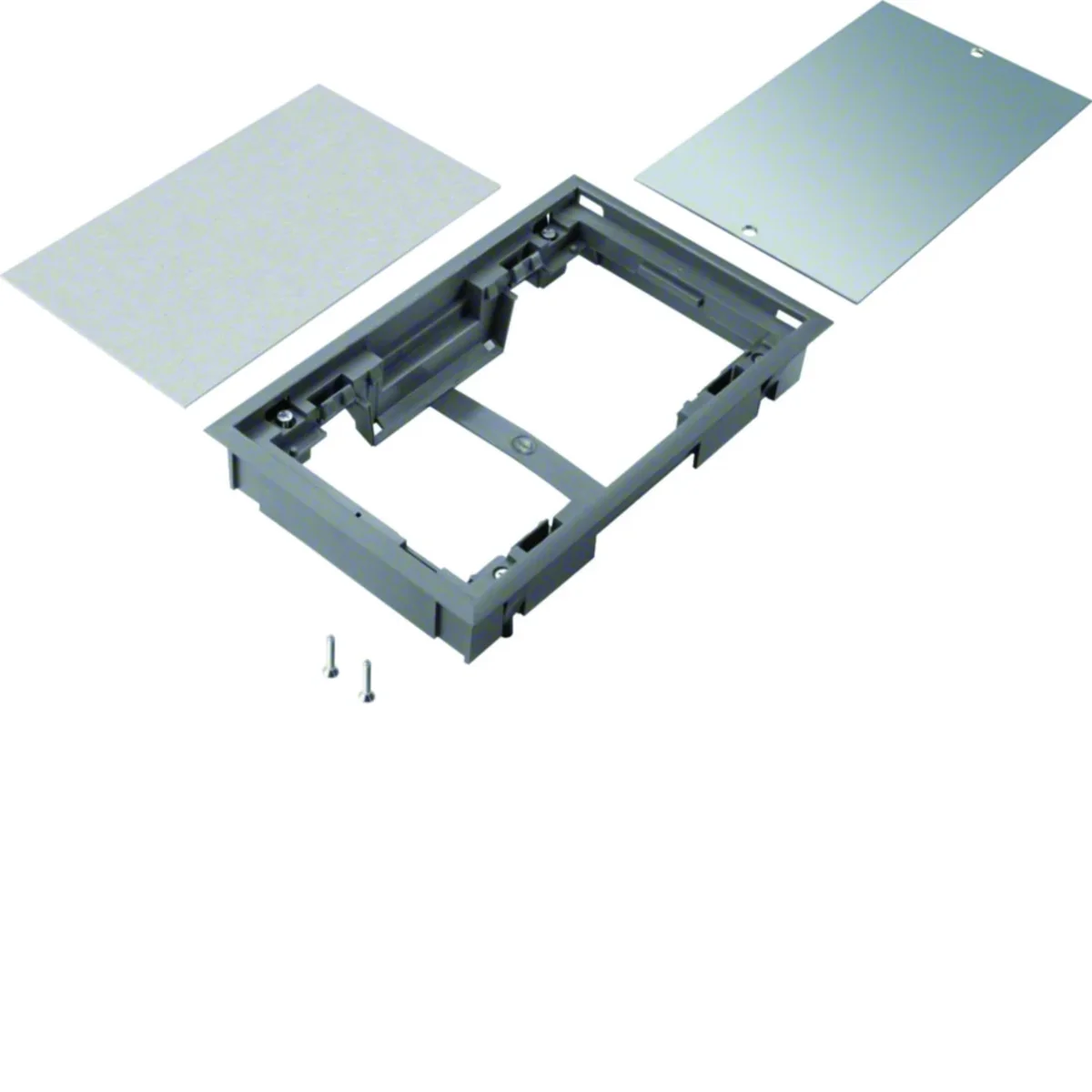

Full cover for shallow installation, for dry-cleaned floors, series tehalit.VE-EE:

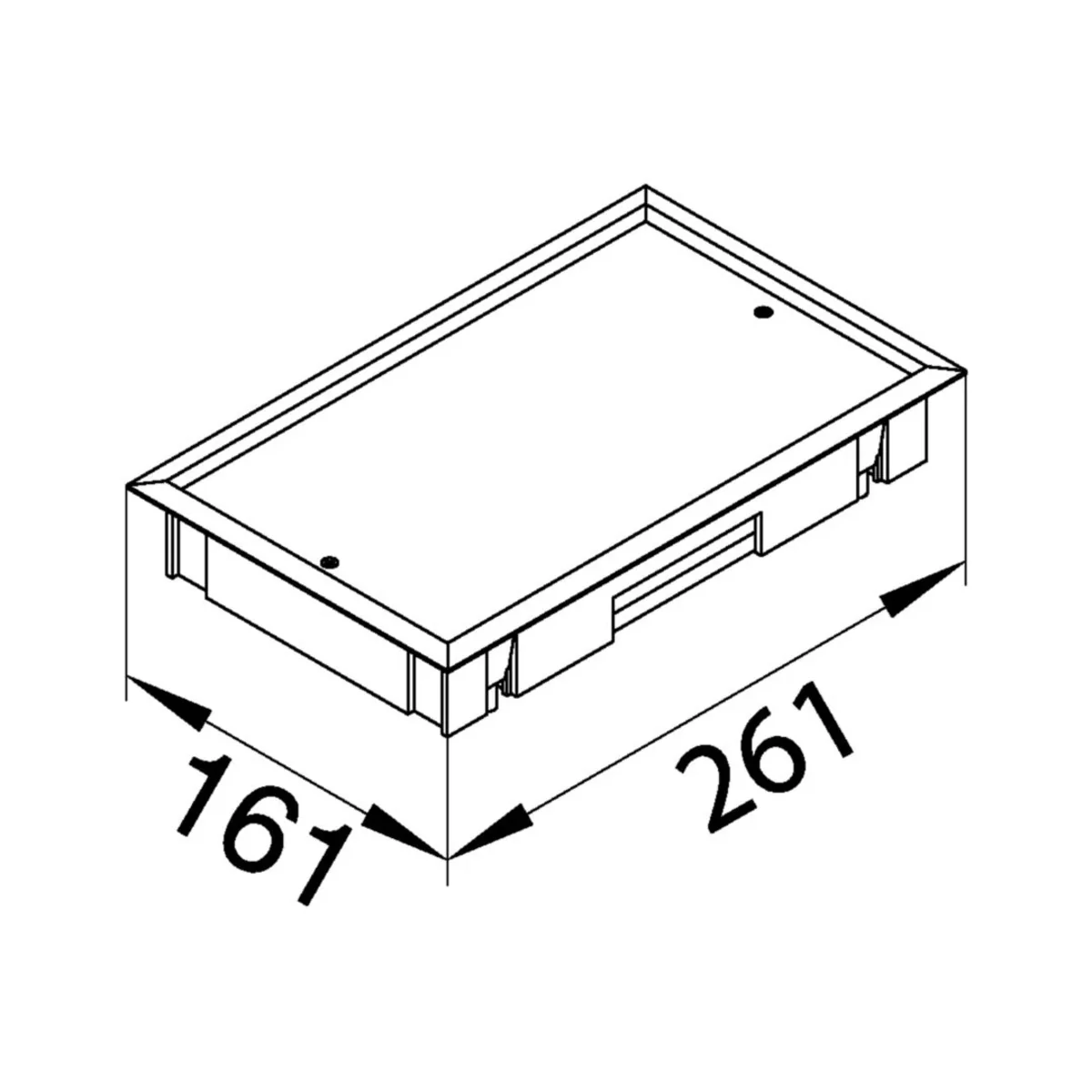

external dimensions: 261 x 161 mm
installation dimensions: 247 x 147 mm
minimum installation depth: 50 mm
for floor covering thickness of 8 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Technical data

Material

Polyamide
Minimum installation depth [mm]

53
Mounting dimension (length) [mm]

147
PKWIU

25.99.29.0

Family

TEHALIT.VE-EE
How to use and clean the floor

dry
Mounting dimension (width) [mm]

247

Other technical data

Number of device cups

0
Degree of protection (IP)

IP20
Depth of flooring recess

8 mm
Colour

Grey
Suitable for subfloor duct

Yes
Suitable for double floor built-in

Yes
Width outside dimension

161 mm
Length built-in dimension

147 mm
Min. built-in depth

53 mm

Number of socket outlets with protective contact CEE 7/3 (type F)

0
With opening carpeting

Yes
Protective frame carpeting

Yes
RAL-number

7011
Suitable for hollow floor

Yes
Suitable for wet cleaning

No
Długość zewnętrzna

161 mm
Width built-in dimension

247 mm

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	60 pcs.
Weight (kg)	0,949	1,175	95,500
Width (m)	0,261	0,260	0,800
Length (m)	0,062	0,080	1,040
Depth (m)	0,161	0,300	1,200
