TEHALIT.VE-EE Full cover plate assembly E04 147X247 8mm black BDE04089005

Name: TEHALIT.VE-EE Full cover plate assembly E04 147X247 8mm black
Brand: TEHALIT
SKU: TKP657TEHA
Price: 95.77 PLN
Availability: BackOrder

Index local:

TKP657TEHA

Numéro de catalogue:

BDE04089005

Code EAN:

4012002245187

TEHALIT.VE-EE Full cover plate assembly E04 147X247 8mm black

Cliquer sur la photo pour l'agrandir

Producteur: TEHALIT

Material: Polyamide

Family: TEHALIT.VE-EE

Minimum installation depth [mm]: 53

Voir la description complète

Prix:

95,77 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

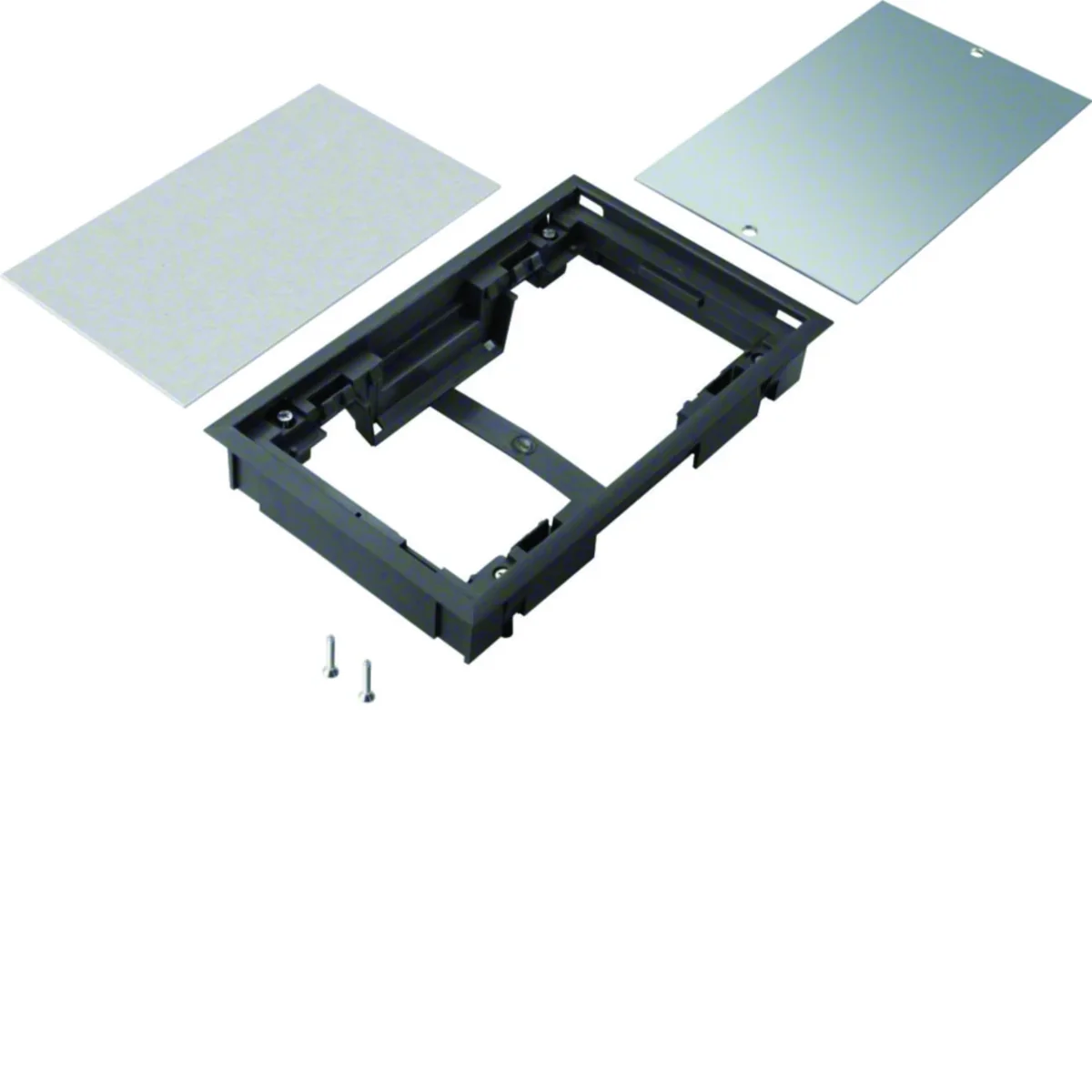

Full cover for shallow installation, for dry-cleaned floors, series tehalit.VE-EE:

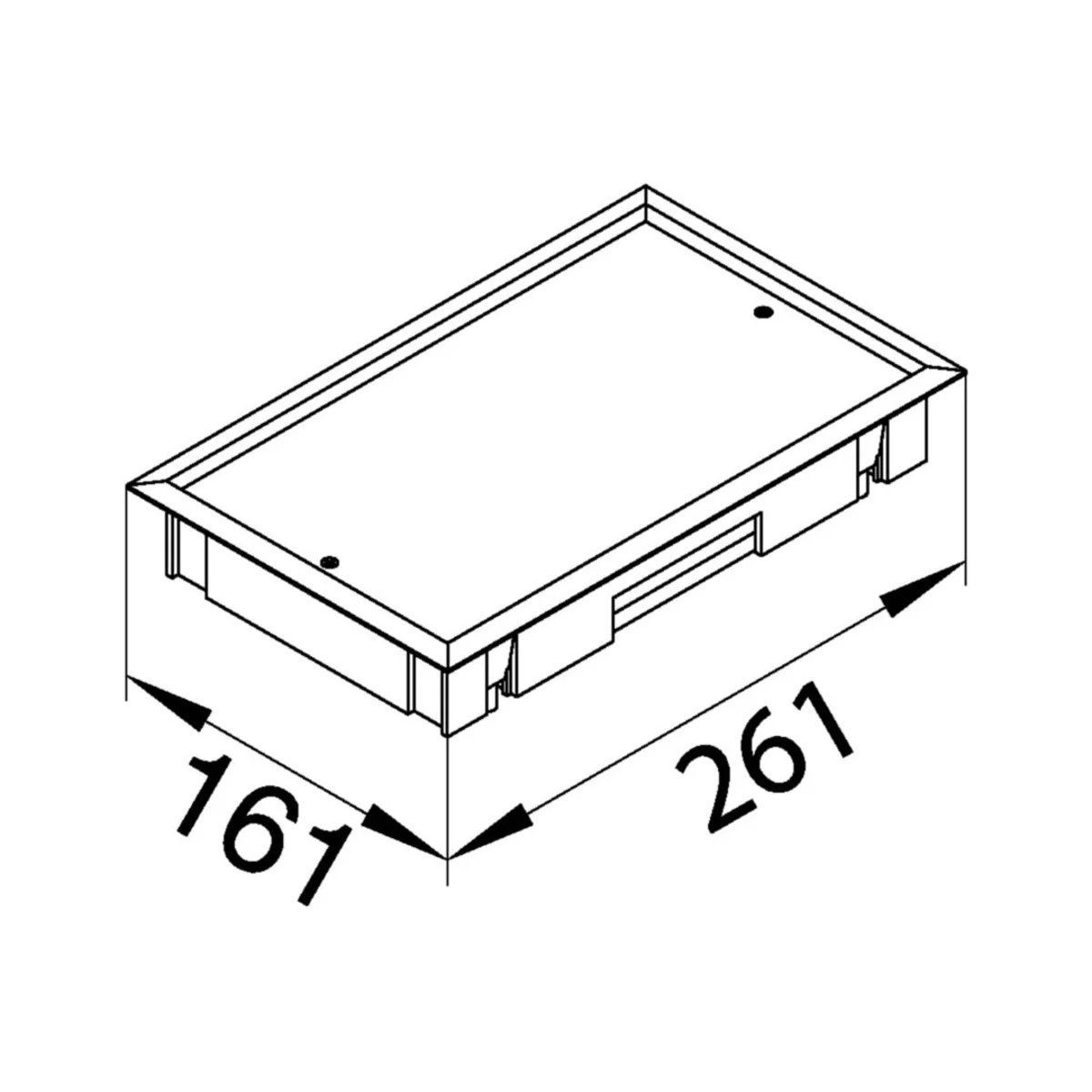

external dimensions: 261 x 161 mm
installation dimensions: 247 x 147 mm
minimum installation depth: 50 mm
for floor covering thickness of 8 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Données techniques

Material

Polyamide
Minimum installation depth [mm]

53
Mounting dimension (length) [mm]

147
PKWIU

25.99.29.0

Family

TEHALIT.VE-EE
How to use and clean the floor

dry
Mounting dimension (width) [mm]

247

Autres données techniques

Cover model

Other
Number of device cups

0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)

0
With cable outlet in cover

No
Lock control

Tool
Surface protection housing

Other
Obciążenie pionowe na małej powierzchni zgodnie z EN 50085-2-2

1.5 kN
Stopień ochrony (IP) w stanie nieużywanym (wyjście kablowe zamknięte)

IP30
Depth of flooring recess

8 mm
Colour

Black
Suitable for indoor installation

Yes
Suitable for subfloor duct

Yes
Suitable for double floor built-in

Yes
Suitable for floors in computer rooms

Yes
Length built-in dimension

147 mm
Min. built-in depth

53 mm

Number of inlets

0
Number of socket outlets with protective contact CEE 7/3 (type F)

0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)

0
Lockable cover

Yes
Housing material

Plastic
Material cover

Plastic
Stopień ochrony (IP) w użyciu (wyjście kablowe otwarte)

IP20
With opening carpeting

Yes
Protective frame carpeting

Yes
RAL-number

9005
Suitable for outdoor installation

No
Suitable for hollow floor

Yes
Suitable for concrete installation

Yes
Suitable for wet cleaning

No
Width built-in dimension

247 mm
