TEHALIT.VE-EE Full cover plate assembly E04 147X247 5mm gray steel BDE04057011

Name: TEHALIT.VE-EE Full cover plate assembly E04 147X247 5mm gray steel
Brand: TEHALIT
SKU: TKP475TEHA
Price: 95.77 PLN
Availability: BackOrder

Índice local:

TKP475TEHA

Número de catálogo:

BDE04057011

Código EAN:

4012002245156

TEHALIT.VE-EE Full cover plate assembly E04 147X247 5mm gray steel

Haga clic en la foto para ampliar

Fabricante: TEHALIT

Material: Polyamide

Family: TEHALIT.VE-EE

Minimum installation depth [mm]: 50

Ver descripción completa

Precio:

95,77 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

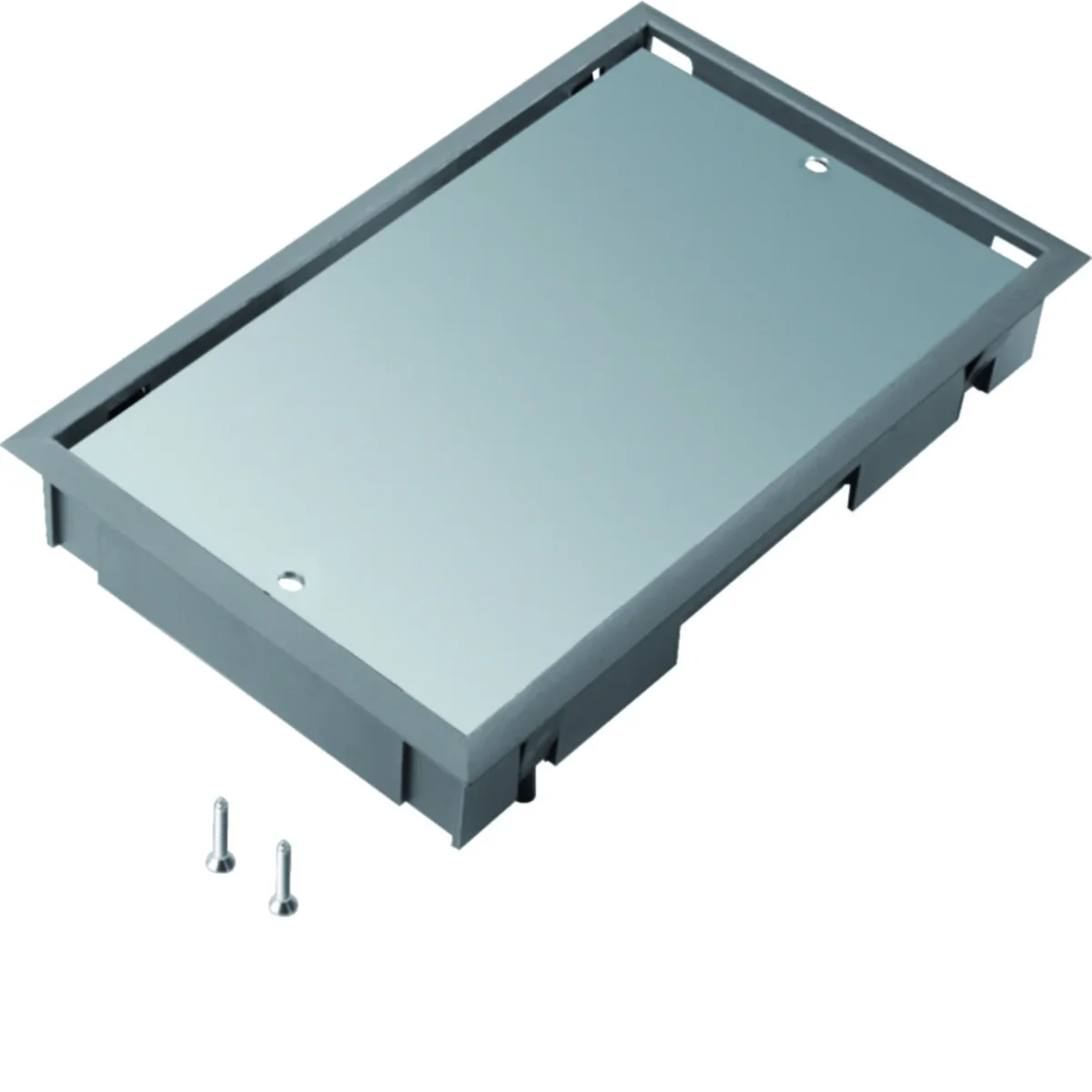

Full cover for shallow installation, for dry-cleaned floors, series tehalit.VE-EE:

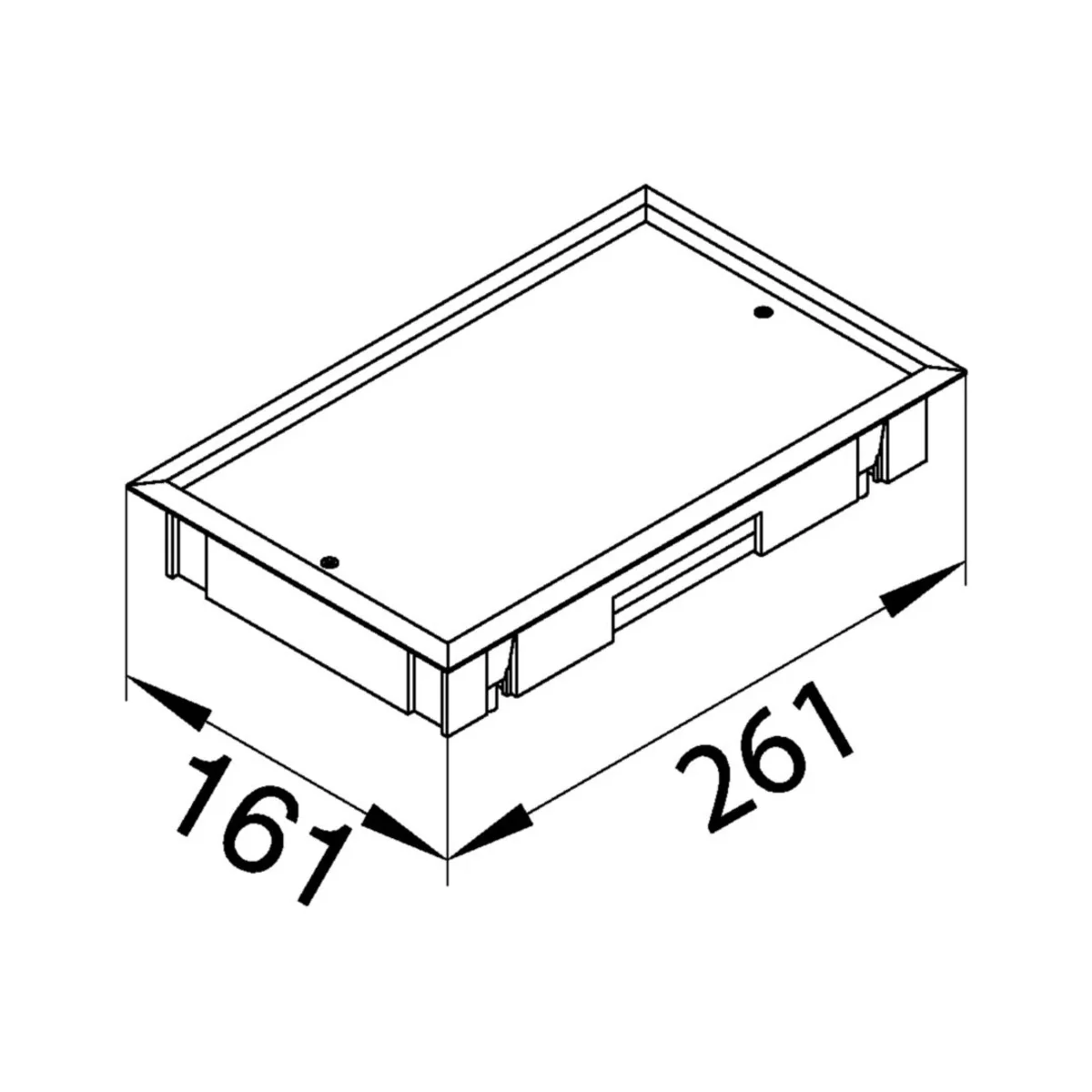

external dimensions: 261 x 161 mm
installation dimensions: 247 x 147 mm
minimum installation depth: 50 mm
for floor covering thickness of 5 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Datos técnicos

Material

Polyamide
Minimum installation depth [mm]

50
Mounting dimension (length) [mm]

147
PKWIU

25.99.29.0

Family

TEHALIT.VE-EE
How to use and clean the floor

dry
Mounting dimension (width) [mm]

247

Otros datos técnicos

Cover model

Other
Number of device cups

0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)

0
With cable outlet in cover

No
Lock control

Tool
Surface protection housing

Other
Obciążenie pionowe na małej powierzchni zgodnie z EN 50085-2-2

1.5 kN
Stopień ochrony (IP) w stanie nieużywanym (wyjście kablowe zamknięte)

IP30
Depth of flooring recess

5 mm
Colour

Grey
Suitable for indoor installation

Yes
Suitable for subfloor duct

Yes
Suitable for double floor built-in

Yes
Suitable for floors in computer rooms

Yes
Length built-in dimension

147 mm
Min. built-in depth

50 mm

Number of inlets

0
Number of socket outlets with protective contact CEE 7/3 (type F)

0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)

0
Lockable cover

Yes
Housing material

Plastic
Material cover

Plastic
Stopień ochrony (IP) w użyciu (wyjście kablowe otwarte)

IP20
With opening carpeting

Yes
Protective frame carpeting

Yes
RAL-number

7011
Suitable for outdoor installation

No
Suitable for hollow floor

Yes
Suitable for concrete installation

Yes
Suitable for wet cleaning

No
Width built-in dimension

247 mm

Detalles del fabricante

Fabricante

Tehalit GmbH
Dirección

67716 Heltersberg Seebergstrasse 37 Niemcy
Email

wsparcie.klienta@hager.com

Empaquetado a granel

una especie de paquete	Karton	Paleta	Karton	Paleta
Cantidad	1 uds.	100 uds.	1 uds.	100 uds.
Peso (kg)	1,160	141,000	1,160	141,000
Ancho (m)	0,300	0,800	0,300	0,800
Longitud (m)	0,060	1,040	0,060	1,040
Profundidad (m)	0,310	1,200	0,310	1,200
