TEHALIT.UK Reinforced steel mounting cover size 3 Q06 UDM3200SLQ06

local index:
TKM551TEHA
Catalog No:
UDM3200SLQ06
EAN code:
4012002238318
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 360
Thickness [mm]: 4
Price:
120,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

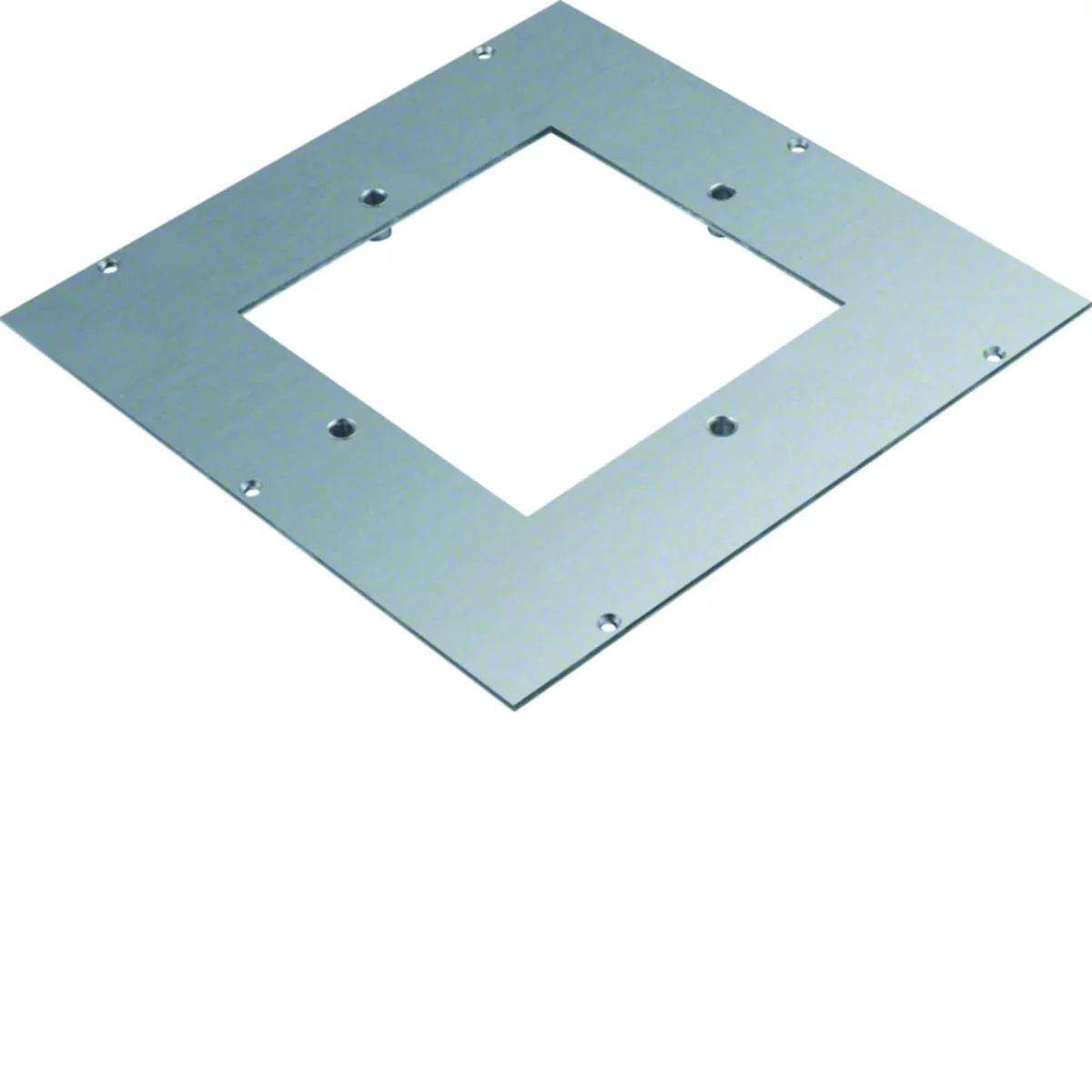

Reinforced steel mounting cover, size 3, with Q06 mounting hole, dimensions 200x200mm, tehalit.UK series:

  • for installation of hinged covers or full covers, for the construction of installation columns or as a blank cover
  • material thickness: 4 mm
  • required for a 20 kN system

Series characteristics:

Concrete screeds require flooded floor channels and floor boxes. The tehalit.UK floor system can be used for most types of screeds. tehalit.UK channel covers are removable, making cable and wire installation quick and easy. This saves you the trouble of dragging wires and cables, especially low-voltage wires.

Technical data

  • Halogen free
    Yes
  • Thickness [mm]
    4
  • Material
    Galvanized steel sheet
  • Width [mm]
    360
  • Dimension B [mm]
    200
  • How to use and clean the floor
    dry
  • Length [mm]
    360
  • Color
    Silver
  • Family
    TEHALIT.UK
  • Dimension A [mm]
    200
  • Accurate color
    galvanized
  • PKWIU
    25.99.29.0

Other technical data

  • Width
    360 mm
  • Mounting opening
    Square
  • Floor maintenance
    Dry
  • Material
    Steel
  • Length
    360 mm
  • Cover mounting opening
    Yes
  • Material thickness
    4 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 75 pcs.
Weight (kg) 2,830 3,126 259,450
Width (m) 0,360 0,390 0,800
Length (m) 0,050 0,055 1,080
Depth (m) 0,360 0,390 1,200
