TEHALIT.UK End cap 190x48mm steel UKE190480

Name: TEHALIT.UK End cap 190x48mm steel
Brand: TEHALIT
SKU: TAK3N2TEHA
Price: 10.43 PLN

local index:

TAK3N2TEHA

Catalog No:

UKE190480

EAN code:

4012002238769

Click on the photo to enlarge

Manufacturer: TEHALIT

Halogen free: Yes

Length [mm]: 1

Color: Silver

See full description

Price:

10,43 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

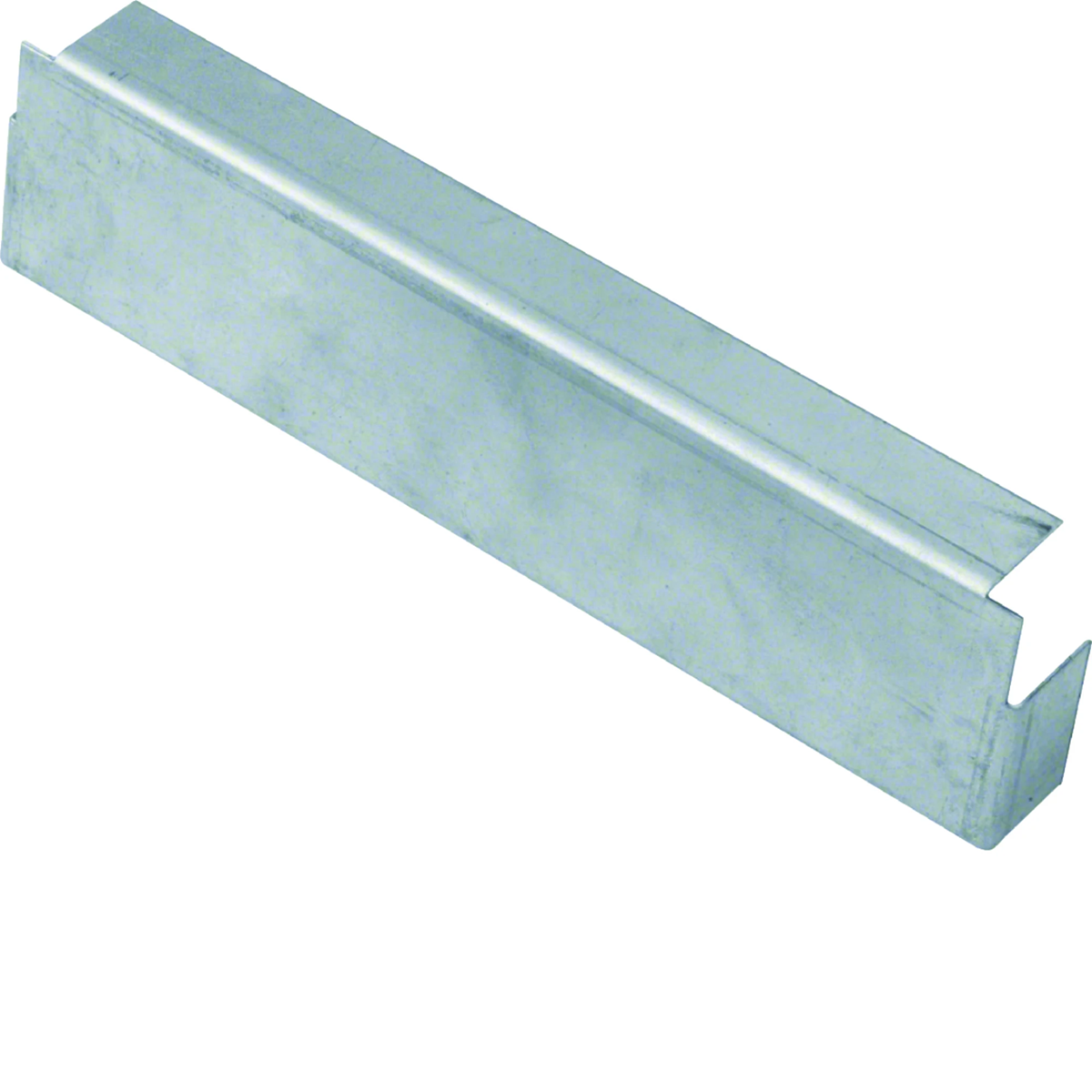

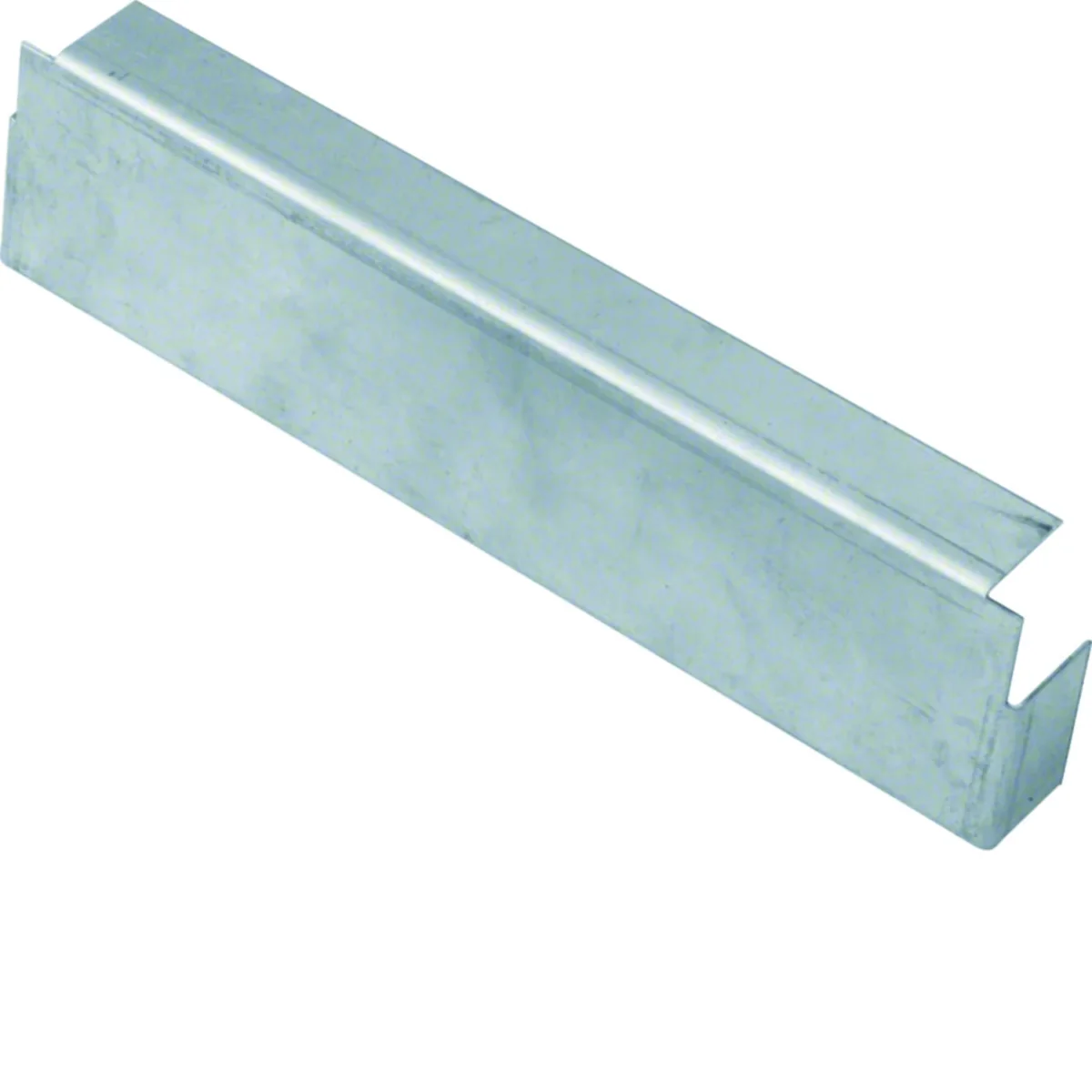

Steel tip, from the tehalit.UK series.

Series characteristics:

Concrete screeds require flooded floor channels and floor boxes. The tehalit.UK floor system can be used for most types of screeds. tehalit.UK channel covers are removable, making cable and wire installation quick and easy. This saves you the trouble of dragging wires and cables, especially low-voltage wires.

Technical data

Halogen free

Yes
Color

Silver
Family

TEHALIT.UK

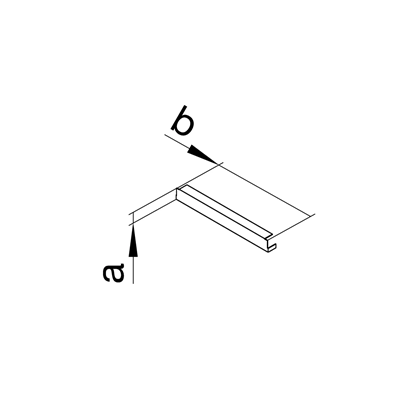

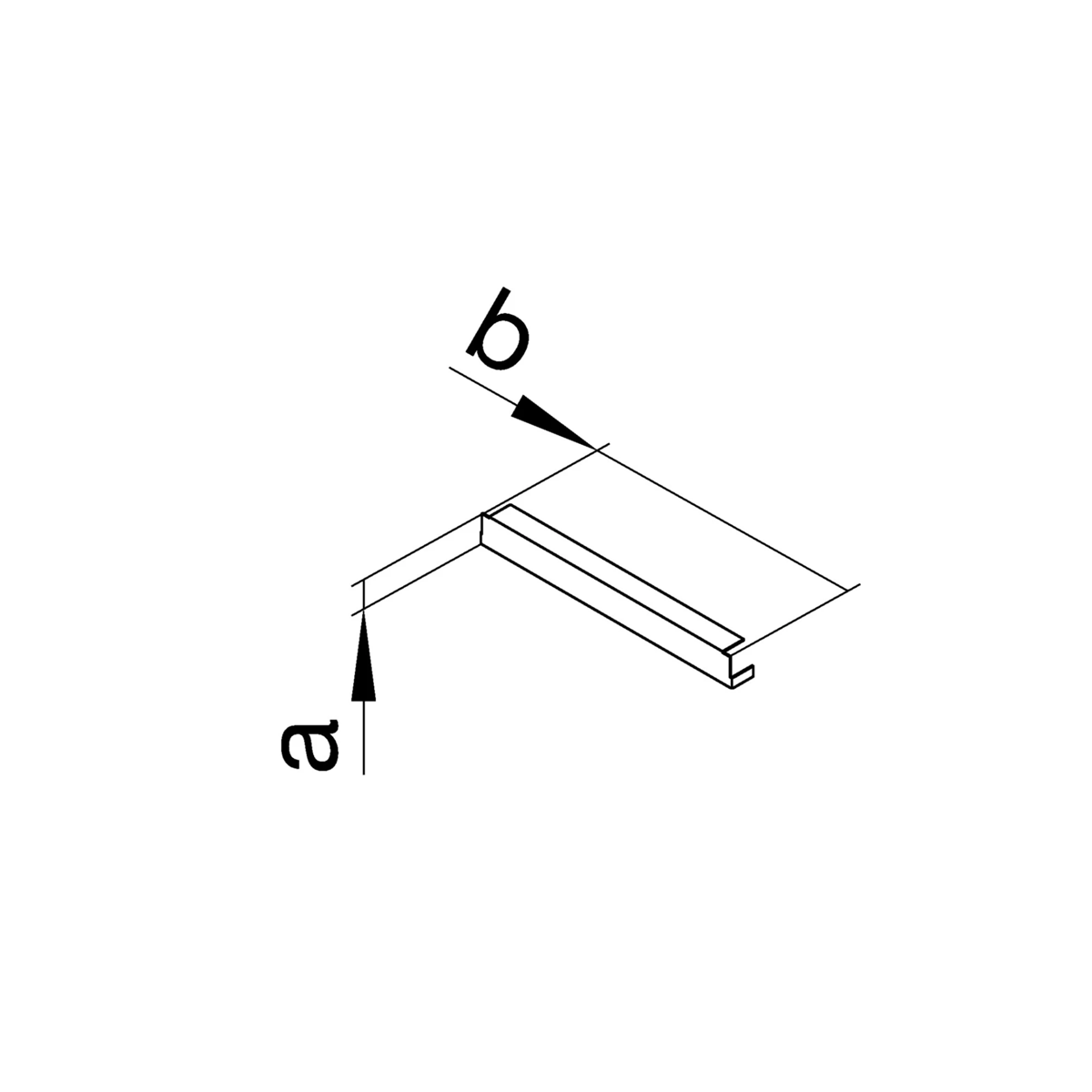

Dimension A [mm]

48
Height [mm]

48
Accurate color

galvanized

Length [mm]

1
Material

Galvanized steel sheet
Width [mm]

190
Dimension B [mm]

190
Surface finish

Galvanized
PKWIU

25.99.29.0

Other technical data

Width

190 mm
Suitable for subfloor duct overhead open

No
Suitable for subfloor duct overhead closed

No

Height

48 mm
Suitable for subfloor duct countersunk (closed)

Yes

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	20 pcs.	600 pcs.
Weight (kg)	0,089	1,800	79,000
Width (m)	0,020	0,250	0,800
Length (m)	0,047	0,140	0,850
Depth (m)	0,188	0,420	1,200
