Name: TEHALIT.UK 2-chamber vertical corner 340x48mm steel
Brand: TEHALIT
SKU: TAK3R5TEHA
Price: 59.99 PLN

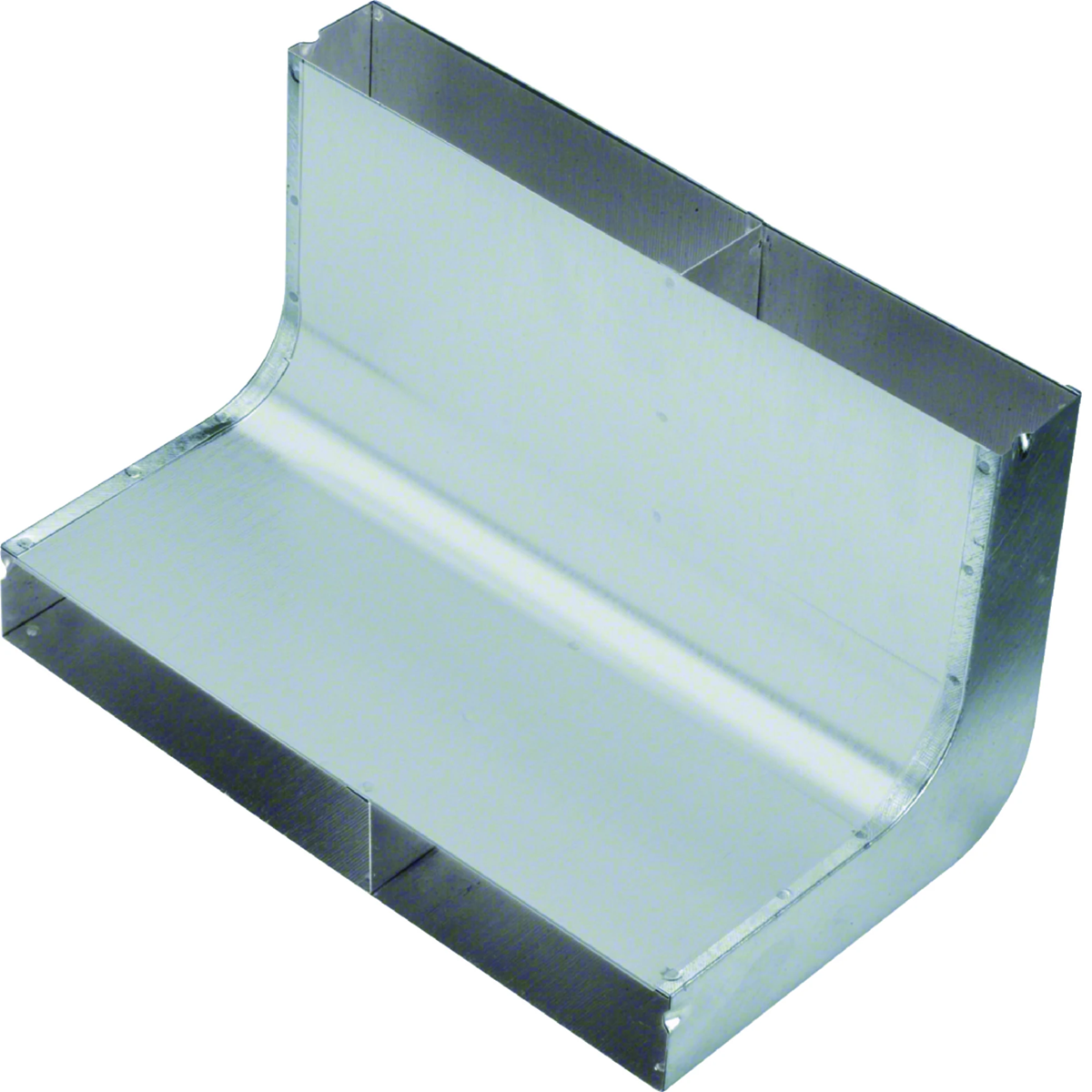

Vertical two-chamber corner from the tehalit.UK series.

Series characteristics:

Concrete screeds require the use of flooded floor channels and floor boxes. The tehalit.UK floor system can be used for most types of screeds. tehalit.UK channel covers are removable, making cable and wire installation quick and easy. This saves you the trouble of dragging wires and cables, especially low-voltage wires.

Halogen free

Yes
Color

Silver
Family

TEHALIT.UK

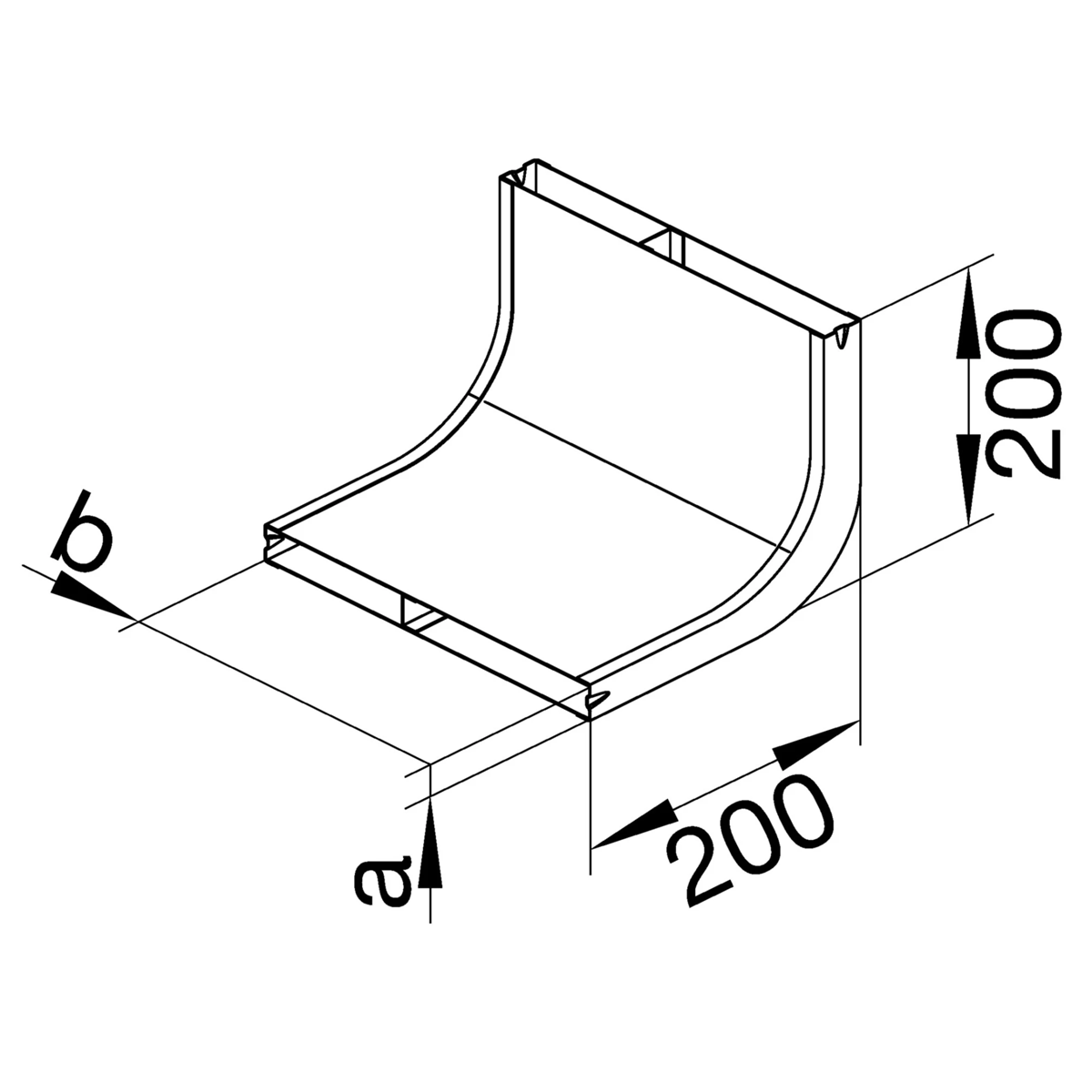

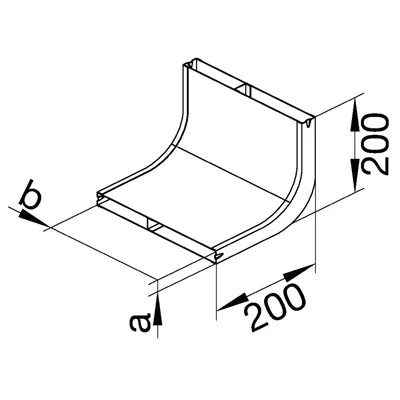

Dimension A [mm]

48
Height [mm]

48
Accurate color

galvanized

Length [mm]

200
Material

Galvanized steel sheet
Width [mm]

340
Dimension B [mm]

340
Surface finish

Galvanized
PKWIU

25.99.29.0

Other technical data

Width

340 mm
Number of compartments

2
Surface protection

Galvanized
Suitable for subfloor duct countersunk (closed)

Yes

Height

48 mm
Material

Steel
Suitable for subfloor duct overhead closed

No

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	10 pcs.	90 pcs.
Weight (kg)	1,740	1,858	17,600	176,600
Width (m)	0,340	0,200	0,430	0,800
Length (m)	0,200	0,340	0,420	1,020
Depth (m)	0,200	0,200	0,800	1,200
