TEHALIT.SPW Wieland flat floor distributor with 6 black sockets SPWG069005

local index:
TAK3K7TEHA
Catalog No:
SPWG069005
EAN code:
4012002244050
Manufacturer: TEHALIT
Halogen free: Yes

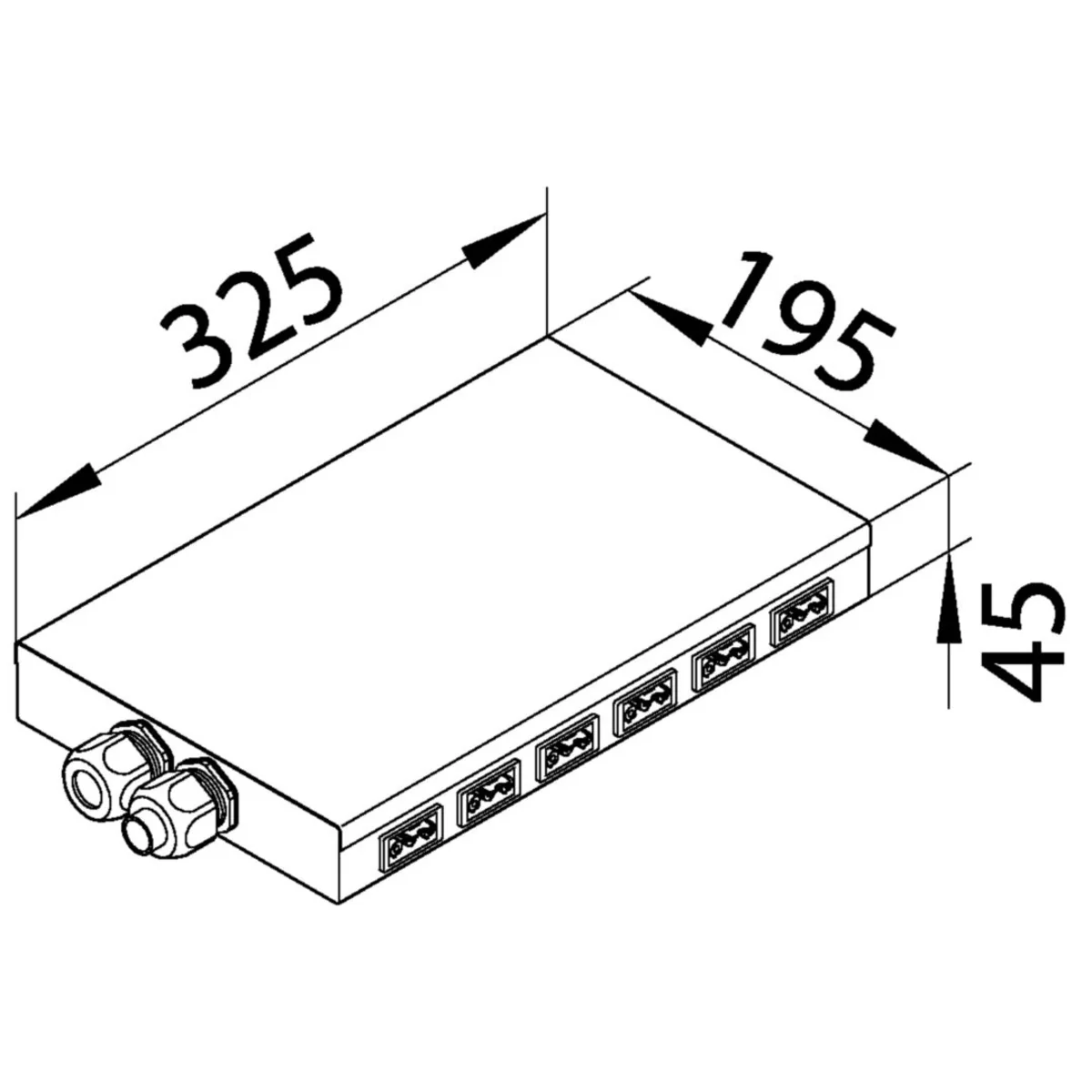

Length [mm]: 325
Color: Silver
Price:
152,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Floor flat manifold, for 6 plug sockets, tehalit.SPW series:

  • the manifold can be powered by max. 2 power cables (cable diameter: 9-17 mm), inserted through M25 glands
  • 6 plug sockets can be mounted on the output - each with a voltage of 230 V AC / 16 A
  • system Wieland
  • housing made of 1 mm thick galvanized steel sheet
  • all elements made of plastic - halogen-free
  • double terminals on the input: 5 x 4 mm²

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Family
    TEHALIT.SPW
  • Height [mm]
    45
  • Connection type
    Terminal block
  • Length [mm]
    325
  • Material
    Metal
  • Width [mm]
    195
  • Accurate color
    galvanized
  • PKWIU
    27.33.13.0

Other technical data

  • Input
    5-pole
  • Number of input current circuits
    6
  • Connection type
    Clamp block
  • Colour connector system
    Black
  • Housing material
    Metal
  • Suitable for through-wiring
    Yes
  • Cross section connection cable
    2.5 mm²
  • Number of branches per phase
    2
  • Connector system system-oriented
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 4 pcs. 72 pcs.
Weight (kg) 1,660 1,660 6,640 159,360
Width (m) 0,200 0,200 0,373 0,800
Length (m) 0,048 0,048 0,202 1,100
Depth (m) 0,420 0,420 0,394 1,200
