TEHALIT.SPW Flat floor distributor Wieland 6 white sockets SPWG069010
local index:
TAK3K8TEHA
Catalog No:
SPWG069010
EAN code:
4012002244067
Price:
152,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

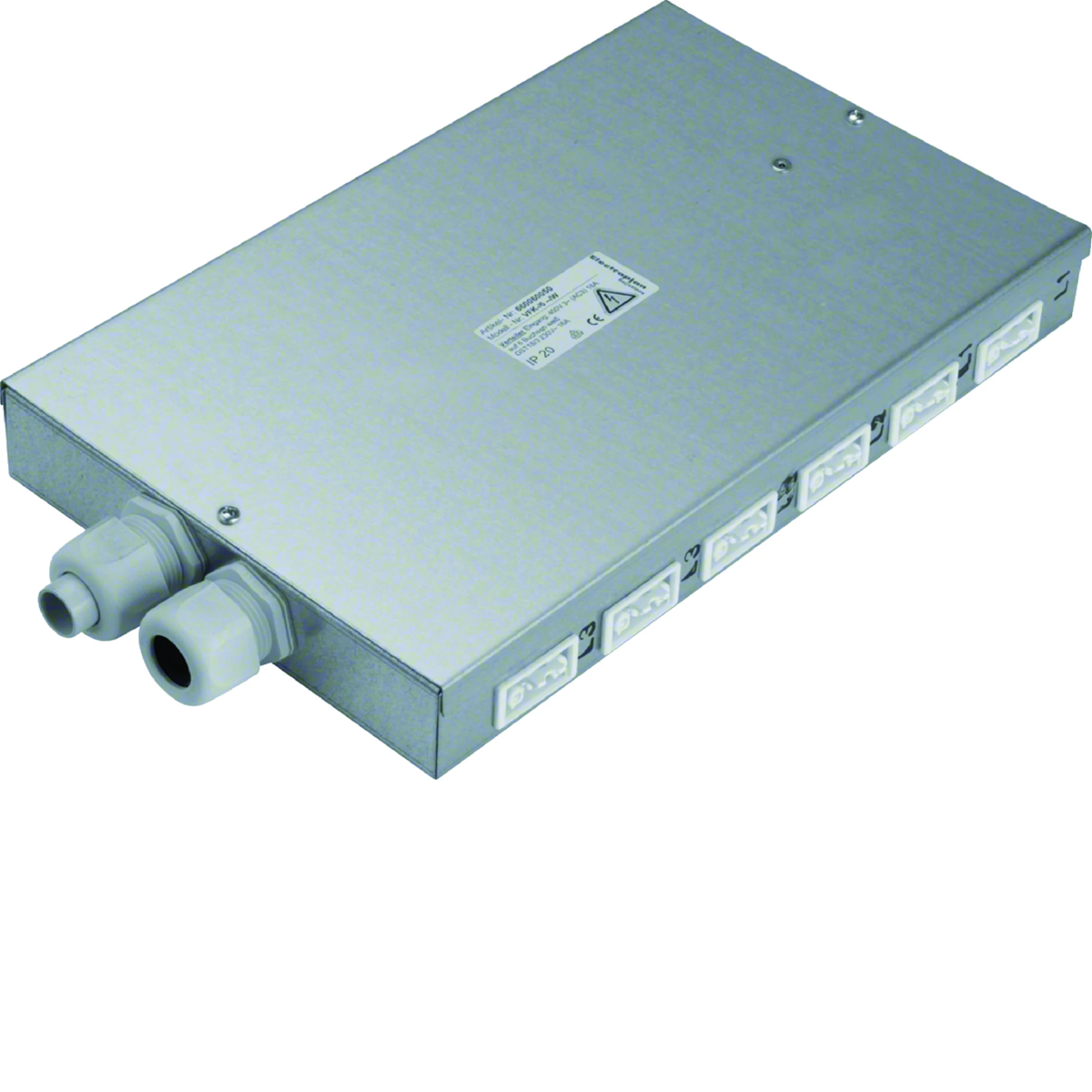

Floor flat manifold, for 6 plug sockets, tehalit.SPW series:
- the manifold can be powered by max. 2 power cables (cable diameter: 9-17 mm), inserted through M25 glands
- 6 plug sockets can be mounted on the output - each with a voltage of 230 V AC / 16 A
- system Wieland
- housing made of 1 mm thick galvanized steel sheet
- all elements made of plastic – halogen-free
- double terminals on the input: 5 x 4 mm²
Technical data
-
Halogen freeYes
-
ColorSilver
-
FamilyTEHALIT.SPW
-

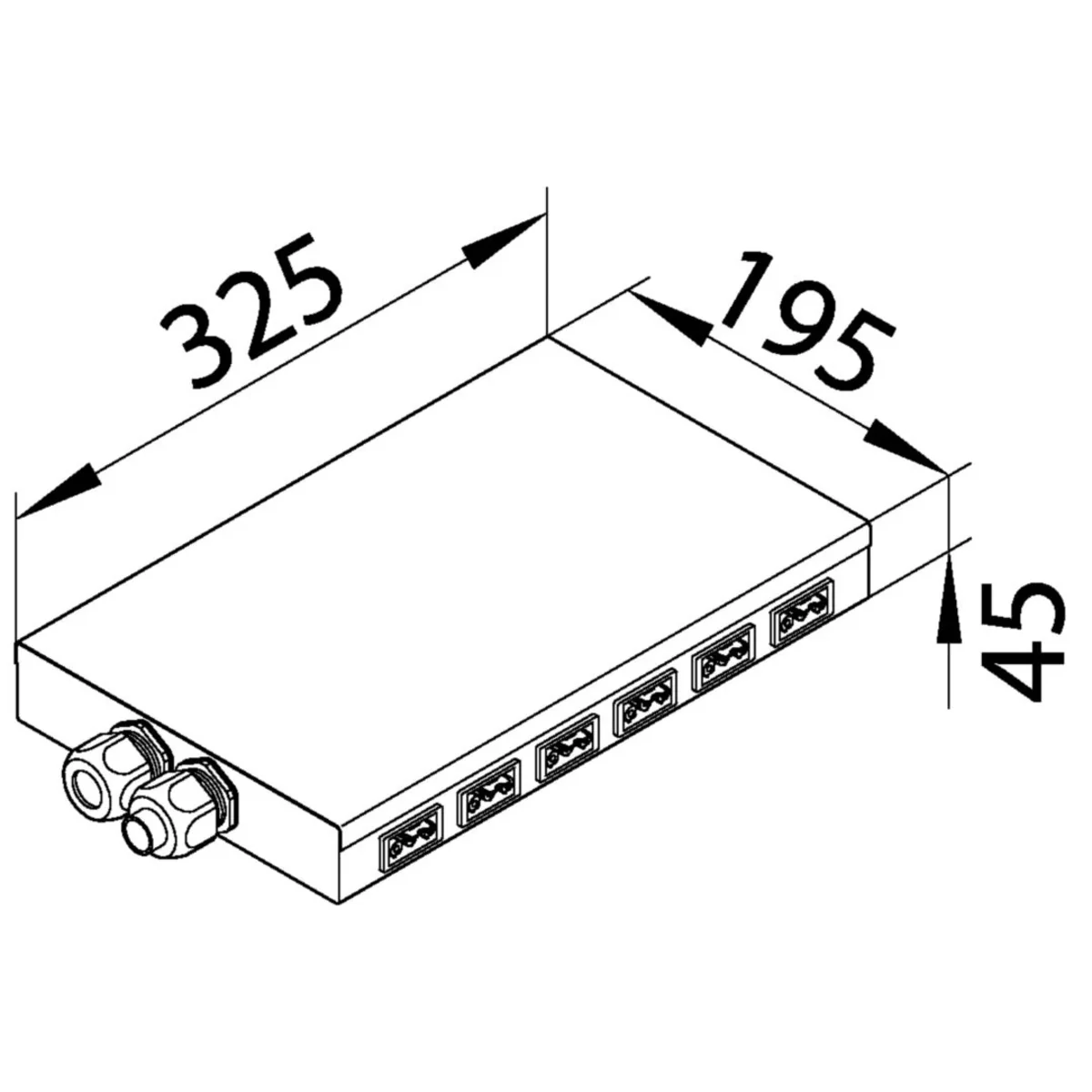

Height [mm]45
-
Connection typeTerminal block
-
Length [mm]325
-
MaterialMetal
-
Width [mm]195
-
Accurate colorgalvanized
-
PKWIU27.33.13.0
Other technical data
-
Input5-pole
-
Number of input current circuits6
-
Connection typeClamp block
-
Colour connector systemWhite
-
Housing materialMetal
-
Suitable for through-wiringYes
-
Cross section connection cable2.5 mm²
-
Number of branches per phase2
-
Connector system system-orientedYes
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 4 pcs. | 72 pcs. |
| Weight (kg) | 1,610 | 1,610 | 6,440 | 154,560 |
| Width (m) | 0,200 | 0,200 | 0,373 | 0,800 |
| Length (m) | 0,045 | 0,045 | 0,202 | 1,100 |
| Depth (m) | 0,420 | 0,420 | 0,394 | 1,200 |
