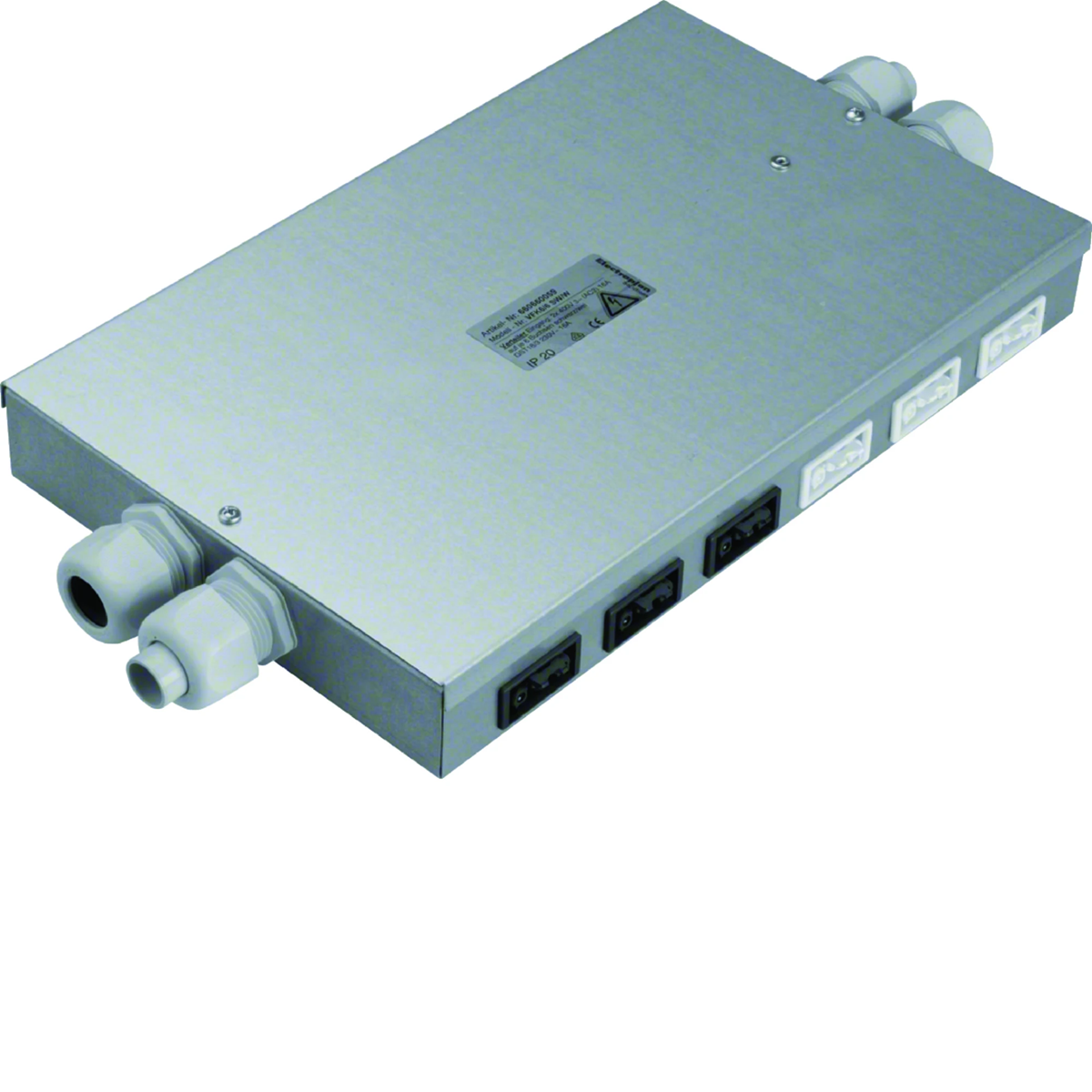

TEHALIT.SPW Flat floor distributor Wieland 6 black/6 white sockets SPWG669010

local index:
TAK3L1TEHA
Catalog No:
SPWG669010
EAN code:
4012002244098
Manufacturer: TEHALIT
Halogen free: Yes

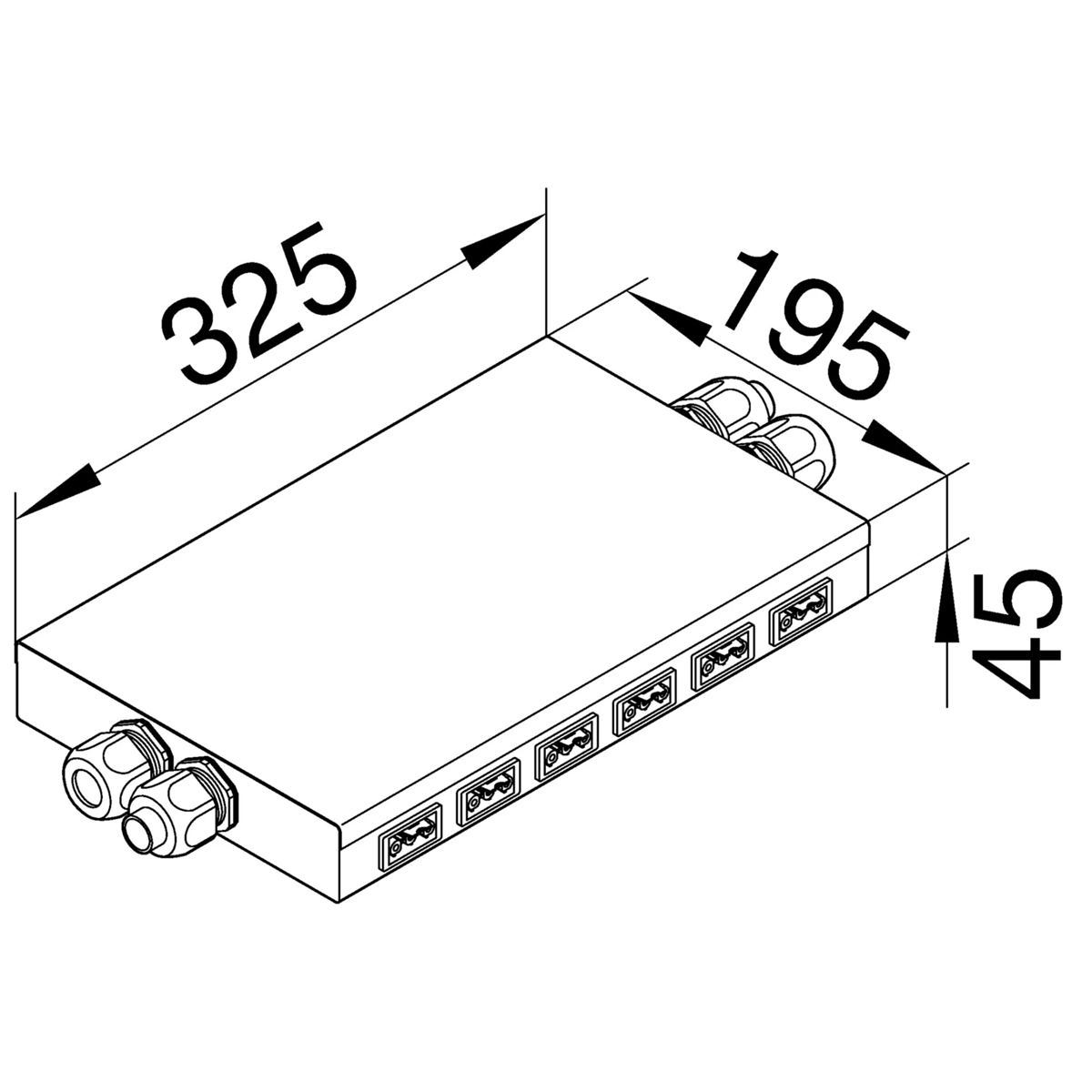

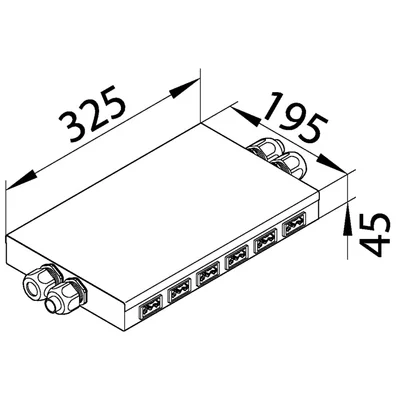

Length [mm]: 325
Color: Silver
Price:
235,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Floor flat distributor, for 2 independent voltages 2x6 plug sockets, series tehalit.SPW:

  • the power supply of the distributor can be through max. 4 power cables (cable diameter: 9-17 mm), inserted through M25 glands
  • 12 plug sockets can be mounted on the output - each with a voltage of 230 V AC / 16 A
  • system Wieland
  • housing made of 1 mm thick galvanized steel sheet
  • all elements made of plastic – halogen-free
  • double terminals on the input: 5 x 4 mm²

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Family
    TEHALIT.SPW
  • Height [mm]
    45
  • Connection type
    Terminal block
  • Length [mm]
    325
  • Material
    Metal
  • Width [mm]
    195
  • Accurate color
    galvanized
  • PKWIU
    27.33.13.0

Other technical data

  • Input
    5-pole
  • Number of input current circuits
    12
  • Connection type
    Clamp block
  • Colour connector system
    White
  • Housing material
    Metal
  • Suitable for through-wiring
    Yes
  • Cross section connection cable
    2.5 mm²
  • Number of branches per phase
    2
  • Connector system system-oriented
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 4 pcs. 72 pcs.
Weight (kg) 1,959 1,960 8,580 179,440
Width (m) 0,200 0,200 0,430 0,800
Length (m) 0,043 0,040 0,260 1,050
Depth (m) 0,420 0,420 0,430 1,200
