TEHALIT.SL Empty device carrier 20x80 fi60 sucupira SL20080901D6

Místní index:
TAK3D2TEHA
Katalogové číslo.:
SL20080901D6
EAN kód:
4012740842853
Výrobce: TEHALIT
Halogen free: Yes
Length [mm]: 105
Depth [mm]: 48
Cena:
288,26 zł
gross / kusů.
(včetně DPH 23%)
Dodání do 3 hodin
do 4 týdnů (pracovní dny)
Vyzvednutí za 1h
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

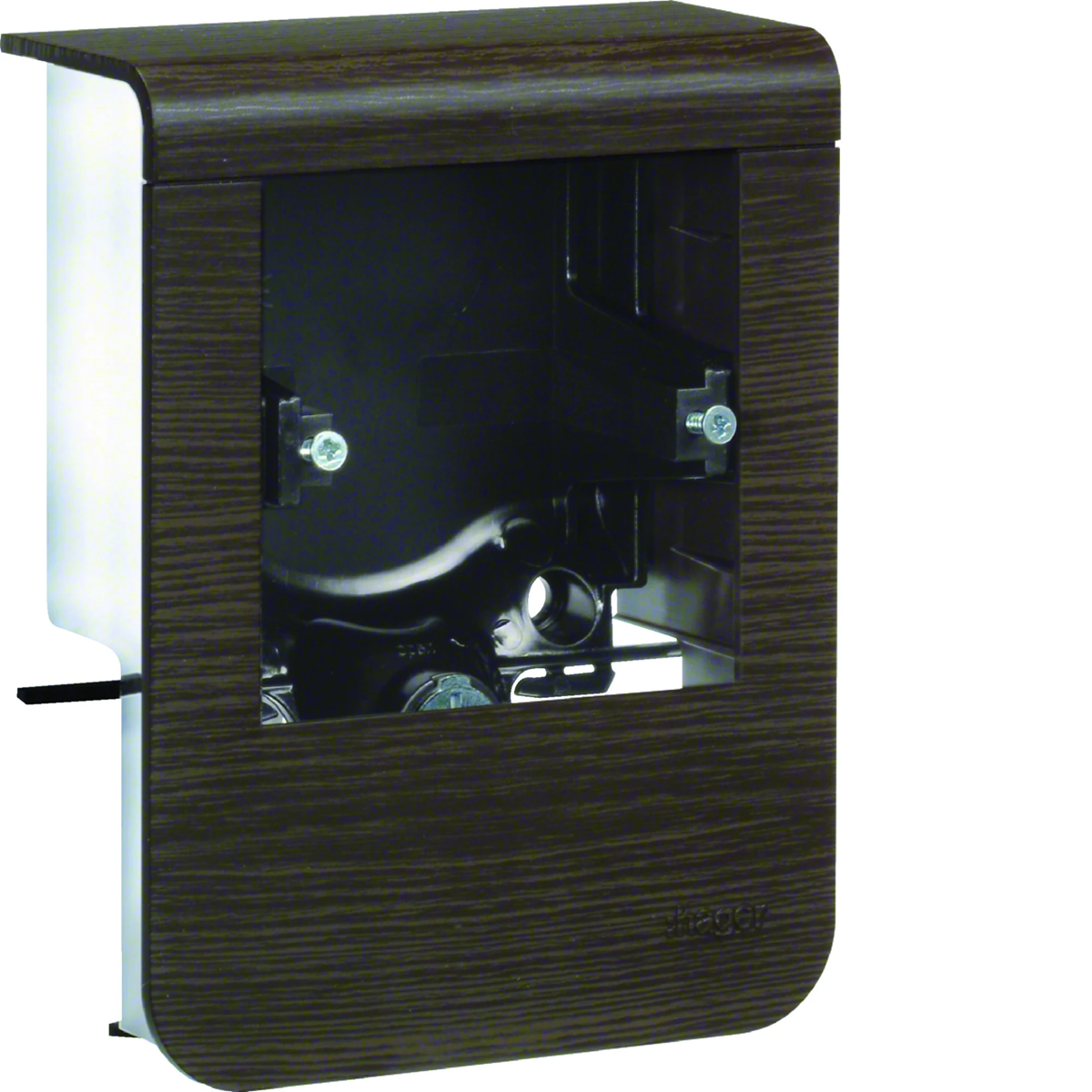

Empty device carrier from the tehalit.SL series.

Series characteristics:

Equipping apartments or offices with modern electrical installations is often associated with high costs. In order to run cables, numerous openings must be designed and then made in the walls, and the location of sockets or telephone connections must be determined, the final location of which is often difficult to predict. The tehalit.SL system of electrical installation skirting boards is in this case the most flexible, economical and functional solution.

Each time we run cables, we encounter the same problem - rooms have many angles, which are rarely as straight as drawing board. In this case, it is necessary to have sufficient flexibility and the ability to adjust the skirting boards to correct any unevenness in the room, while maintaining the prescribed angles of bending of the cables. tehalit.SL channels blend seamlessly, discreetly and imperceptibly into the surroundings.

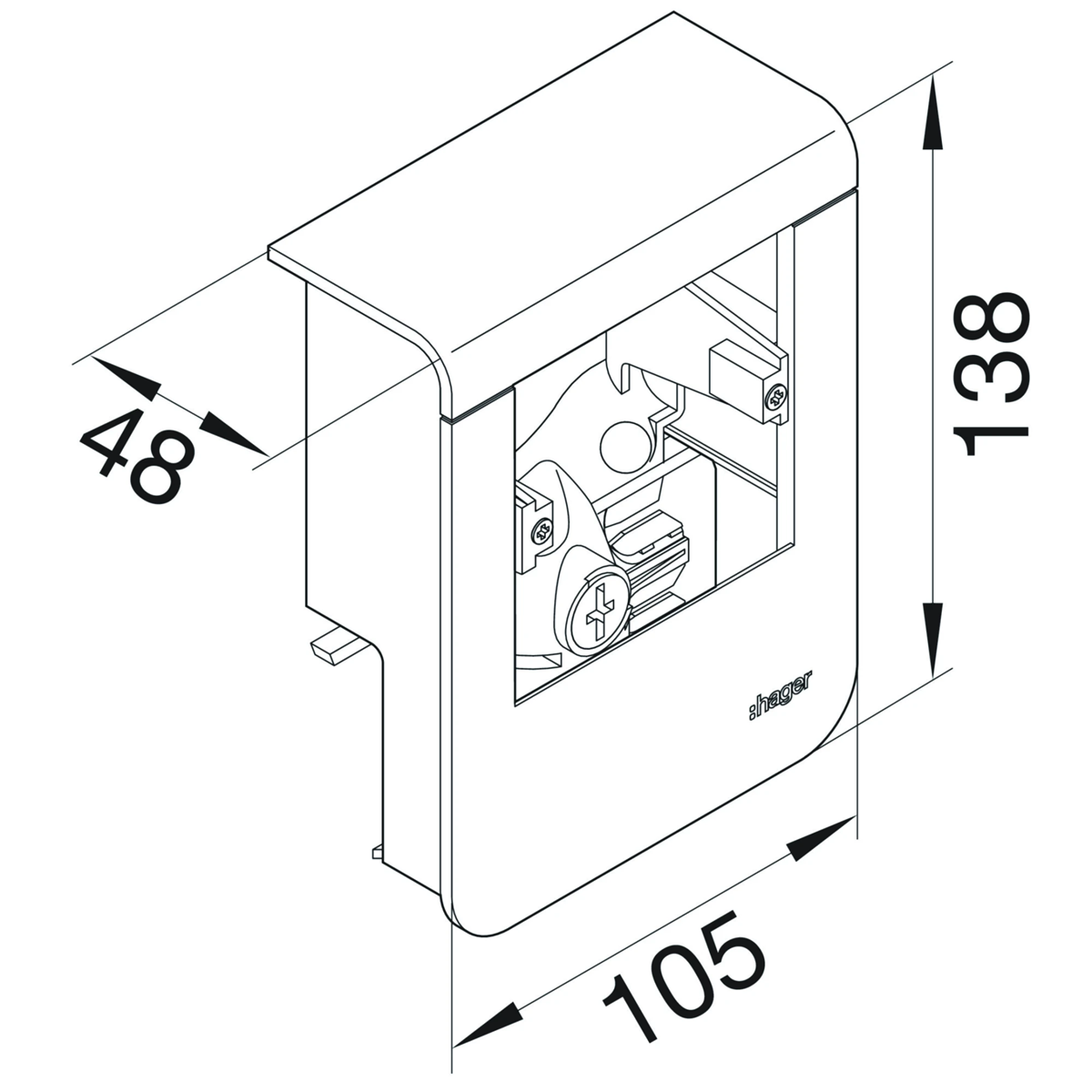

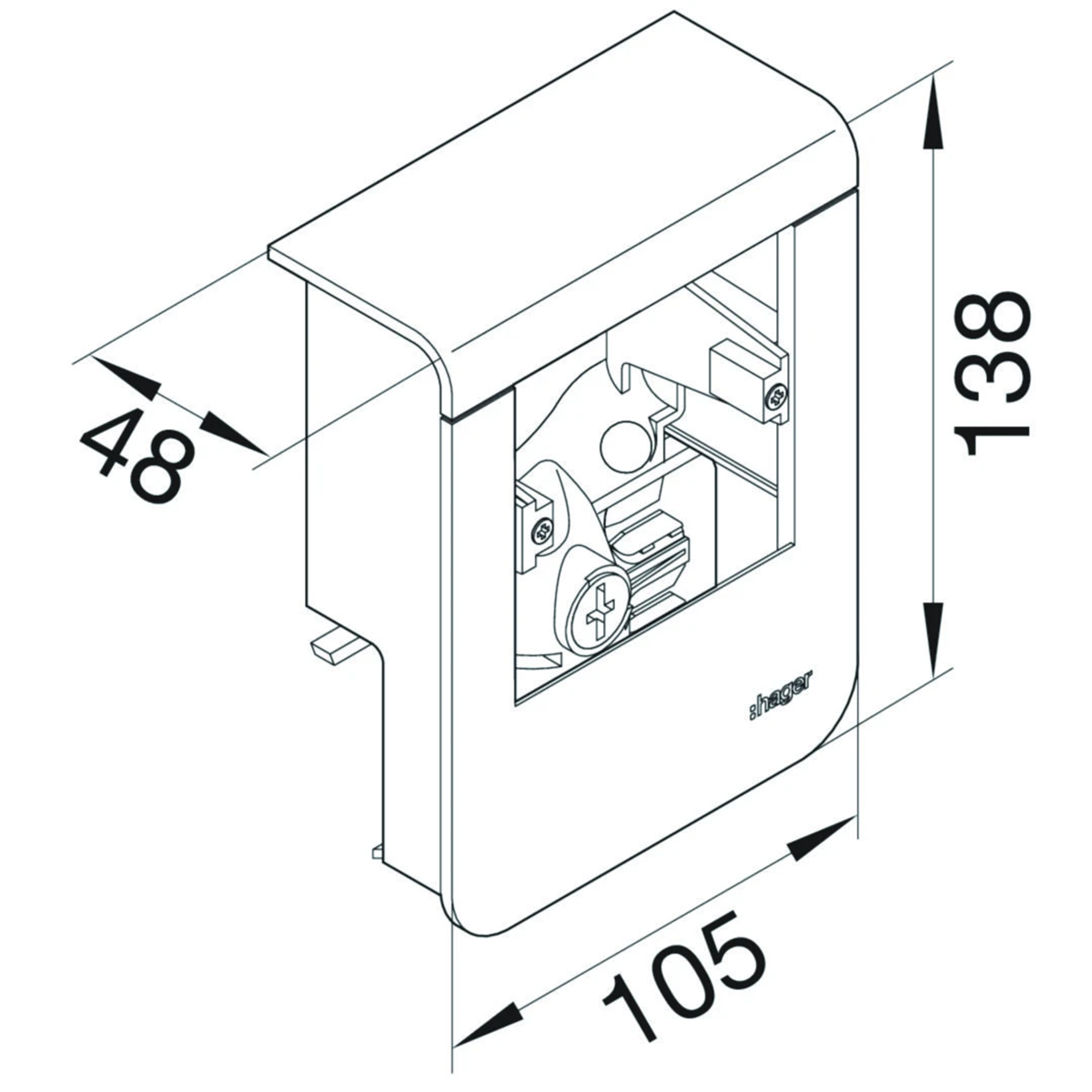

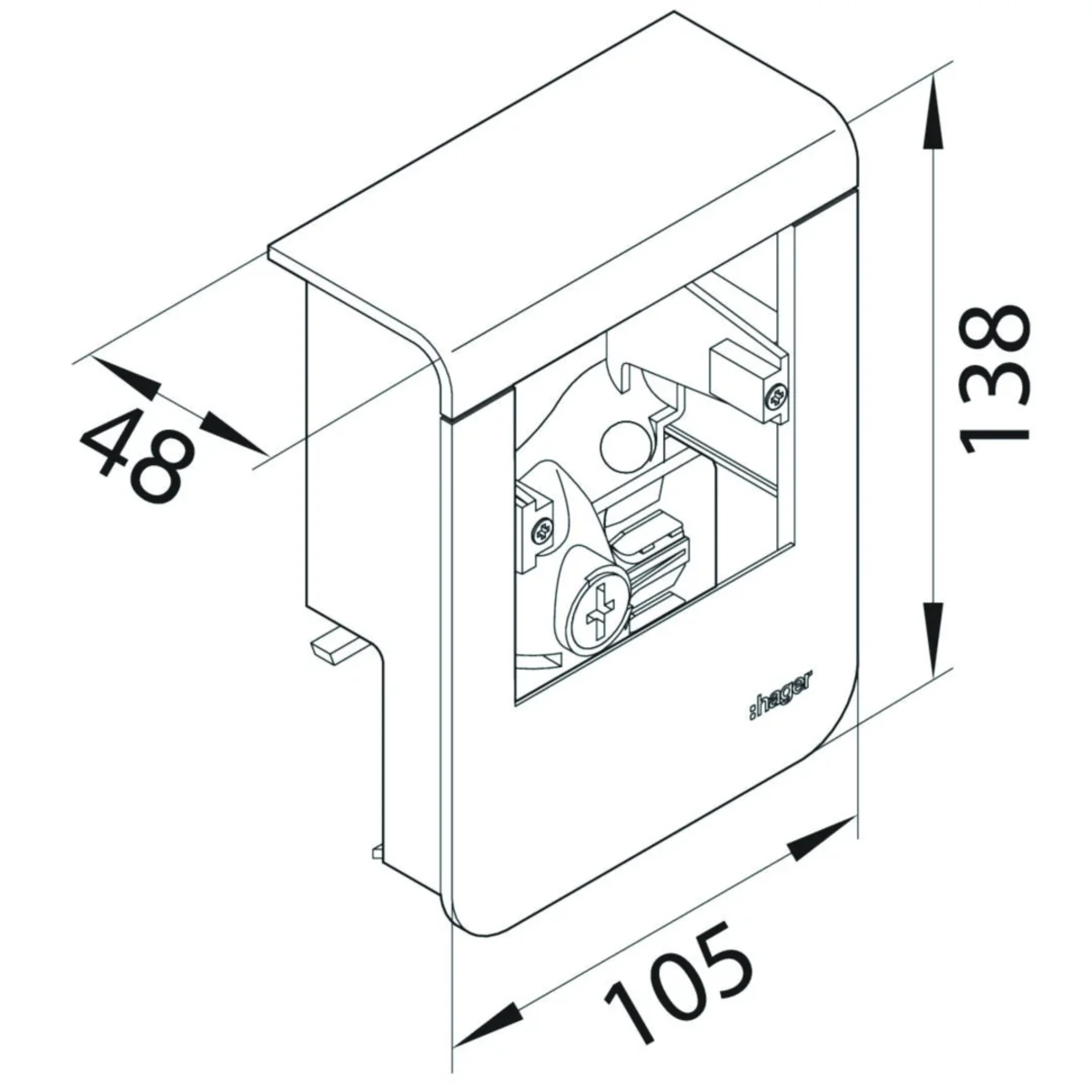

Technické údaje

  • Halogen free
    Yes
  • Depth [mm]
    48
  • Material
    Plastic
  • Compatible product
    Standard 60mm
  • Width [mm]
    20
  • Operating temperature range [°C]
    from -5 to 65
  • Accurate color
    Sucupira
  • Length [mm]
    105
  • Color
    Wood
  • Fixing
    Clamp and screw
  • Family
    TEHALIT.SL
  • Height [mm]
    138
  • Surface finish
    Overprint
  • PKWIU
    27.33.13.0

Další technické údaje

  • Height baseboard duct
    80 mm
  • Number of device units
    1
  • Mounting method installation unit
    Standard
  • Halogen free
    Yes
  • Depth plinth skirting duct
    20 mm
  • Equipped with
    None
  • Material
    Plastic
  • Colour
    Other

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Karton Pakiet Paleta Karton Pakiet Paleta
Množství 1 kusů. 4 kusů. 352 kusů. 1 kusů. 4 kusů. 352 kusů.
Hmotnost (kg) 0,150 0,630 55,960 0,150 0,630 55,960
Šířka (m) 0,110 0,190 0,800 0,110 0,190 0,800
Délka (m) 0,050 0,150 1,040 0,050 0,150 1,040
Hloubka (m) 0,130 0,280 1,200 0,130 0,280 1,200
