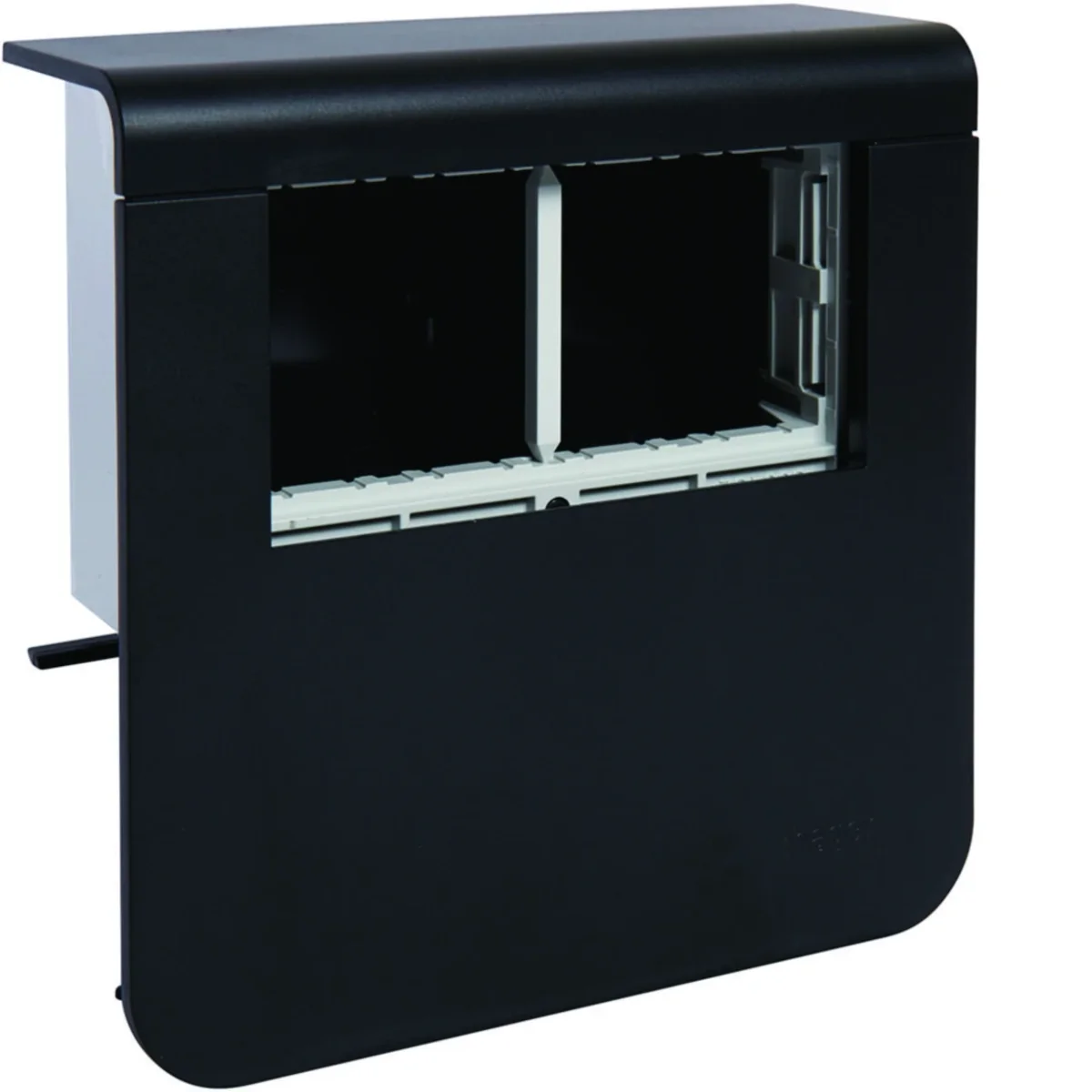

TEHALIT.SL Empty device carrier 20x80 45x45 black SL200809039011

Indice locale:
TAK3D3TEHA
Numero di catalogo:
SL200809039011
Codice EAN:
4012740895651
Produttore: TEHALIT
Halogen free: Yes
Color: Graphite
Material: Miscellaneous materials
Prezzo:
144,67 zł
gross / pezzi
(inclusa IVA 23%)
fino a 4 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Empty device carrier from the tehalit.SL series.

Series characteristics:

Equipping apartments or offices with modern electrical installations is often associated with high costs. In order to run cables, numerous openings must be designed and then made in the walls, and the location of sockets or telephone connections must be determined, the final location of which is often difficult to predict. The tehalit.SL system of electrical installation skirting boards is in this case the most flexible, economical and functional solution.

Each time we run cables, we encounter the same problem - rooms have many angles, which are rarely as straight as drawing board. In this case, it is necessary to have sufficient flexibility and the ability to adjust the skirting boards to correct any unevenness in the room, while maintaining the prescribed angles of bending of the cables. tehalit.SL channels blend seamlessly, discreetly and imperceptibly into the surroundings.

Dati tecnici

  • Halogen free
    Yes
  • Material
    Miscellaneous materials
  • Compatible product
    Standard 45x45mm
  • Width [mm]
    20
  • Operating temperature range [°C]
    from -5 to 65
  • Color
    Graphite
  • Fixing
    Clamp and screw
  • Family
    TEHALIT.SL
  • Height [mm]
    80
  • PKWIU
    27.33.13.0

Altri dati tecnici

  • Height baseboard duct
    80 mm
  • Number of device units
    1
  • Mounting method installation unit
    Standard
  • Material
    Other
  • Anti-bacterial treatment
    No
  • RAL-number
    9011
  • Degree of protection (IP)
    IP40
  • Operating temperature
    5 ... 60 °C
  • Depth plinth skirting duct
    20 mm
  • Equipped with
    None
  • Mounting direction
    Horizontal
  • Halogen free
    Yes
  • Colour
    Black
  • Decoration
    None
  • Impact strength
    IK07

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta Karton Pakiet Paleta
Quantità 1 pezzi 4 pezzi 352 pezzi 1 pezzi 4 pezzi 352 pezzi
Peso (kg) 0,205 0,955 107,040 0,205 0,955 107,040
Larghezza (m) 0,140 0,200 0,800 0,140 0,200 0,800
Lunghezza (m) 0,060 0,140 1,050 0,060 0,140 1,050
Profondità (m) 0,140 0,280 1,200 0,140 0,280 1,200
