TEHALIT.SL Empty device carrier 20x55 fi60 black SL200559019011

Indeks lokalny:
TAK2Y0TEHA
Numer katalogowy:
SL200559019011
Kod EAN:
4012740842617
Producent: TEHALIT
Halogen free: Yes
Length [mm]: 105
Depth [mm]: 48
Cena:
111,51 zł
gross / szt.
(w tym VAT 23%)
do 4 tygodni
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

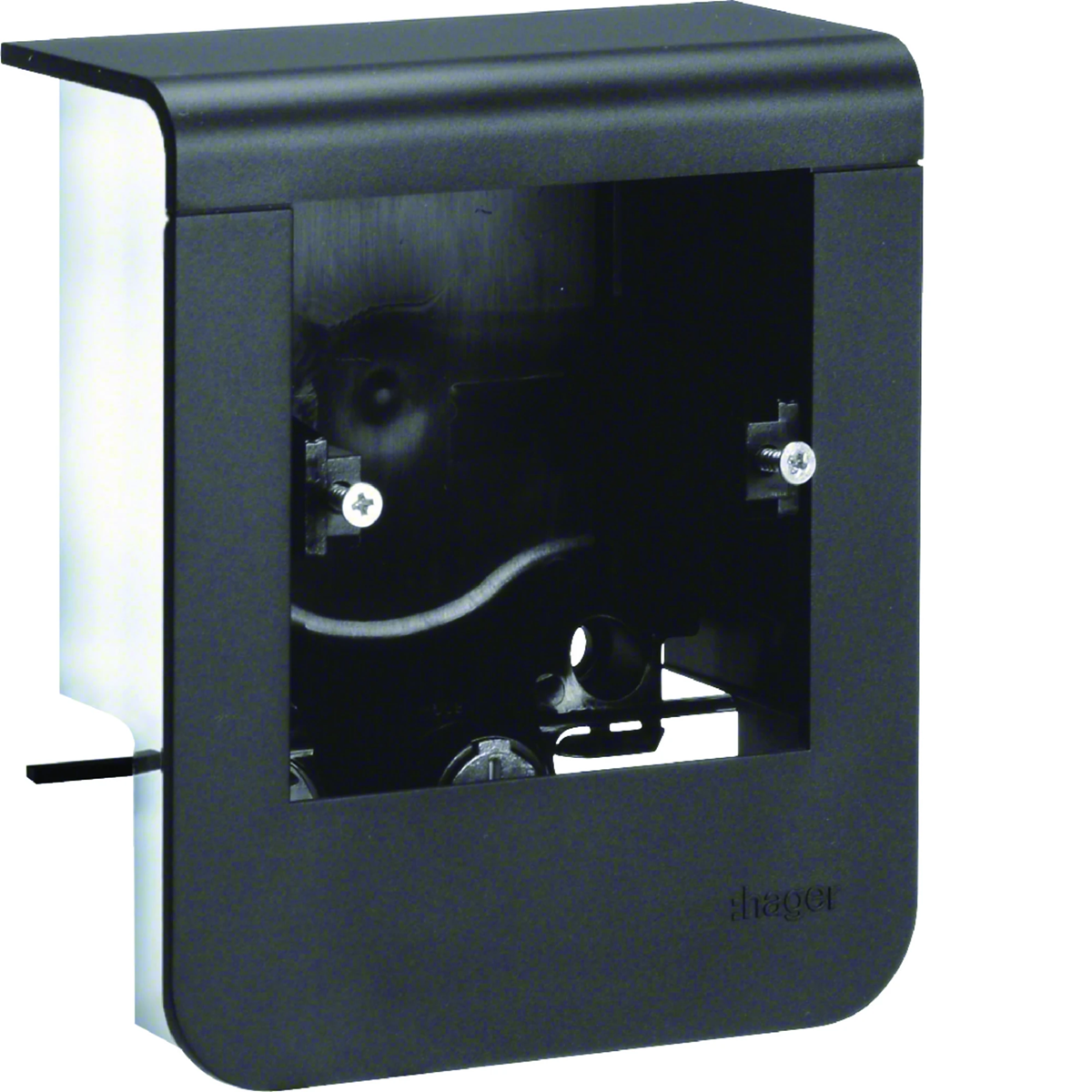

Empty device carrier from the tehalit.SL series.

Series characteristics:

Equipping apartments or offices with modern electrical installations is often associated with high costs. In order to run cables, numerous openings must be designed and then made in the walls, and the location of sockets or telephone connections must be determined, the final location of which is often difficult to predict. The tehalit.SL system of electrical installation skirting boards is in this case the most flexible, economical and functional solution.

Each time we run cables, we encounter the same problem - rooms have many angles, which are rarely as straight as drawing board. In this case, it is necessary to have sufficient flexibility and the ability to adjust the skirting boards to correct any unevenness in the room, while maintaining the prescribed angles of bending of the cables. tehalit.SL channels blend seamlessly, discreetly and imperceptibly into the surroundings.

Dane techniczne

  • Halogen free
    Yes
  • Depth [mm]
    48
  • Material
    Plastic
  • Compatible product
    Standard 60mm
  • Width [mm]
    20
  • Operating temperature range [°C]
    from -5 to 65
  • Length [mm]
    105
  • Color
    Graphite
  • Fixing
    Clamp and screw
  • Family
    TEHALIT.SL
  • Height [mm]
    125
  • PKWIU
    27.33.13.0

Pozostałe dane techniczne

  • Height baseboard duct
    55 mm
  • Number of device units
    1
  • Mounting method installation unit
    Standard
  • Material
    Plastic
  • Anti-bacterial treatment
    No
  • RAL-number
    9011
  • Impact strength
    IK07
  • Depth plinth skirting duct
    20 mm
  • Equipped with
    None
  • Mounting direction
    Horizontal
  • Halogen free
    Yes
  • Colour
    Black
  • Degree of protection (IP)
    IP40
  • Operating temperature
    5 ... 60 °C

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Karton Pakiet Paleta Karton Pakiet Paleta
Ilość 1 szt. 4 szt. 352 szt. 1 szt. 4 szt. 352 szt.
Waga (kg) 0,144 0,720 88,360 0,144 0,720 88,360
Szerokość (m) 0,110 0,190 0,800 0,110 0,190 0,800
Długość (m) 0,050 0,150 1,040 0,050 0,150 1,040
Głębokość (m) 0,130 0,280 1,200 0,130 0,280 1,200
