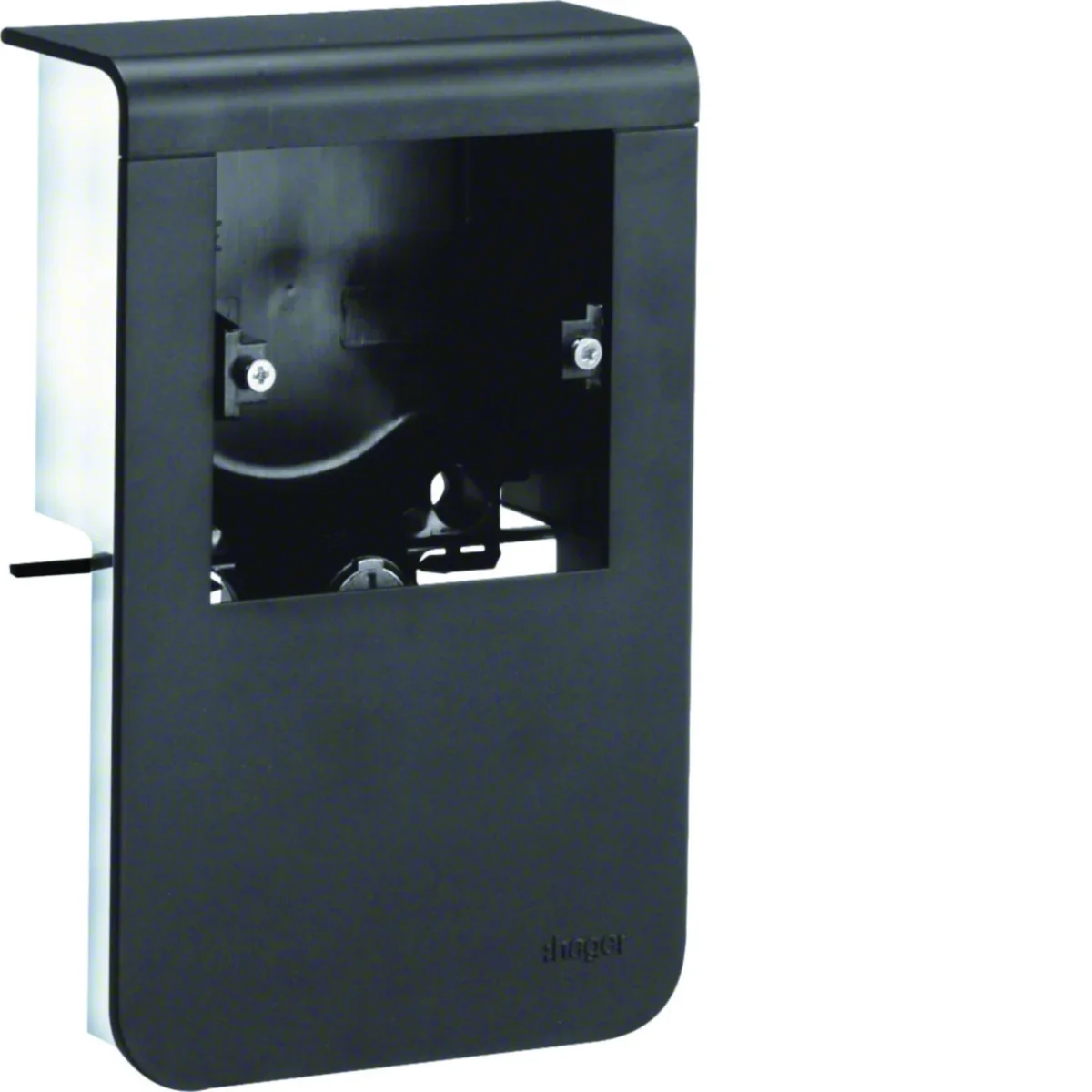

TEHALIT.SL Empty device carrier 20x115 fi 60 black SL201159019011

local index:
TAK3H9TEHA
Catalog No:
SL201159019011
EAN code:
4012740842891
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 105
Depth [mm]: 48
Price:
26,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Empty device carrier from the tehalit.SL series.

Series characteristics:

Equipping apartments or offices with modern electrical installations is often associated with high costs. In order to run cables, numerous openings must be designed and then made in the walls, and the location of sockets or telephone connections must be determined, the final location of which is often difficult to predict. The tehalit.SL system of electrical installation skirting boards is in this case the most flexible, economical and functional solution.

Each time we run cables, we encounter the same problem - rooms have many angles, which are rarely as straight as drawing board. In this case, it is necessary to have sufficient flexibility and the ability to adjust the skirting boards to correct any unevenness in the room, while maintaining the prescribed angles of bending of the cables. tehalit.SL channels blend seamlessly, discreetly and imperceptibly into the surroundings.

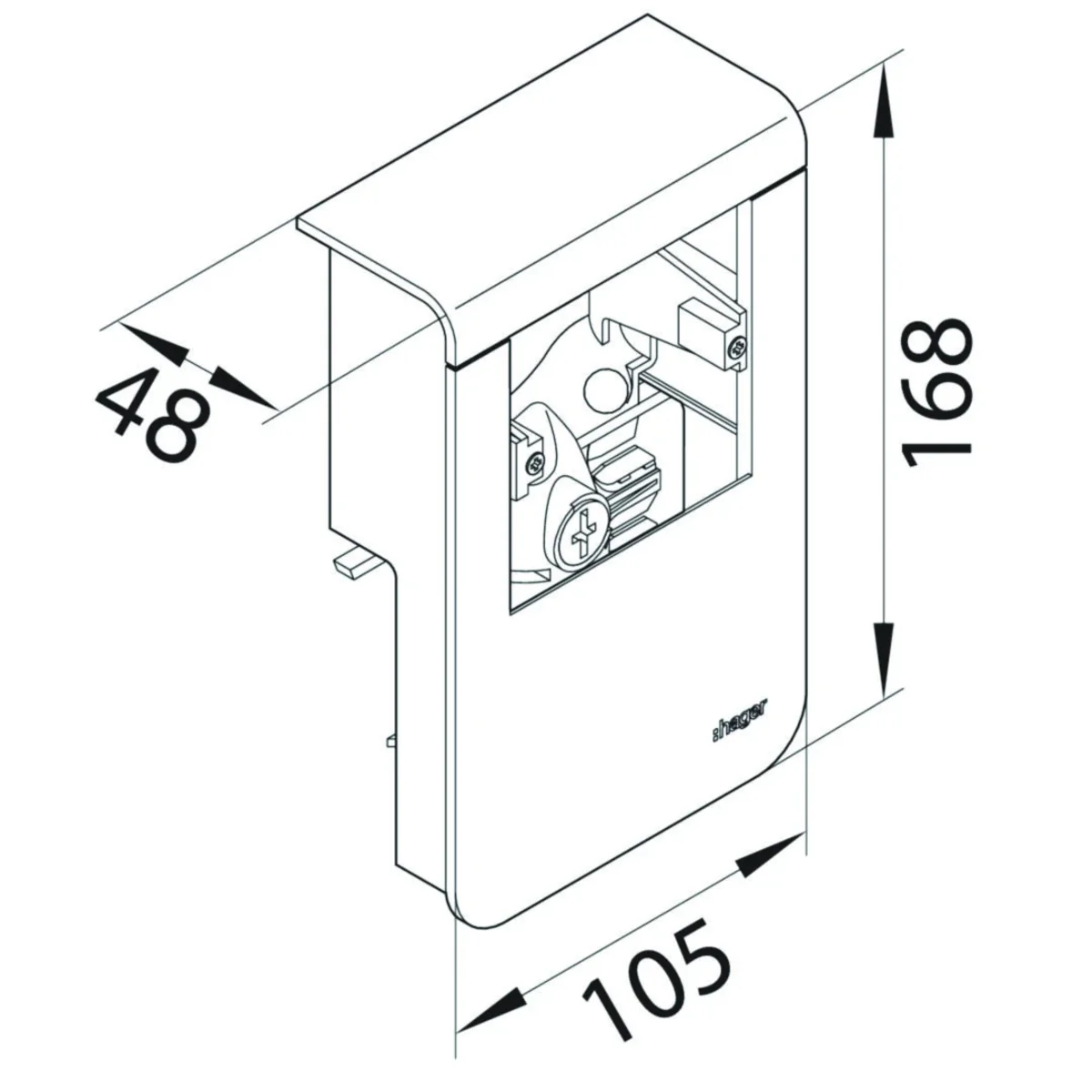

Technical data

  • Halogen free
    Yes
  • Depth [mm]
    48
  • Material
    Plastic
  • Compatible product
    Standard 60mm
  • Width [mm]
    20
  • Operating temperature range [°C]
    from -5 to 65
  • Length [mm]
    105
  • Color
    Graphite
  • Fixing
    Clamp and screw
  • Family
    TEHALIT.SL
  • Height [mm]
    168
  • PKWIU
    27.33.13.0

Other technical data

  • Height baseboard duct
    115 mm
  • Number of device units
    1
  • Mounting method installation unit
    Standard
  • Halogen free
    Yes
  • RAL-number
    9011
  • Depth plinth skirting duct
    20 mm
  • Equipped with
    None
  • Material
    Plastic
  • Colour
    Other

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 4 pcs. 352 pcs.
Weight (kg) 0,169 0,179 0,839 98,832
Width (m) 0,110 0,110 0,190 0,800
Length (m) 0,045 0,050 0,140 0,990
Depth (m) 0,135 0,170 0,280 1,200
