TEHALIT.SL Element T 20x80 black SL2008089011

Místní index:
TAK730TEHA
Katalogové číslo.:
SL2008089011
EAN kód:
4012740895415
Výrobce: TEHALIT
Halogen free: Yes
Color: Graphite
Material: PC | ABS
Cena:
158,93 zł
gross / kusů.
(včetně DPH 23%)
do 4 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

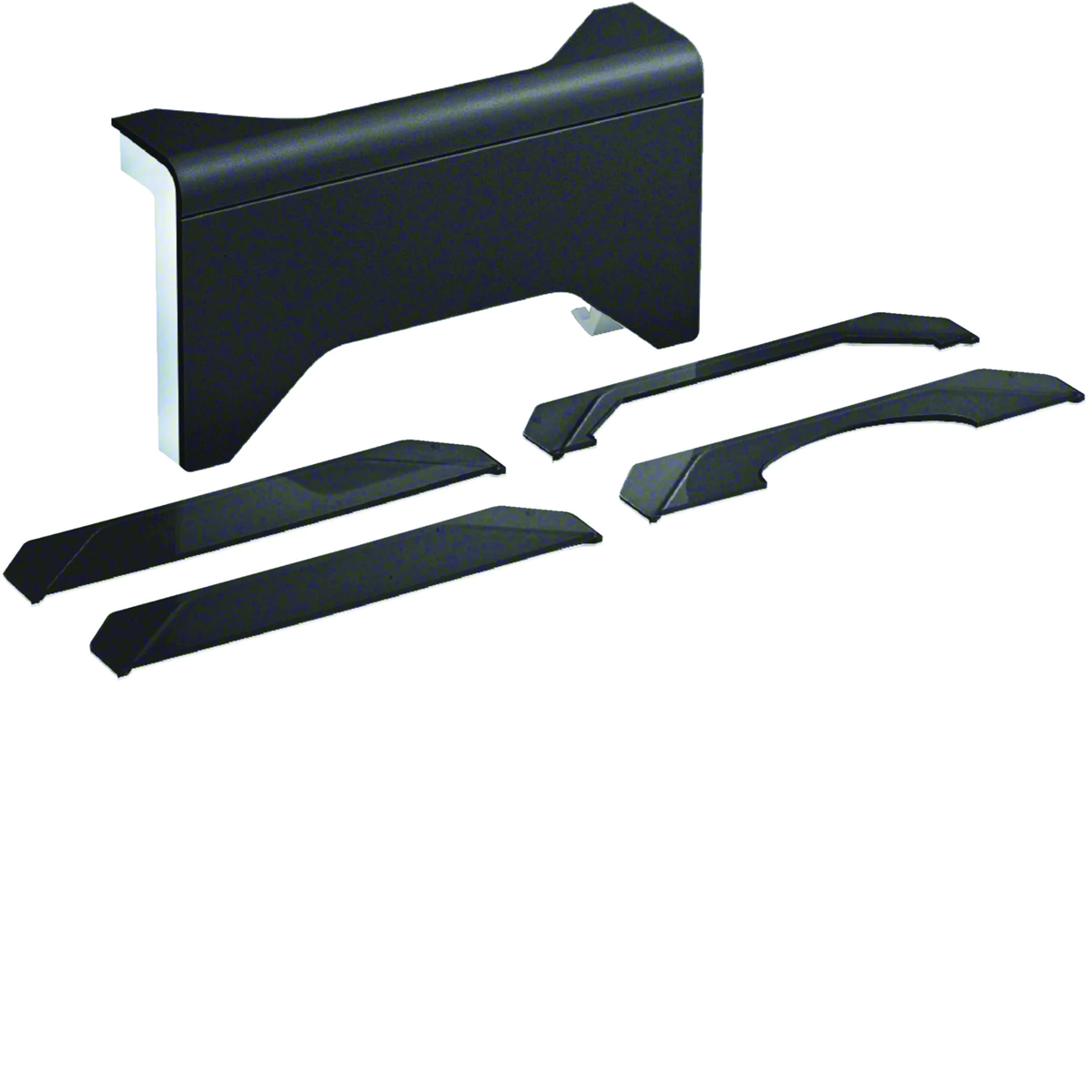

Element T from the tehalite.SL series. Range: 83/135°.

Series characteristics:

Equipping apartments or offices with modern electrical installations is often associated with high costs. In order to run cables, numerous openings must be designed and then made in the walls, and the location of sockets or telephone connections must be determined, the final location of which is often difficult to predict. The tehalit.SL system of electrical installation skirting boards is in this case the most flexible, economical and functional solution.

Each time we run cables, we encounter the same problem - rooms have many angles, which are rarely as straight as drawing board. In this case, it is necessary to have sufficient flexibility and the ability to adjust the skirting boards to correct any unevenness in the room, while maintaining the prescribed angles of bending of the cables. tehalit.SL channels blend seamlessly, discreetly and imperceptibly into the surroundings.

Technické údaje

  • Halogen free
    Yes
  • Material
    PC ABS
  • Family
    TEHALIT.SL
  • Height [mm]
    80
  • Surface finish
    Natural
  • Cut joint cover
    Yes
  • Color
    Graphite
  • Fixing
    Clamps
  • Width [mm]
    20
  • Operating temperature range [°C]
    from -5 to 65
  • Protective film
    NO
  • PKWIU
    22.23.19.0

Další technické údaje

  • Height baseboard duct
    80 mm
  • Height duct connection
    80 mm
  • Duct connection
    Mini/maxi trunking
  • Halogen free
    Yes
  • RAL-number
    9011
  • Impact strength
    IK07
  • Depth plinth skirting duct
    20 mm
  • Width duct connection
    20 mm
  • Material
    Plastic
  • Colour top cover
    Other
  • Degree of protection (IP)
    IP40

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Karton Pakiet Paleta Karton Pakiet Paleta
Množství 1 kusů. 4 kusů. 384 kusů. 1 kusů. 4 kusů. 384 kusů.
Hmotnost (kg) 0,125 0,589 81,544 0,125 0,589 81,544
Šířka (m) 0,160 0,180 0,800 0,160 0,180 0,800
Délka (m) 0,050 0,110 1,050 0,050 0,110 1,050
Hloubka (m) 0,230 0,250 1,200 0,230 0,250 1,200
