TEHALIT.SL Device carrier cover 20x80 2x 45x45 black SL200809329011

Místní index:
TAK113TEHA
Katalogové číslo.:
SL200809329011
EAN kód:
4012740852821
Výrobce: TEHALIT
Halogen free: Yes
Length [mm]: 130
Depth [mm]: 48
Cena:
71,13 zł
gross / kusů.
(včetně DPH 23%)
do 4 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

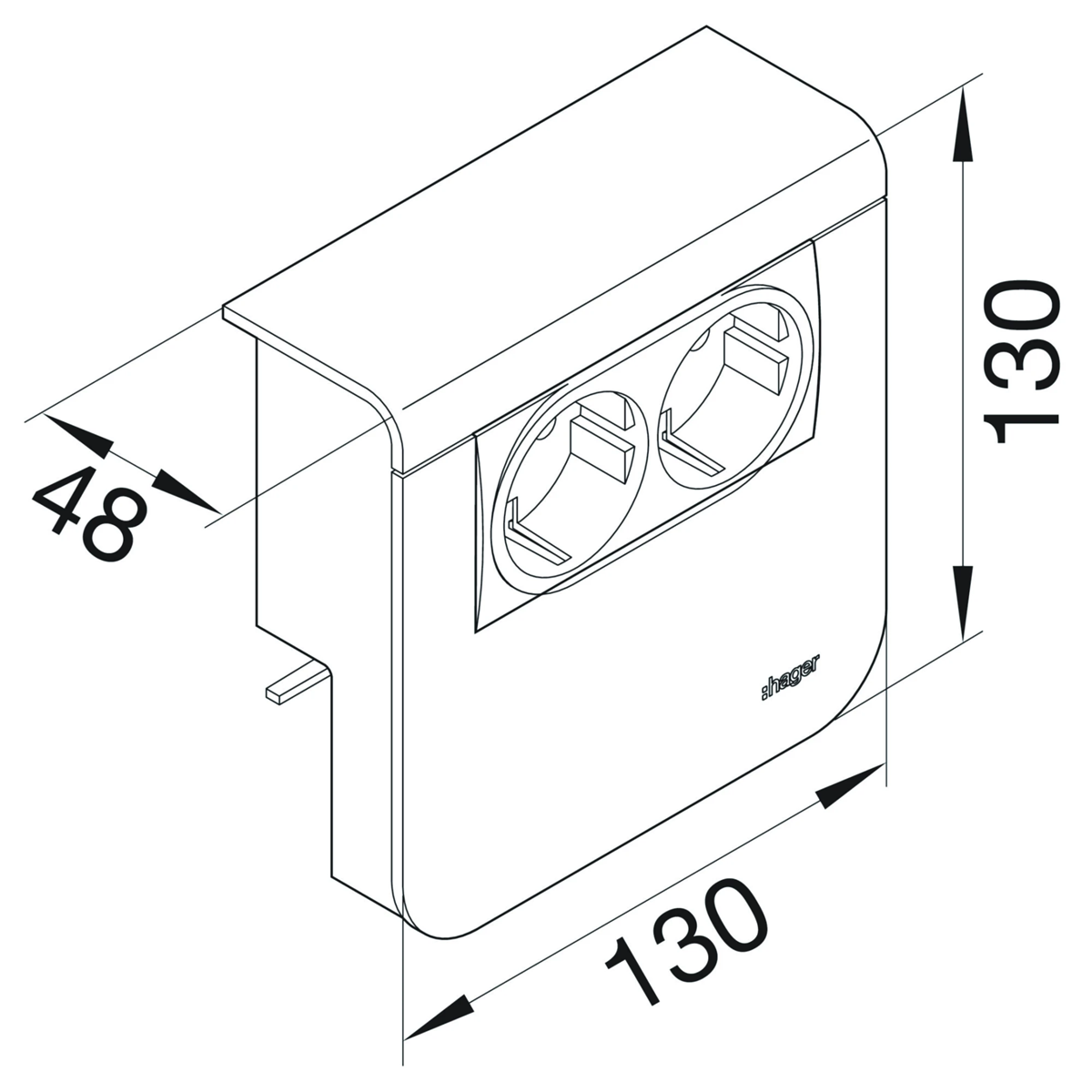

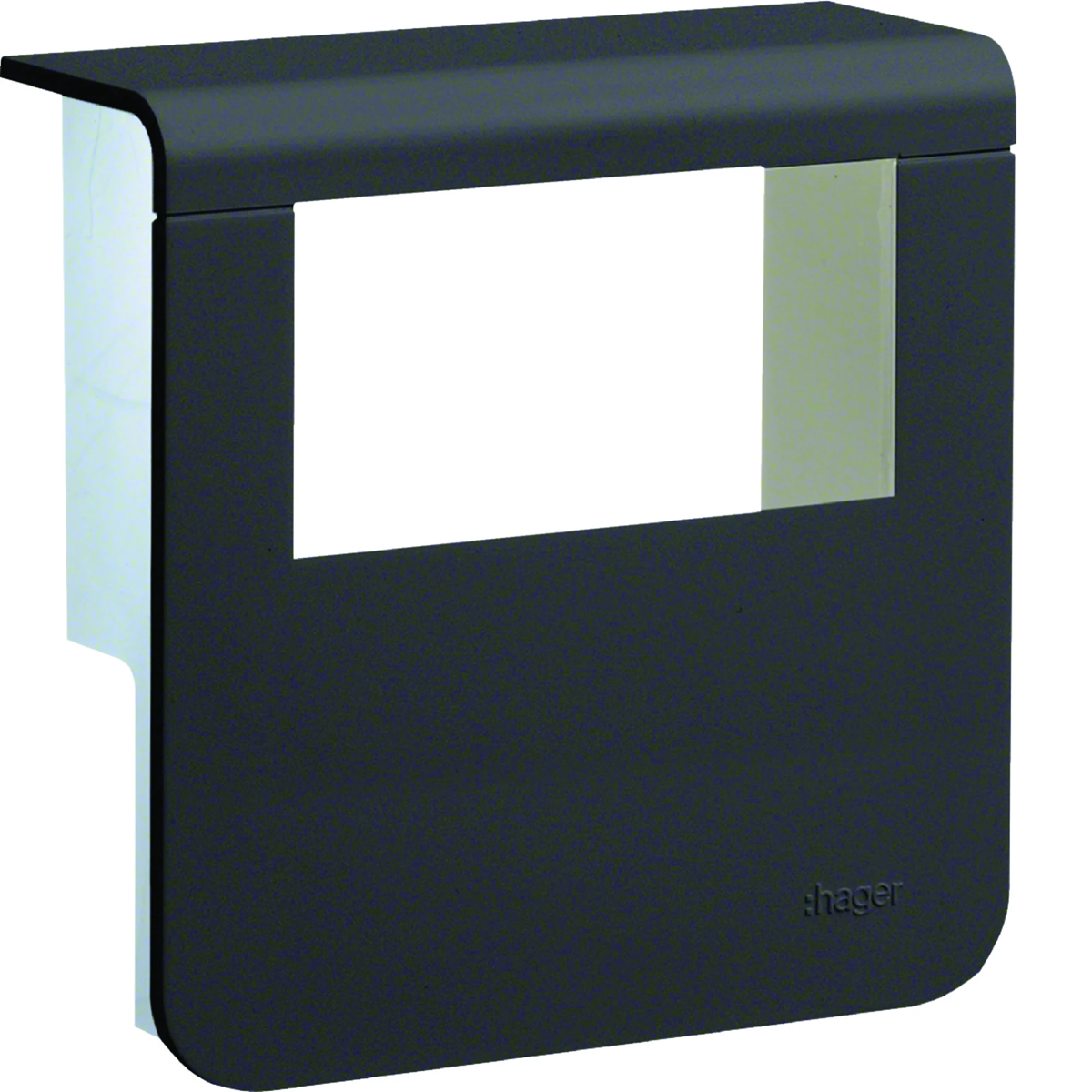

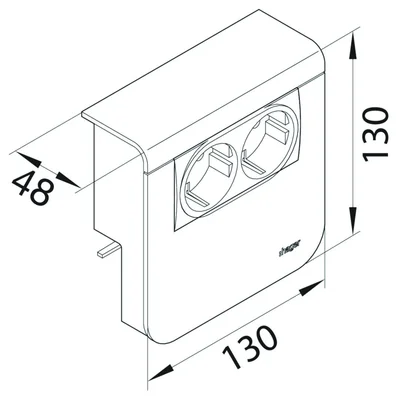

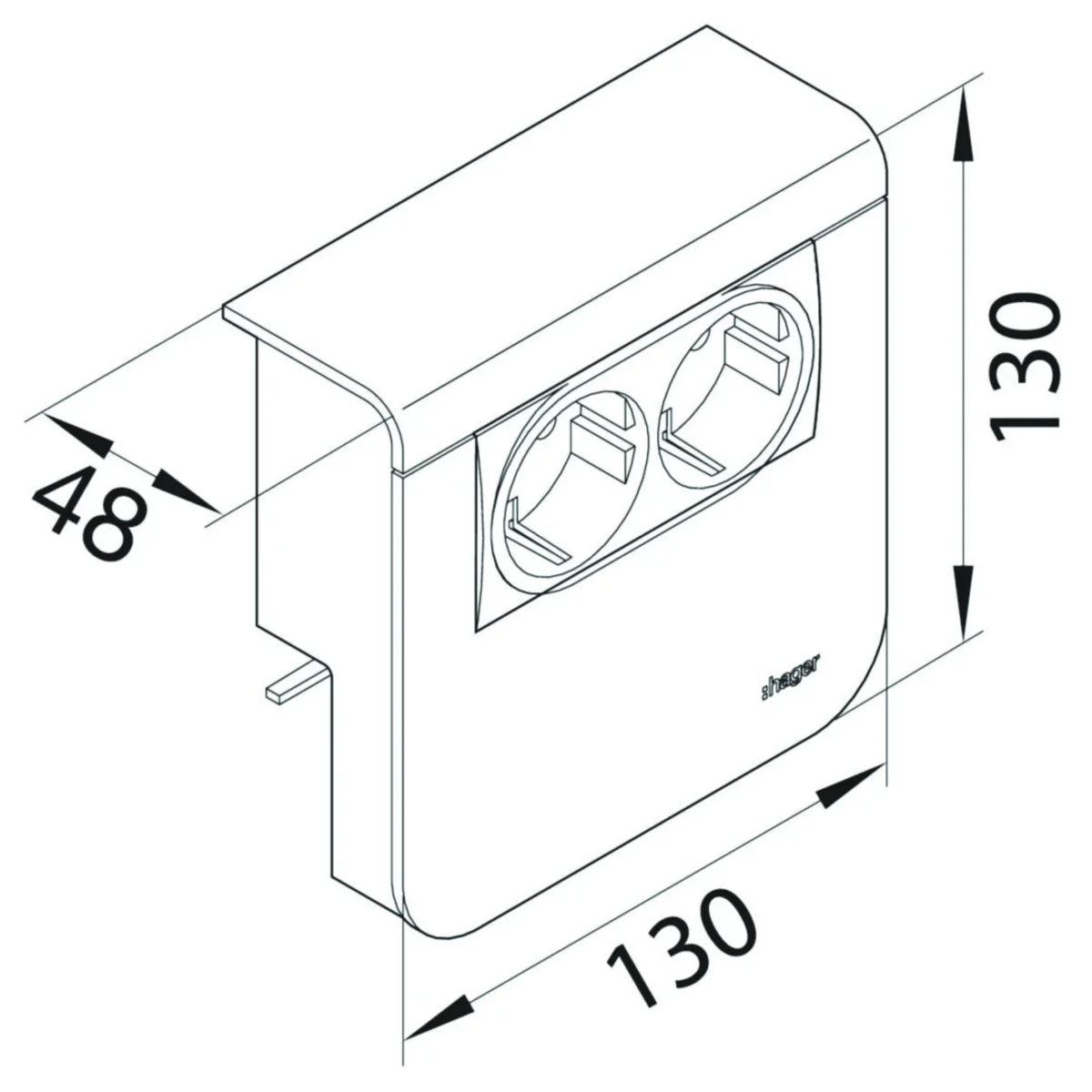

Device carrier cover, for double module 45x45, tehalit.SL series.

Series characteristics:< /p>

Equipping apartments or offices with modern electrical installations is often associated with high costs. In order to run cables, numerous openings must be designed and then made in the walls, and the location of sockets or telephone connections must be determined, the final location of which is often difficult to predict. The tehalit.SL system of electrical installation skirting boards is in this case the most flexible, economical and functional solution.

Each time we run cables, we encounter the same problem - rooms have many angles, which are rarely as straight as drawing board. In this case, it is necessary to have sufficient flexibility and the ability to adjust the skirting boards to correct any unevenness in the room, while maintaining the prescribed angles of bending of the cables. tehalit.SL channels blend seamlessly, discreetly and imperceptibly into the surroundings.

Technické údaje

  • Halogen free
    Yes
  • Depth [mm]
    48
  • Material
    Plastic
  • Compatible product
    Standard 45x45mm
  • Width [mm]
    20
  • Operating temperature range [°C]
    from -5 to 65
  • Length [mm]
    130
  • Color
    Graphite
  • Fixing
    Clamps
  • Family
    TEHALIT.SL
  • Height [mm]
    130
  • PKWIU
    27.33.13.0

Další technické údaje

  • Height corner duct
    80 mm
  • Height duct connection
    80 mm
  • Material
    Plastic
  • Halogen free
    Yes
  • RAL-number
    9011
  • Impact strength
    IK07
  • Width corner duct
    20 mm
  • Width duct connection
    20 mm
  • Material quality
    Other
  • Colour
    Black
  • Degree of protection (IP)
    IP40

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Karton Pakiet Paleta
Množství 1 kusů. 10 kusů. 300 kusů.
Hmotnost (kg) 0,094 1,192 60,778
Šířka (m) 0,130 0,190 0,800
Délka (m) 0,050 0,180 0,870
Hloubka (m) 0,130 0,560 1,200
