TEHALIT.SL Device carrier cover 20x55 2x45x45 black SL200559329011

Indice locale:
TAK102TEHA
Numero di catalogo:
SL200559329011
Codice EAN:
4012740851831
Produttore: TEHALIT
Halogen free: Yes
Length [mm]: 130
Depth [mm]: 48
Prezzo:
16,61 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 4 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

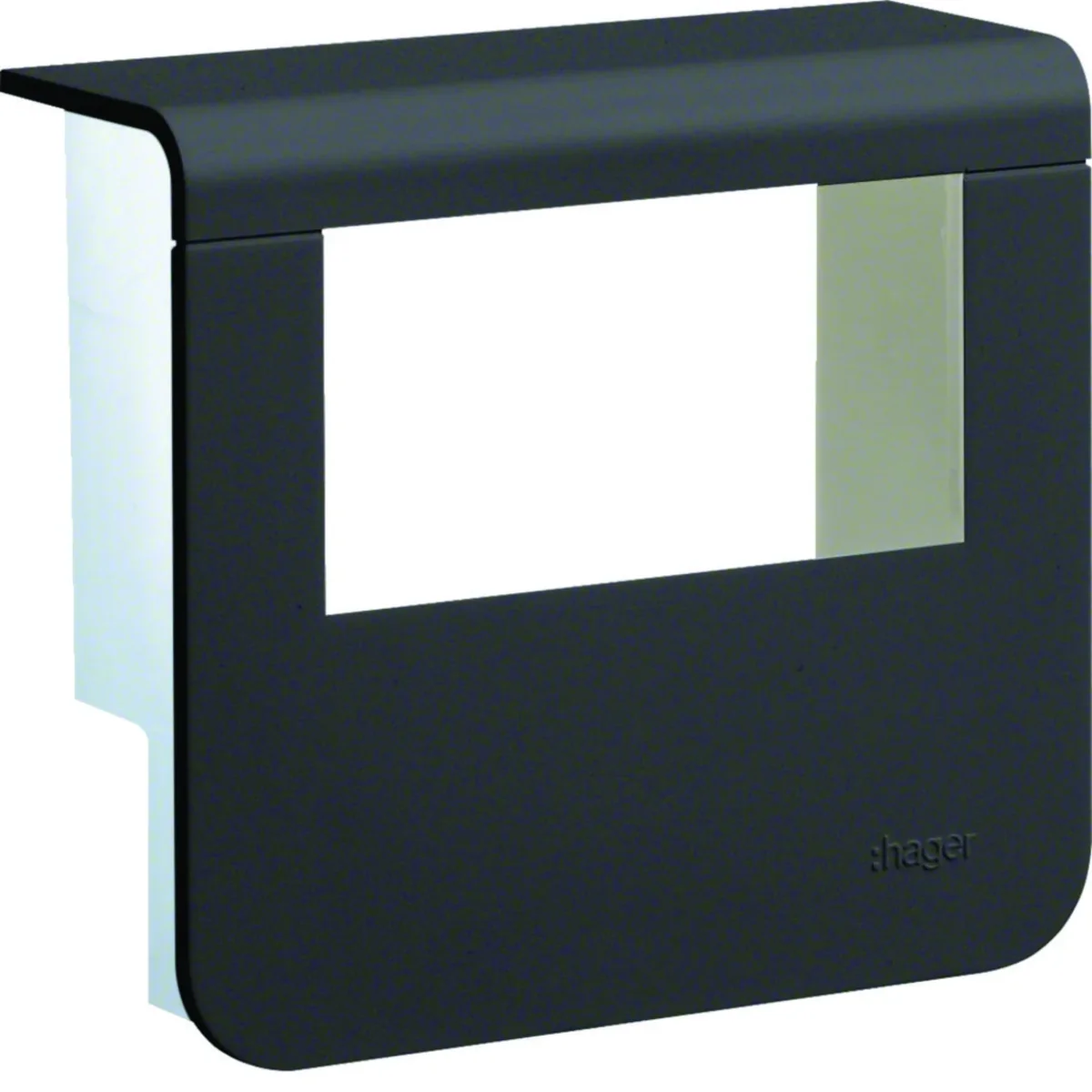

Device carrier cover, for double module 45x45, tehalit.SL series.

Series characteristics:< /p>

Equipping apartments or offices with modern electrical installations is often associated with high costs. In order to run the cables, numerous openings must be designed and then made in the walls, and the location of sockets or telephone connections must be determined, the final location of which is often difficult to predict. The tehalit.SL system of electrical installation skirting boards is in this case the most flexible, economical and functional solution.

Each time we run cables, we encounter the same problem - rooms have many angles, which are rarely as straight as drawing board. In this case, it is necessary to have sufficient flexibility and the ability to adjust the skirting boards, allowing to correct any unevenness in the room, while maintaining the prescribed angles of bending of the cables. tehalit.SL channels blend seamlessly, discreetly and imperceptibly into the surroundings.

Dati tecnici

  • Halogen free
    Yes
  • Depth [mm]
    48
  • Material
    Plastic
  • Compatible product
    Standard 45x45mm
  • Width [mm]
    20
  • Operating temperature range [°C]
    from -5 to 65
  • Length [mm]
    130
  • Color
    Graphite
  • Fixing
    Clamps
  • Family
    TEHALIT.SL
  • Height [mm]
    115
  • PKWIU
    22.23.19.0

Altri dati tecnici

  • Height baseboard duct
    55 mm
  • Number of device units
    1
  • Mounting method installation unit
    Standard
  • Halogen free
    Yes
  • RAL-number
    9011
  • Depth plinth skirting duct
    20 mm
  • Equipped with
    None
  • Material
    Plastic
  • Colour
    Other

Dettagli del produttore

  • Produttore
    HAGER POLO Sp. z o. o.
  • Indirizzo
    43-100 Tychy Fabryczna 10
  • NIP
    6460015532

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta Karton Pakiet Paleta
Quantità 1 pezzi 10 pezzi 300 pezzi 1 pezzi 10 pezzi 300 pezzi
Peso (kg) 0,090 1,220 61,600 0,090 1,220 61,600
Larghezza (m) 0,130 0,190 0,800 0,130 0,190 0,800
Lunghezza (m) 0,050 0,180 1,045 0,050 0,180 1,045
Profondità (m) 0,115 0,570 1,200 0,115 0,570 1,200
