TEHALIT.LFS Galvanized steel channel 60x100mm LFS601000VERZ

Místní index:
TKM371TEHA
Katalogové číslo.:
LFS601000VERZ
EAN kód:
4012740230476
Výrobce: TEHALIT
Halogen free: Yes
Length [mm]: 2000
Number of compartments: 1
objemné produkt
Cena:
428,56 zł
gross / kusů.
(včetně DPH 23%)
do 4 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

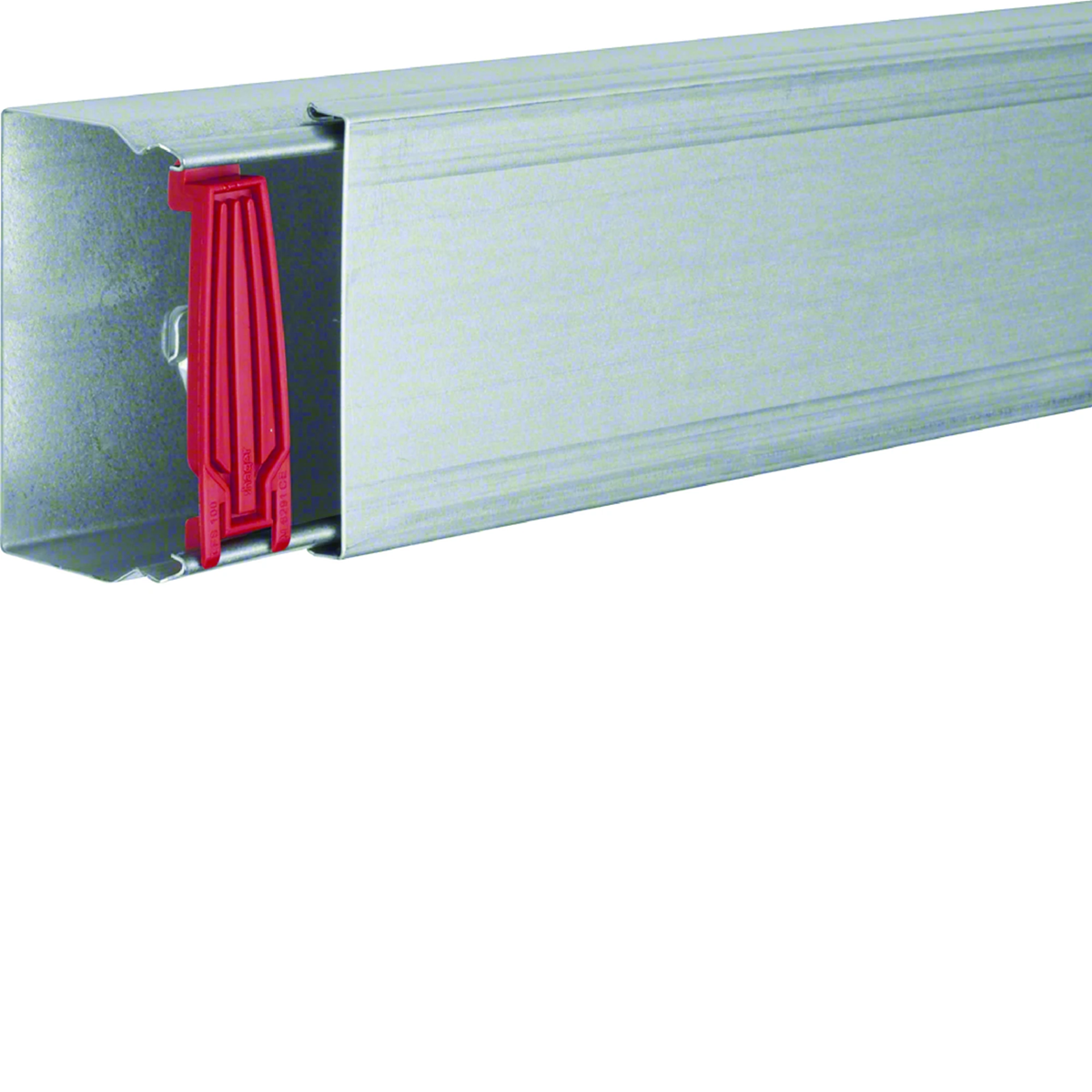

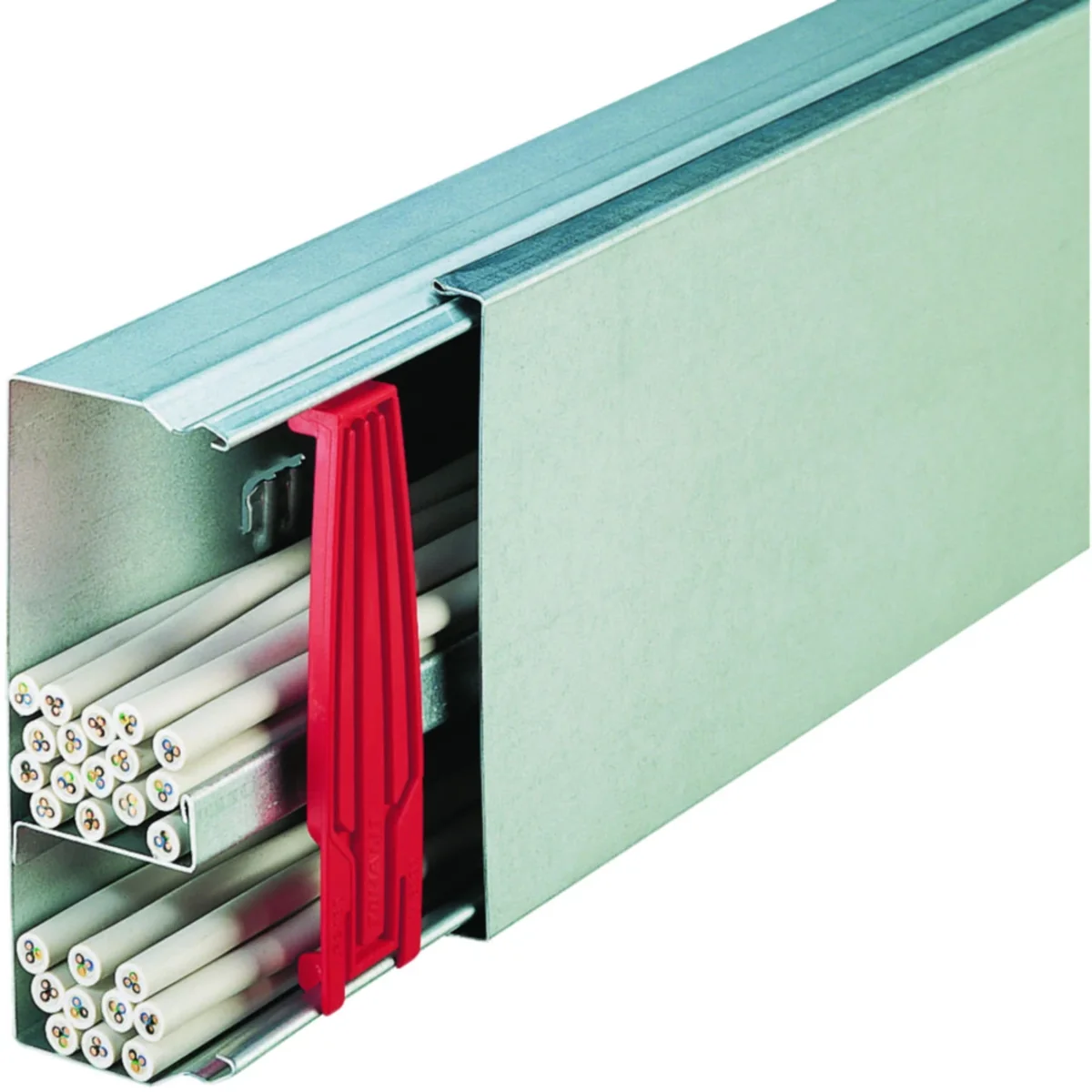

Steel duct from the tehalit.LFS series, whose accessories are used to assemble the duct system.

Series characteristics:

Thanks to the integrated connectors, laying individual ducts is much easier and faster at the same time, and the pre-installed, stable clamps make it easier to lay the cable in the ducts. tehalit.LF wiring ducts are an ideal solution for routing electrical cables in basements, service buildings, production halls, garages and industrial installations. The system of installation channels meets all the requirements for routing wires and cables, depending on the working conditions and guidelines for use.

Technické údaje

  • Halogen free
    Yes
  • Number of compartments
    1
  • Material
    steel
  • Width [mm]
    100
  • Surface finish
    Galvanized
  • Usable cross-section [mm²]
    5025
  • Protective film
    NO
  • PKWIU
    25.99.29.0
  • Length [mm]
    2000
  • Color
    Silver
  • Family
    TEHALIT.LFS
  • Height [mm]
    60
  • Accurate color
    galvanized
  • Number of chambers
    1 to 2
  • Number of clamps per running meter
    2

Další technické údaje

  • Height
    60 mm
  • Length
    2000 mm
  • Material
    Steel
  • Halogen free
    Yes
  • Suitable for circuit integrity
    Yes
  • Transparent
    No
  • Number of plug-in partitions
    1
  • Cover model
    Loose
  • With protective foil
    No
  • Delivery on roll
    No
  • Width
    100 mm
  • Useful cross section
    5025 mm²
  • Material quality
    Other
  • Surface protection
    Continuously galvanized
  • Colour
    Other
  • Number of permanent partitions
    0
  • Type of fastening
    Bottom perforation
  • With cable fixing clip
    Yes
  • With duct connector
    Yes
  • Pre-stamping
    No

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Karton Paleta Karton Paleta
Množství 3 kusů. 108 kusů. 3 kusů. 108 kusů.
Hmotnost (kg) 19,220 731,920 19,220 731,920
Šířka (m) 0,180 0,800 0,180 0,800
Délka (m) 0,160 1,640 0,160 1,640
Hloubka (m) 2,040 2,040 2,040 2,040
