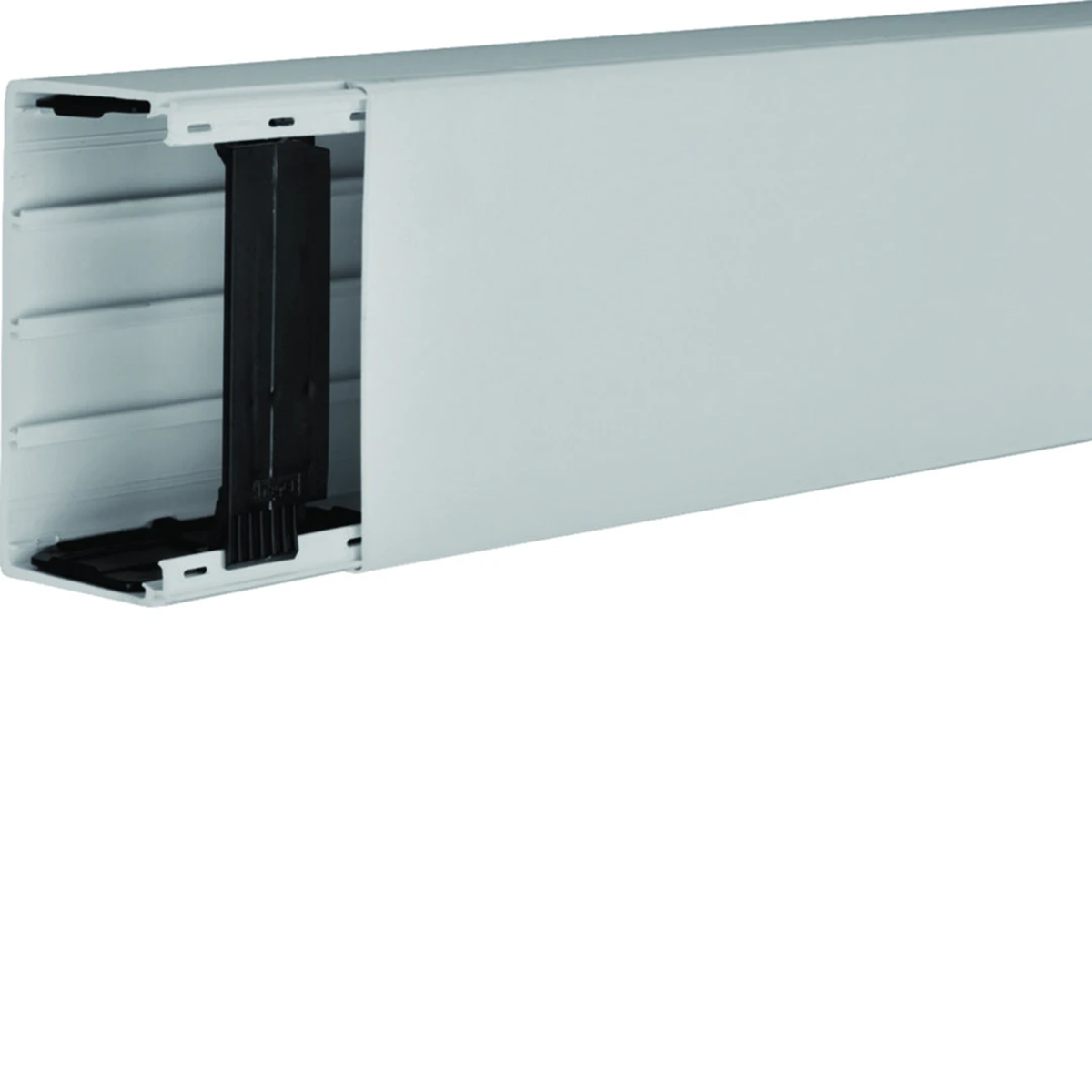

TEHALIT.LFH Halogen-free wiring trunking 60x110mm light gray LFH6011007035

local index:
TKP357TEHA
Catalog No:
LFH6011007035
EAN code:
4012740325172
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 2000
Number of compartments: 3
Large-size product
Price:
62,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Halogen-free wiring trunking, made of PC/ABS, tehalit.LFh series.

Series characteristics:

Thanks to the integrated connectors, laying individual ducts is much easier and, at the same time, faster to perform, and the pre-installed, stable clamps make it easier to lay the cable in the ducts. tehalit.LF wiring ducts are an ideal solution for routing electrical cables in basements, service buildings, production halls, garages and industrial installations. The system of installation channels meets all the requirements for routing wires and cables, depending on the working conditions and guidelines for use.

Technical data

  • Halogen free
    Yes
  • Number of compartments
    3
  • Material
    PC ABS
  • Width [mm]
    110
  • Operating temperature range [°C]
    from -30 to 90
  • Accurate color
    light gray
  • Number of chambers
    1
  • Number of clamps per running meter
    2
  • Length [mm]
    2000
  • Color
    Gray
  • Family
    TEHALIT.LFH
  • Height [mm]
    60
  • Surface finish
    Natural
  • Usable cross-section [mm²]
    5460
  • Protective film
    NO
  • PKWIU
    27.33.14.0

Other technical data

  • Height
    60 mm
  • Length
    2000 mm
  • Material
    Plastic
  • Halogen free
    Yes
  • Suitable for circuit integrity
    No
  • RAL-number
    7035
  • Number of plug-in partitions
    3
  • Cover model
    Loose
  • With protective foil
    No
  • Delivery on roll
    No
  • Width
    110 mm
  • Useful cross section
    5460 mm²
  • Material quality
    Other
  • Surface protection
    Untreated
  • Transparent
    No
  • Number of permanent partitions
    0
  • Type of fastening
    Bottom perforation
  • With cable fixing clip
    Yes
  • With duct connector
    Yes
  • Pre-stamping
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 16 pcs. 432 pcs.
Weight (kg) 0,950 15,800 449,600
Width (m) 0,110 0,270 0,800
Length (m) 0,060 0,170 2,050
Depth (m) 1,000 2,045 2,030
