TEHALIT.LFH Halogen-free wiring trunking 40x60 light grey LFH4006007035
local index:
TKP351TEHA
Catalog No:
LFH4006007035
EAN code:
4012740325110
Large-size product
Price:
23,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

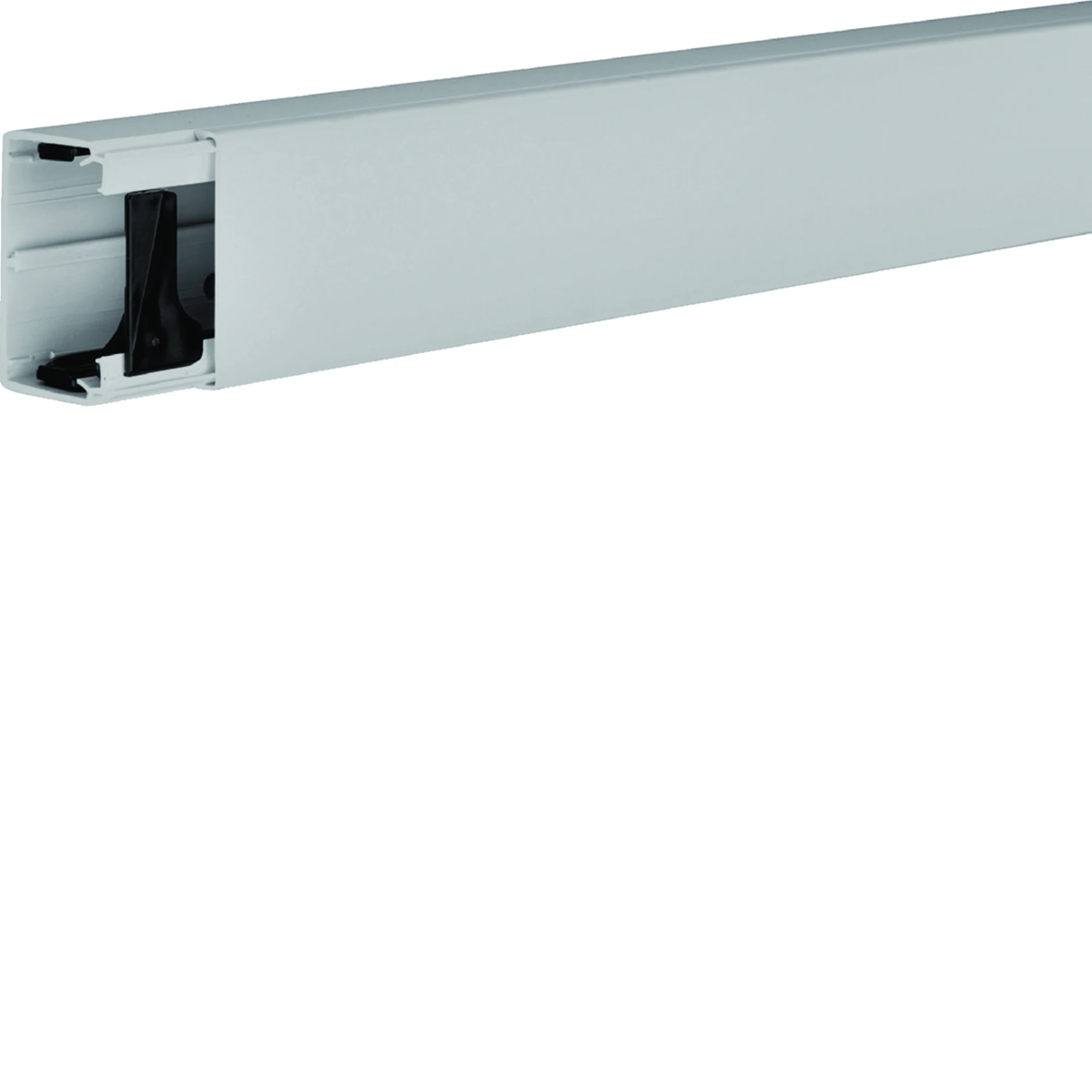

Halogen-free wiring trunking, made of PC/ABS, tehalit.LFh series.
Series characteristics:
Thanks to the integrated connectors, laying individual ducts is much easier and, at the same time, faster to perform, and the pre-installed, stable clamps make it easier to lay the cable in the ducts. tehalit.LF wiring ducts are an ideal solution for routing electrical cables in basements, service buildings, production halls, garages and industrial installations. The system of installation channels meets all the requirements for routing wires and cables, depending on the working conditions and guidelines for use.
Technical data
-
Halogen freeYes
-
Number of compartments1
-
MaterialPC ABS
-

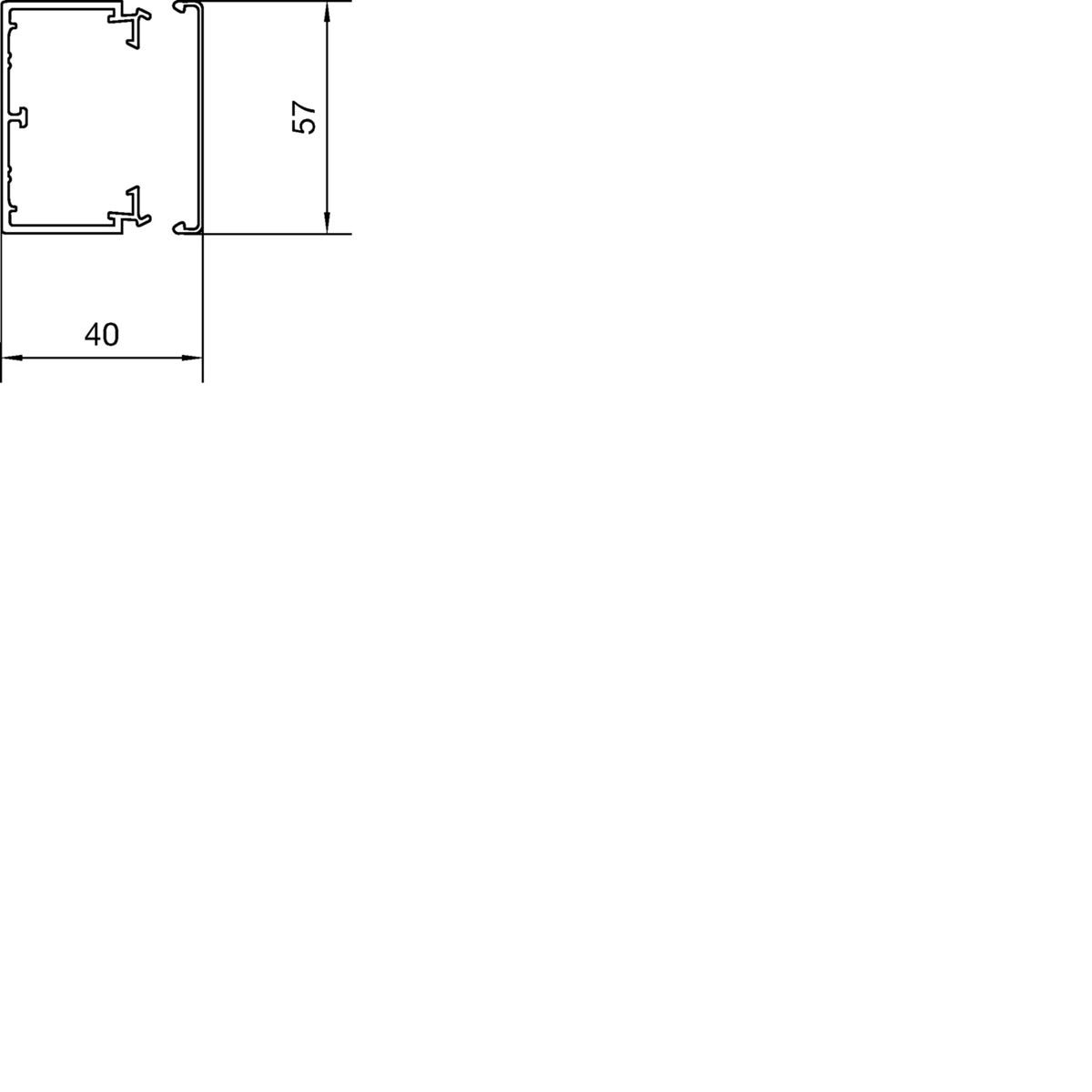

Width [mm]57
-
Operating temperature range [°C]from -30 to 90
-
Accurate colorlight gray
-
Number of chambers1
-
Number of clamps per running meter2
-
Length [mm]2000
-
ColorGray
-
FamilyTEHALIT.LFH
-
Height [mm]40
-
Surface finishNatural
-
Usable cross-section [mm²]1500
-
Protective filmNO
-
PKWIU27.33.14.0
Other technical data
-
Height40 mm
-
Length2000 mm
-
MaterialPlastic
-
Halogen freeYes
-
Suitable for circuit integrityNo
-
RAL-number7035
-
Number of plug-in partitions1
-
Cover modelLoose
-
With protective foilNo
-
Delivery on rollNo
-
Width57 mm
-
Useful cross section1500 mm²
-
Material qualityOther
-
Surface protectionUntreated
-
TransparentNo
-
Number of permanent partitions0
-
Type of fasteningBottom perforation
-
With cable fixing clipYes
-
With duct connectorYes
-
Pre-stampingNo
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 24 pcs. | 648 pcs. |
| Weight (kg) | 0,450 | 13,260 | 398,020 |
| Width (m) | 0,060 | 0,260 | 0,800 |
| Length (m) | 0,040 | 0,150 | 1,500 |
| Depth (m) | 1,000 | 2,045 | 2,045 |
