TEHALIT.LFF Channel with 40x110mm aluminum connectors LFF401100ALU

local index:
TKP343TEHA
Catalog No:
LFF401100ALU
EAN code:
4012740903776
Manufacturer: TEHALIT
Halogen free: NO
Length [mm]: 2000
Number of compartments: 3
Large-size product
Price:
68,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

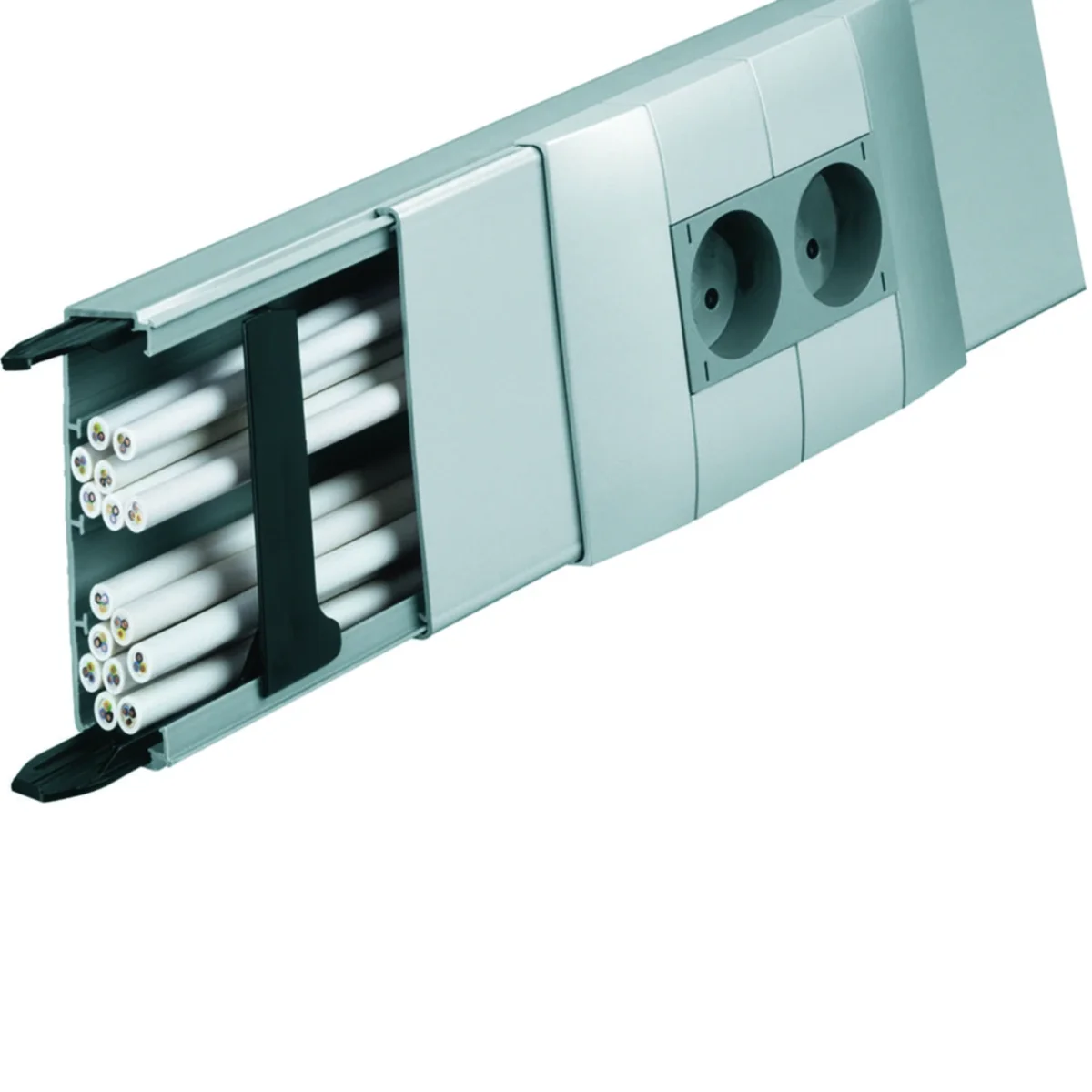

Duct with connectors from the tehalit.lifea (LFF) series.

Series characteristics:

The tehalit.lifea universal duct has all the advantages of a cable duct, such as: integrated connector, clamps, secure fastening of the cover, what's more, it also allows the installation of plug and IT sockets. Thanks to the complete palette of corners (external angle, internal angle, flat angle), the tehalit.lifea channel allows for extremely clean and quick installation. The internal and external corners have a wide range of adjustment of the bending angles, thanks to which they allow free adjustment and compensation of any unevenness on the walls of the room.

Technical data

  • Halogen free
    NO
  • Number of compartments
    3
  • Material
    PVC
  • Width [mm]
    110
  • Operating temperature range [°C]
    from -5 to 65
  • Usable cross-section [mm²]
    3250
  • Protective film
    Yes
  • PKWIU
    25.11.23.0
  • Length [mm]
    2000
  • Color
    White
  • Family
    TEHALIT.LFF
  • Height [mm]
    40
  • Surface finish
    Natural
  • Number of chambers
    1
  • Number of clamps per running meter
    2

Other technical data

  • Height
    40 mm
  • Length
    2000 mm
  • Material
    Plastic
  • Halogen free
    No
  • Suitable for circuit integrity
    No
  • Number of permanent partitions
    0
  • Type of fastening
    Bottom perforation
  • With cable fixing clip
    Yes
  • With duct connector
    Yes
  • Pre-stamping
    No
  • Width
    110 mm
  • Useful cross section
    3250 mm²
  • Material quality
    Polyvinyl chloride (PVC)
  • Surface protection
    Untreated
  • Transparent
    No
  • Number of plug-in partitions
    3
  • Cover model
    Loose
  • With protective foil
    Yes
  • Delivery on roll
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 10 pcs. 270 pcs.
Weight (kg) 1,000 23,880 669,760
Width (m) 0,110 0,260 0,800
Length (m) 0,040 0,160 1,640
Depth (m) 1,000 2,045 2,045
