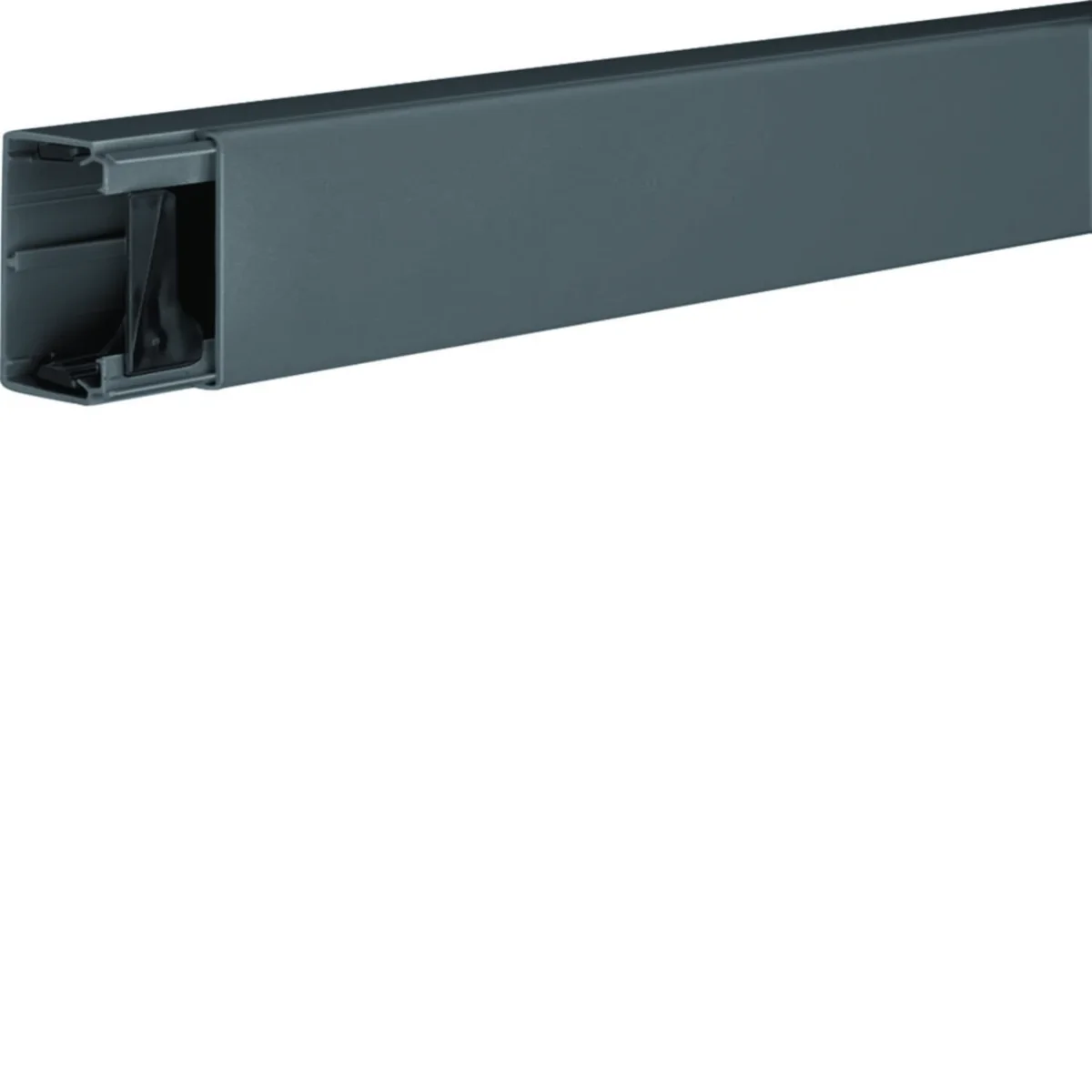

TEHALIT.LF Wiring trunking 40x60 black LF4006009011

Indice locale:
TKP068TEHA
Numero di catalogo:
LF4006009011
Codice EAN:
4012740856751
Produttore: TEHALIT
Halogen free: NO
Length [mm]: 2000
Number of compartments: 1
Prodotto di grandi dimensioni
Prezzo:
11,25 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 4 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Electrical installation trunking from the tehalit.LF series, whose accessories are used to assemble the trunking system.

Series characteristics:

Thanks to the integrated connectors, laying individual ducts is much easier and faster at the same time, and the pre-installed, stable clamps make it easier to lay the cable in the ducts. tehalit.LF wiring ducts are an ideal solution for routing electrical cables in basements, service buildings, production halls, garages and industrial installations. The system of installation channels meets all the requirements for routing wires and cables, depending on the working conditions and guidelines for use.

Dati tecnici

  • Halogen free
    NO
  • Number of compartments
    1
  • Material
    PVC
  • Width [mm]
    57
  • Operating temperature range [°C]
    from -5 to 65
  • Usable cross-section [mm²]
    1500
  • Protective film
    NO
  • PKWIU
    27.33.14.0
  • Length [mm]
    2000
  • Color
    Graphite
  • Family
    TEHALIT.LF
  • Height [mm]
    40
  • Surface finish
    Natural
  • Number of chambers
    1 to 2
  • Number of clamps per running meter
    2

Altri dati tecnici

  • Height
    40 mm
  • Length
    2000 mm
  • Material
    Plastic
  • Halogen free
    No
  • Suitable for circuit integrity
    No
  • Transparent
    No
  • Number of permanent partitions
    0
  • Type of fastening
    Bottom perforation
  • With cable fixing clip
    Yes
  • With duct connector
    Yes
  • Pre-stamping
    No
  • Width
    57 mm
  • Useful cross section
    1500 mm²
  • Material quality
    Polyvinyl chloride (PVC)
  • Surface protection
    Untreated
  • Colour
    Anthracite
  • RAL-number
    9011
  • Number of plug-in partitions
    1
  • Cover model
    Loose
  • With protective foil
    No
  • Delivery on roll
    No

Imballaggio sfuso

Una specie di pacchetto Karton Paleta
Quantità 1 pezzi 12 pezzi 324 pezzi
Peso (kg) 0,570 13,900 415,300
Larghezza (m) 0,057 0,260 0,800
Lunghezza (m) 0,040 0,150 1,500
Profondità (m) 1,000 2,045 2,045
