TEHALIT.LF PVC wiring trunking 60x190mm grey LF6019007030

Name: TEHALIT.LF PVC wiring trunking 60x190mm grey
Brand: TEHALIT
SKU: TKP246TEHA
Price: 42.56 PLN

local index:

TKP246TEHA

Catalog No:

LF6019007030

EAN code:

4012740875233

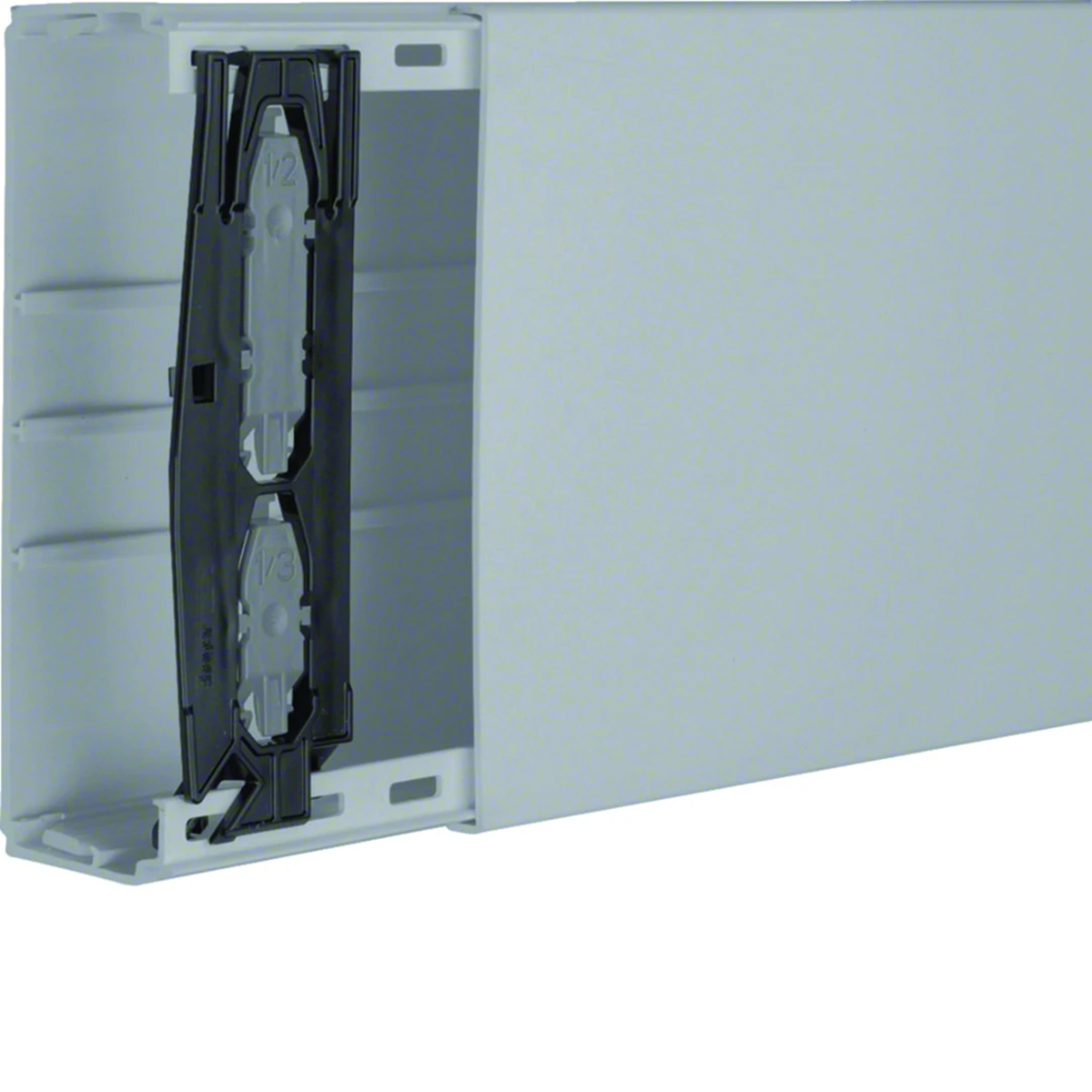

TEHALIT.LF PVC wiring trunking 60x190mm grey

Click on the photo to enlarge

Manufacturer: TEHALIT

Halogen free: NO

Length [mm]: 2000

Number of compartments: 3

See full description

Large-size product

Price:

42,56 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Electrical installation trunking from the tehalit.LF series, whose accessories are used to assemble the trunking system.

Series characteristics:

Thanks to the integrated connectors, laying individual ducts is much easier and faster at the same time, and the pre-installed, stable clamps make it easier to lay the cable in the ducts. tehalit.LF wiring ducts are an ideal solution for routing electrical cables in basements, service buildings, production halls, garages and industrial installations. The system of installation channels meets all the requirements for routing wires and cables, depending on the working conditions and guidelines for use.

Technical data

Halogen free

NO
Number of compartments

3
Family

TEHALIT.LF
Height [mm]

60
Surface finish

Natural
Number of chambers

1 to 4
Number of clamps per running meter

2

Length [mm]

2000
Material

PVC
Width [mm]

190
Operating temperature range [°C]

from -5 to 65
Usable cross-section [mm²]

9060
Protective film

NO
PKWIU

27.33.14.0

Other technical data

Height

60 mm
Length

2000 mm
Material

Plastic
Halogen free

No
Suitable for circuit integrity

No
RAL-number

7030
Number of plug-in partitions

3
Cover model

Loose
With protective foil

No
Delivery on roll

No

Width

190 mm
Useful cross section

9060 mm²
Material quality

Polyvinyl chloride (PVC)
Surface protection

Untreated
Transparent

No
Number of permanent partitions

0
Type of fastening

Bottom perforation
With cable fixing clip

No
With duct connector

Yes
Pre-stamping

No

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	4 pcs.	108 pcs.
Weight (kg)	2,124	19,100	555,700
Width (m)	0,190	0,260	0,800
Length (m)	0,060	0,160	1,640
Depth (m)	1,000	2,045	2,045
