TEHALIT.LF PVC wiring trunking 40x57mm light grey LF4006107035

Name: TEHALIT.LF PVC wiring trunking 40x57mm light grey
Brand: TEHALIT
SKU: TKP283TEHA
Price: 12.10 PLN

Indice locale:

TKP283TEHA

Numero di catalogo:

LF4006107035

Codice EAN:

4012740138000

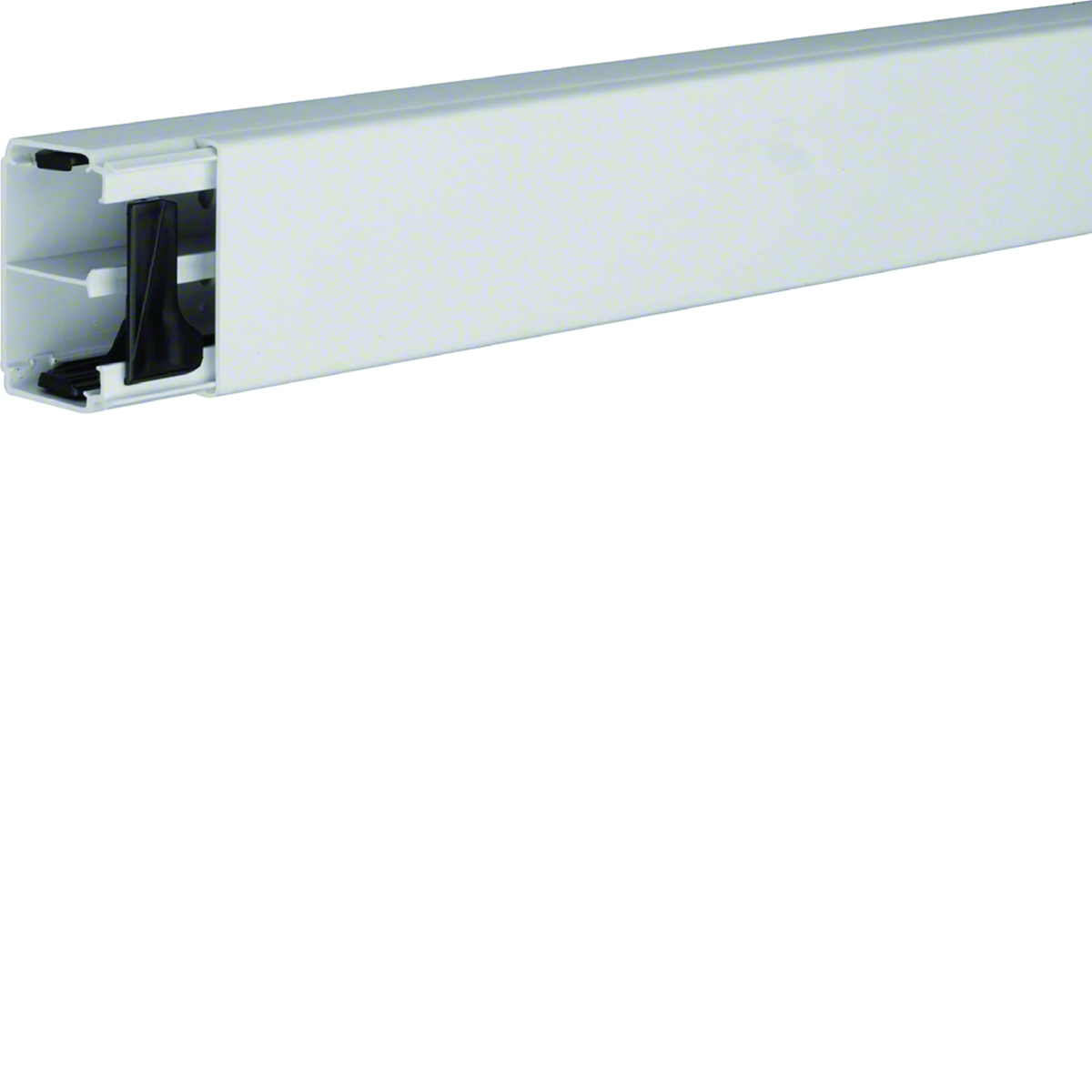

TEHALIT.LF PVC wiring trunking 40x57mm light grey

Clicca sulla foto per ingrandire

Produttore: TEHALIT

Halogen free: NO

Length [mm]: 2000

Color: Gray

Vedi la descrizione completa

Prodotto di grandi dimensioni

Prezzo:

12,10 €

gross / pezzi

(inclusa IVA 23%)

Consegna in 3 ore

fino a 4 settimane (giorni lavorativi)

Raccolta in 1h

Quantità pezzi

(multiplo:

)

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Electrical installation trunking from the tehalit.LF series, whose accessories are used to assemble the trunking system.

Series characteristics:

Thanks to the integrated connectors, laying individual ducts is much easier and faster at the same time, and the pre-installed, stable clamps make it easier to lay the cable in the ducts. tehalit.LF wiring ducts are an ideal solution for routing electrical cables in basements, service buildings, production halls, garages and industrial installations. The system of installation channels meets all the requirements for routing wires and cables, depending on the working conditions and guidelines for use.

Dati tecnici

Halogen free

NO
Color

Gray
Family

TEHALIT.LF
Height [mm]

40
Surface finish

Natural
Usable cross-section [mm²]

1660
Protective film

NO
PKWIU

27.33.14.0

Length [mm]

2000
Material

PVC
Width [mm]

57
Operating temperature range [°C]

from -5 to 65
Accurate color

light gray
Number of chambers

2
Number of clamps per running meter

2

Altri dati tecnici

Height

40 mm
Length

2000 mm
Material

Plastic
Halogen free

No
Suitable for circuit integrity

No
RAL-number

7035
Number of plug-in partitions

0
Cover model

Loose
With protective foil

No
Delivery on roll

No

Width

57 mm
Useful cross section

1660 mm²
Material quality

Polyvinyl chloride (PVC)
Surface protection

Untreated
Transparent

No
Number of permanent partitions

1
Type of fastening

Bottom perforation
With cable fixing clip

Yes
With duct connector

Yes
Pre-stamping

No

Dettagli del produttore

Produttore

HAGER POLO Sp. z o. o.
Indirizzo

43-100 Tychy Fabryczna 10
NIP

6460015532

Imballaggio sfuso

Una specie di pacchetto	Karton	Paleta	Karton	Paleta
Quantità	12 pezzi	324 pezzi	12 pezzi	324 pezzi
Peso (kg)	13,800	412,600	13,800	412,600
Larghezza (m)	0,260	0,800	0,260	0,800
Lunghezza (m)	0,150	1,500	0,150	1,500
Profondità (m)	2,045	2,045	2,045	2,045
