TEHALIT.LF PVC wiring trunking 40x40mm light grey LF4004007035

Name: TEHALIT.LF PVC wiring trunking 40x40mm light grey
Brand: TEHALIT
SKU: TKP229TEHA
Price: 7.70 PLN

local index:

TKP229TEHA

Catalog No:

LF4004007035

EAN code:

4012740149501

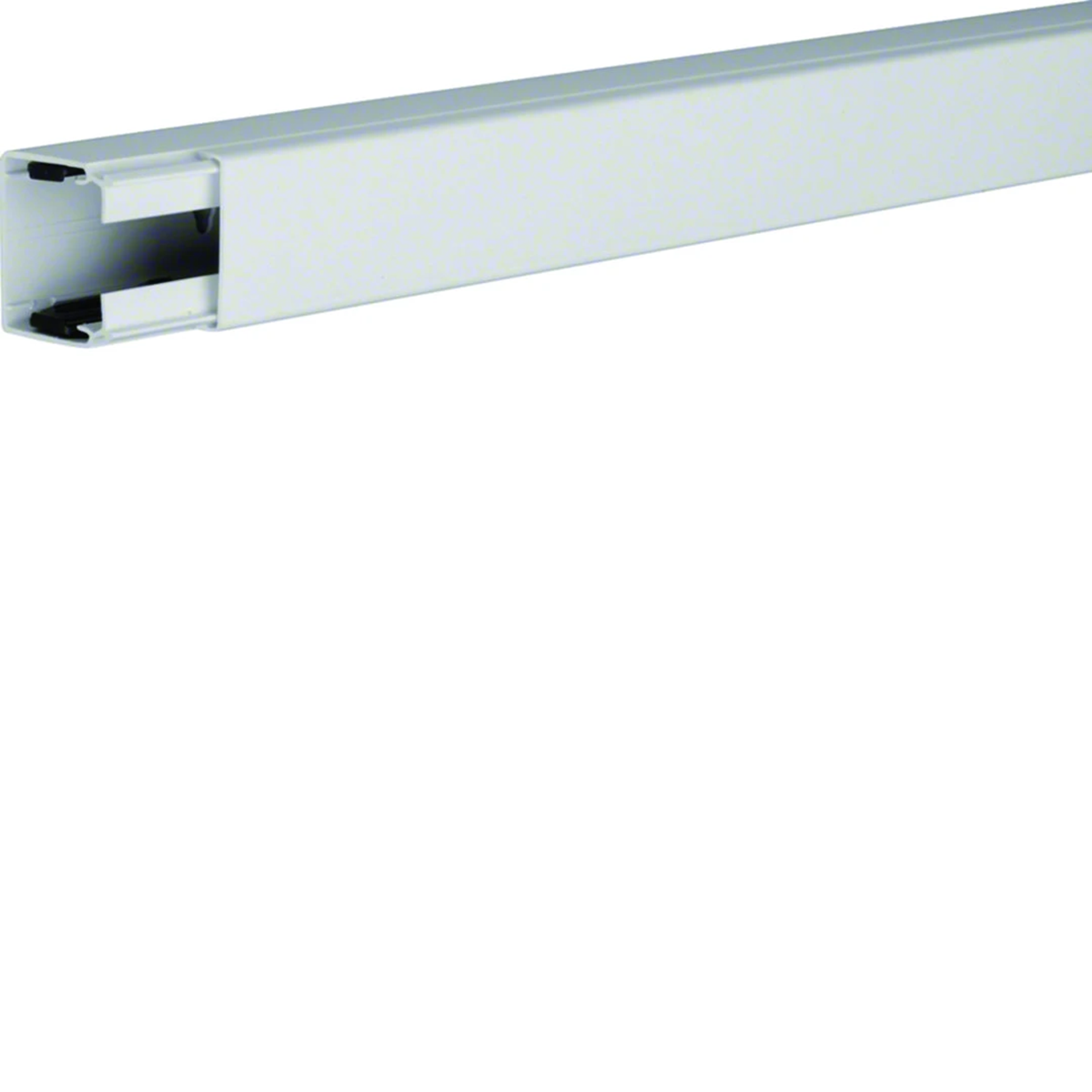

TEHALIT.LF PVC wiring trunking 40x40mm light grey

Click on the photo to enlarge

Manufacturer: TEHALIT

Halogen free: NO

Length [mm]: 2000

Color: Gray

See full description

Large-size product

Price:

7,70 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Electrical installation trunking from the tehalit.LF series, whose accessories are used to assemble the trunking system.

Series characteristics:

Thanks to the integrated connectors, laying individual ducts is much easier and faster at the same time, and the pre-installed, stable clamps make it easier to lay the cable in the ducts. tehalit.LF wiring ducts are an ideal solution for routing electrical cables in basements, service buildings, production halls, garages and industrial installations. The system of installation channels meets all the requirements for routing wires and cables, depending on the working conditions and guidelines for use.

Technical data

Halogen free

NO
Color

Gray
Family

TEHALIT.LF

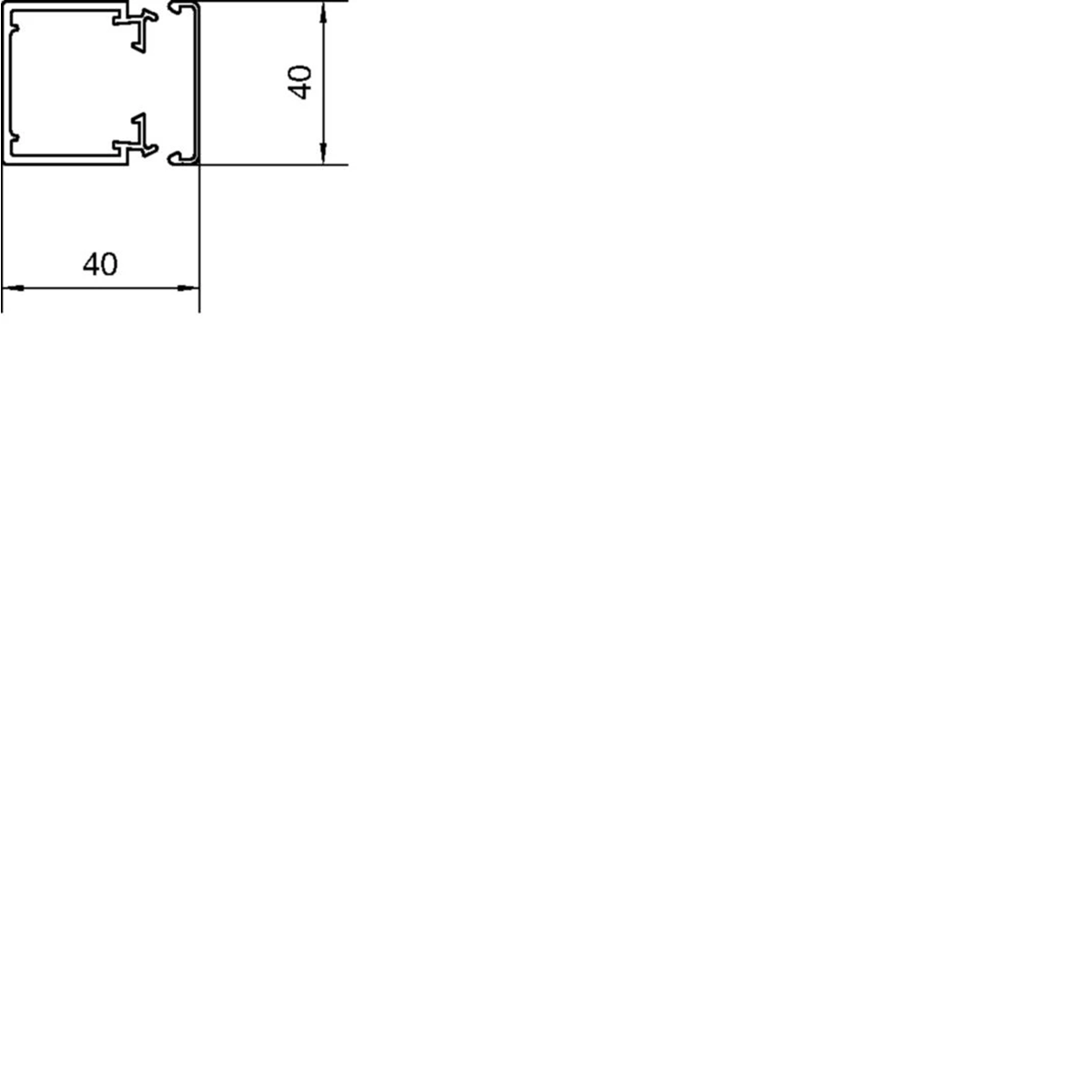

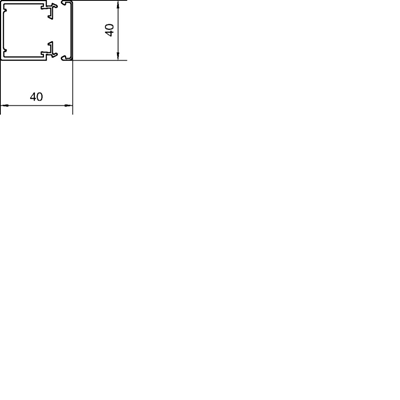

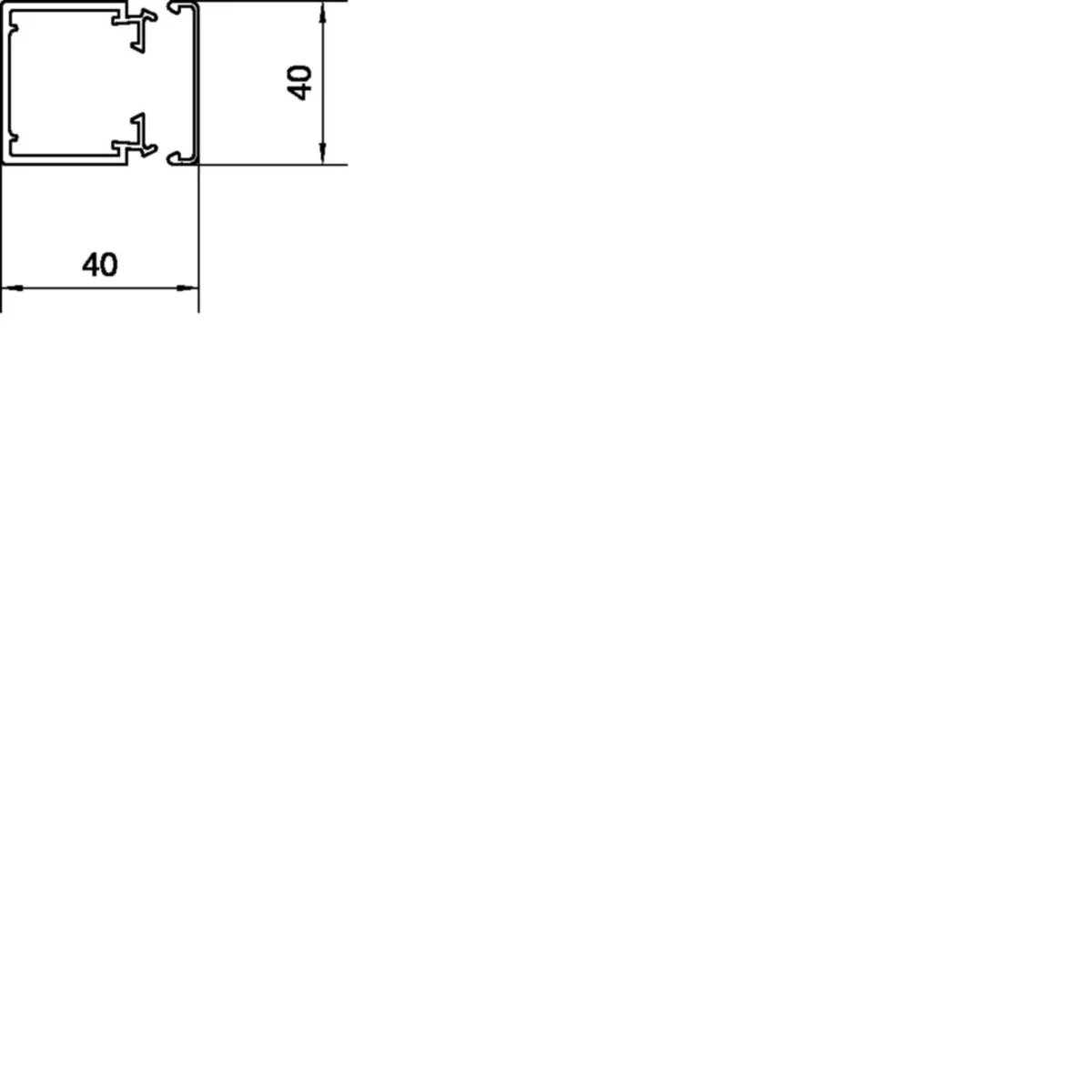

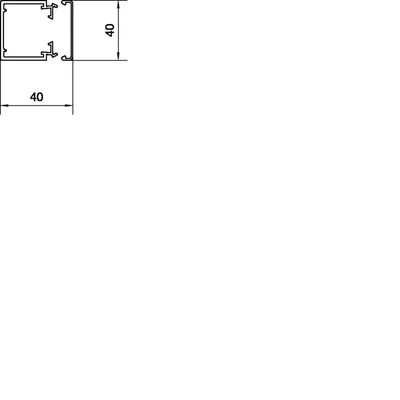

Height [mm]

40
Surface finish

Natural
Usable cross-section [mm²]

900
Protective film

NO

Length [mm]

2000
Material

PVC
Width [mm]

40
Operating temperature range [°C]

from -5 to 65
Accurate color

light gray
Number of chambers

1
PKWIU

27.33.14.0

Other technical data

Height

40 mm
Length

2000 mm
Material

Plastic
Halogen free

No
Suitable for circuit integrity

No
RAL-number

7035
Number of plug-in partitions

0
Cover model

Loose
With protective foil

No
Delivery on roll

No

Width

40 mm
Useful cross section

900 mm²
Material quality

Polyvinyl chloride (PVC)
Surface protection

Untreated
Transparent

No
Number of permanent partitions

0
Type of fastening

Bottom perforation
With cable fixing clip

No
With duct connector

Yes
Pre-stamping

No

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	16 pcs.	528 pcs.
Weight (kg)	0,423	13,570	487,810
Width (m)	0,040	0,260	0,800
Length (m)	0,040	0,130	1,630
Depth (m)	1,000	2,045	2,045
