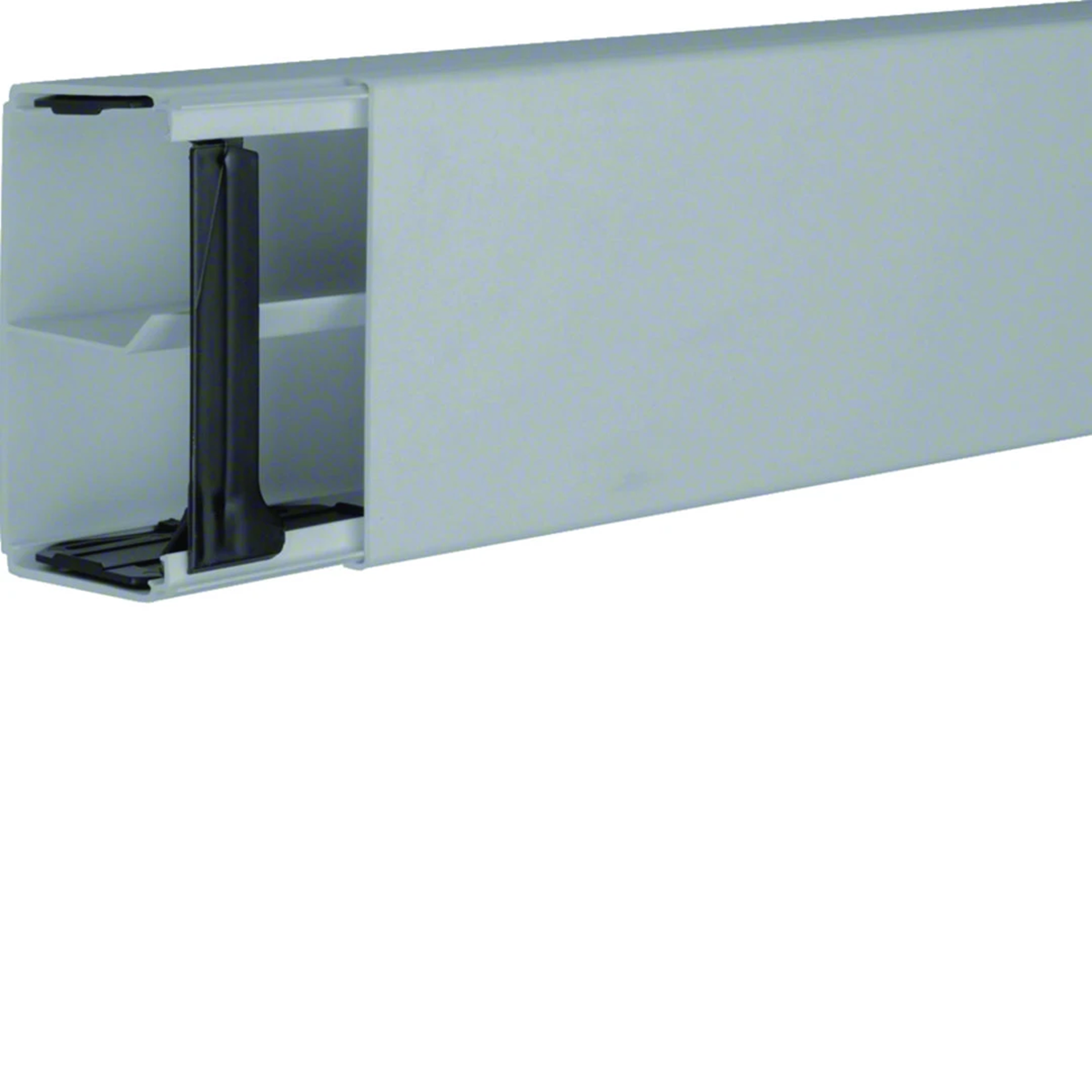

TEHALIT.LF PVC wiring trunking 40x111mm grey LF6011107030

Indeks lokalny:
TKP279TEHA
Nr katalogowy:
LF6011107030
Kod EAN:
4012740100281
Producent: TEHALIT
Halogen free: NO
Length [mm]: 2000
Color: Gray
Produkt wielkogabarytowy
Cena:
25,67 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
do 4 tygodni (dni robocze)
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

Electrical installation trunking from the tehalit.LF series, whose accessories are used to assemble the trunking system.

Series characteristics:

Thanks to the integrated connectors, laying individual ducts is much easier and faster at the same time, and the pre-installed, stable clamps make it easier to lay the cable in the ducts. tehalit.LF wiring ducts are an ideal solution for routing electrical cables in basements, service buildings, production halls, garages and industrial installations. The system of installation channels meets all the requirements for routing wires and cables, depending on the working conditions and guidelines for use.

Dane techniczne

  • Halogen free
    NO
  • Color
    Gray
  • Family
    TEHALIT.LF

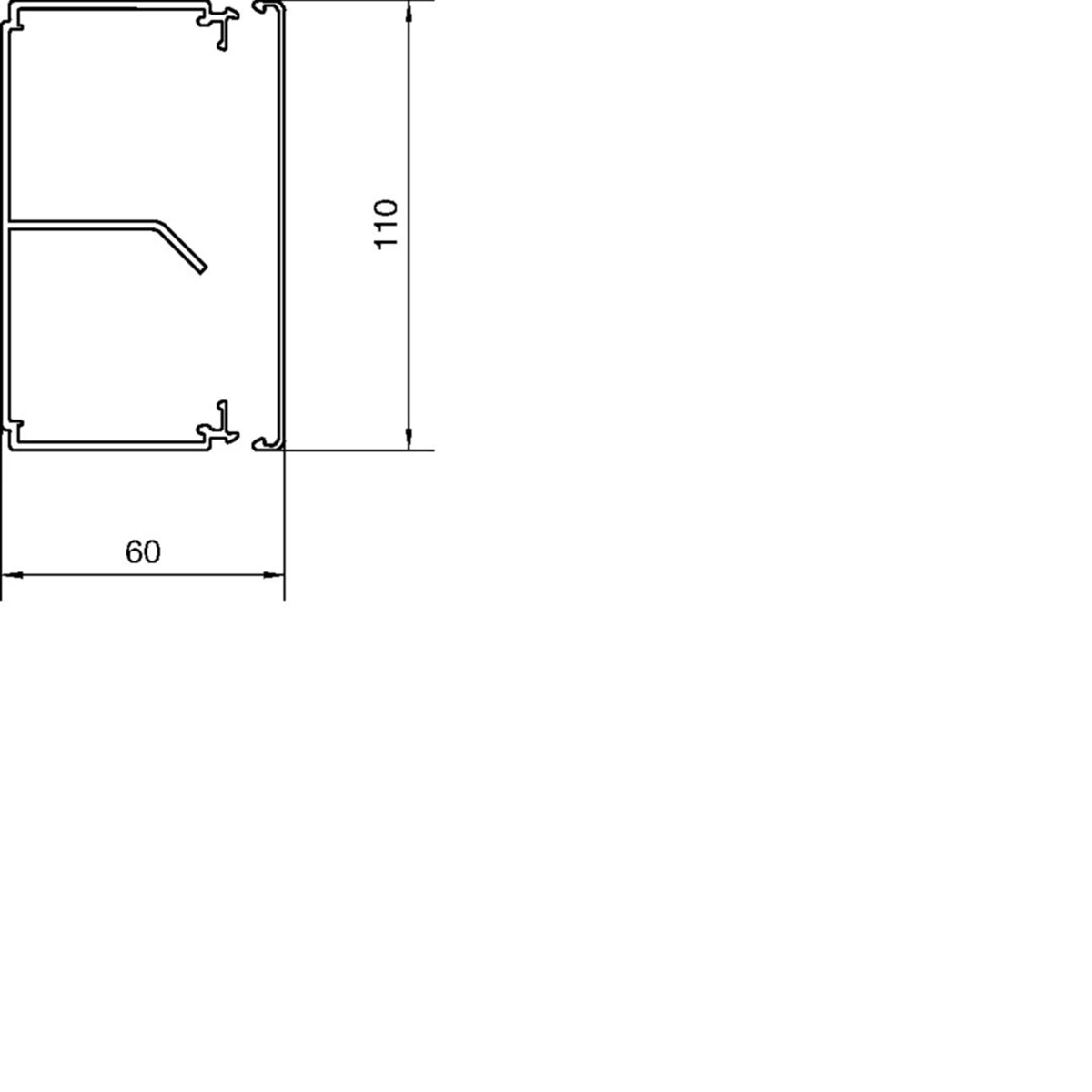

  • Height [mm]
    60
  • Surface finish
    Natural
  • Number of chambers
    2
  • Number of clamps per running meter
    2
  • Length [mm]
    2000
  • Material
    PVC
  • Width [mm]
    110
  • Operating temperature range [°C]
    from -5 to 65
  • Usable cross-section [mm²]
    5350
  • Protective film
    NO
  • PKWIU
    27.33.14.0

Pozostałe dane techniczne

  • Height
    60 mm
  • Length
    2000 mm
  • Material
    Plastic
  • Halogen free
    No
  • Suitable for circuit integrity
    No
  • RAL-number
    7030
  • Number of plug-in partitions
    0
  • Cover model
    Loose
  • With protective foil
    No
  • Delivery on roll
    No
  • Width
    110 mm
  • Useful cross section
    5350 mm²
  • Material quality
    Polyvinyl chloride (PVC)
  • Surface protection
    Untreated
  • Transparent
    No
  • Number of permanent partitions
    1
  • Type of fastening
    Bottom perforation
  • With cable fixing clip
    Yes
  • With duct connector
    Yes
  • Pre-stamping
    No

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Karton Paleta Karton Paleta
Ilość 8 szt. 216 szt. 8 szt. 216 szt.
Waga (kg) 19,740 533,080 19,740 533,080
Szerokość (m) 0,260 0,800 0,260 0,800
Długość (m) 0,160 1,640 0,160 1,640
Głębokość (m) 2,040 2,040 2,040 2,040
