TEHALIT.LF PVC wiring trunking 40x110mm grey LF4011007030

Name: TEHALIT.LF PVC wiring trunking 40x110mm grey
Brand: TEHALIT
SKU: TKP228TEHA
Price: 22.48 PLN

local index:

TKP228TEHA

Catalog No:

LF4011007030

EAN code:

4012740100090

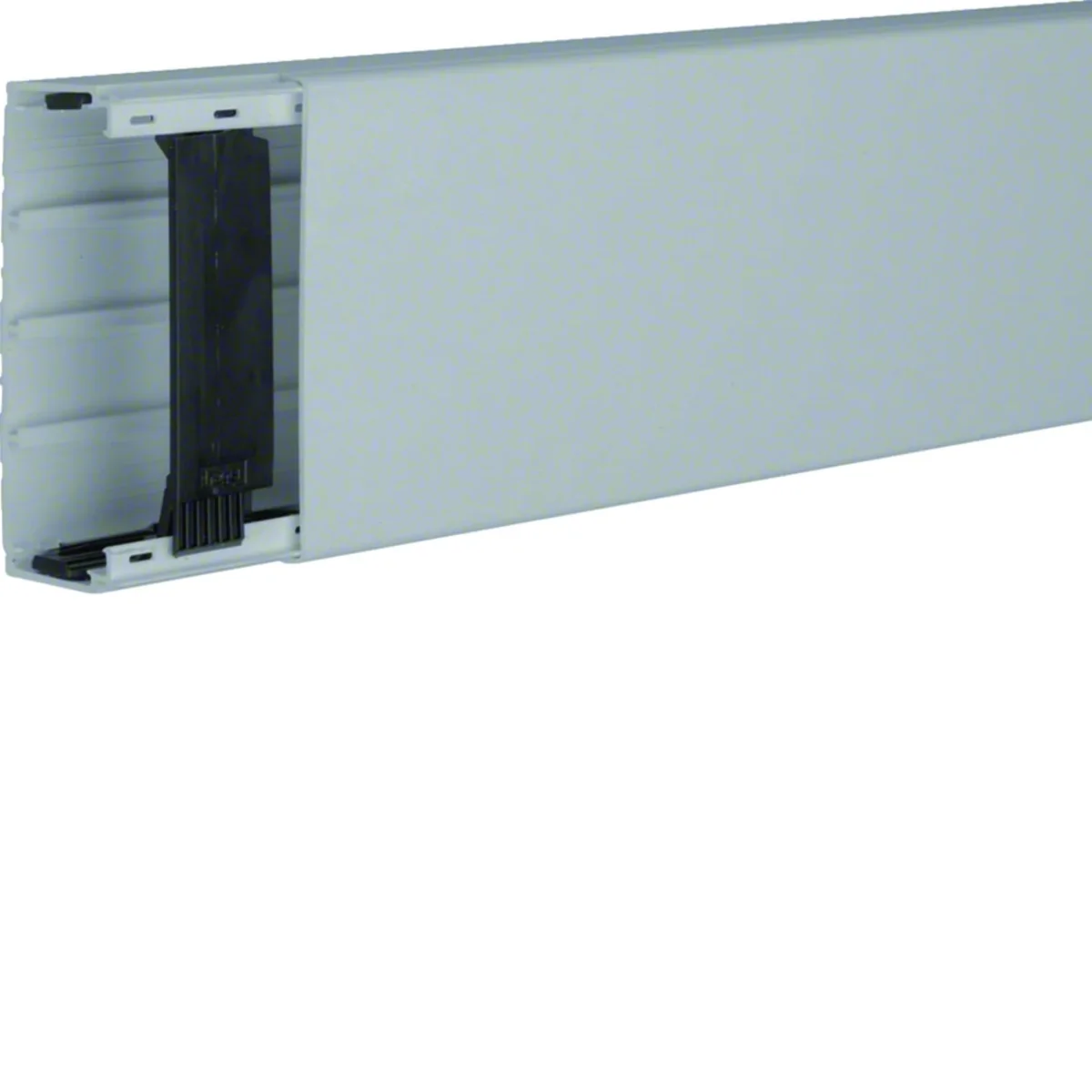

TEHALIT.LF PVC wiring trunking 40x110mm grey

Click on the photo to enlarge

Manufacturer: TEHALIT

Halogen free: NO

Length [mm]: 2000

Number of compartments: 3

See full description

Large-size product

Price:

22,48 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Electrical installation trunking from the tehalit.LF series, whose accessories are used to assemble the trunking system.

Series characteristics:

Thanks to the integrated connectors, laying individual ducts is much easier and faster at the same time, and the pre-installed, stable clamps make it easier to lay the cable in the ducts. tehalit.LF wiring ducts are an ideal solution for routing electrical cables in basements, service buildings, production halls, garages and industrial installations. The system of installation channels meets all the requirements for routing wires and cables, depending on the working conditions and guidelines for use.

Technical data

Halogen free

NO
Number of compartments

3
Material

PVC
Width [mm]

110
Operating temperature range [°C]

from -5 to 65
Usable cross-section [mm²]

3115
Protective film

NO
PKWIU

27.33.14.0

Length [mm]

2000
Color

Gray
Family

TEHALIT.LF
Height [mm]

40
Surface finish

Natural
Number of chambers

1 to 4
Number of clamps per running meter

2

Other technical data

Height

40 mm
Length

2000 mm
Material

Plastic
Halogen free

No
Suitable for circuit integrity

No
RAL-number

7030
Number of plug-in partitions

3
Cover model

Loose
With protective foil

No
Delivery on roll

No

Width

110 mm
Useful cross section

3115 mm²
Material quality

Polyvinyl chloride (PVC)
Surface protection

Untreated
Transparent

No
Number of permanent partitions

0
Type of fastening

Bottom perforation
With cable fixing clip

Yes
With duct connector

Yes
Pre-stamping

No

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	8 pcs.	264 pcs.
Weight (kg)	1,043	16,710	591,430
Width (m)	0,110	0,260	0,800
Length (m)	0,040	0,130	1,630
Depth (m)	1,000	2,045	2,045
