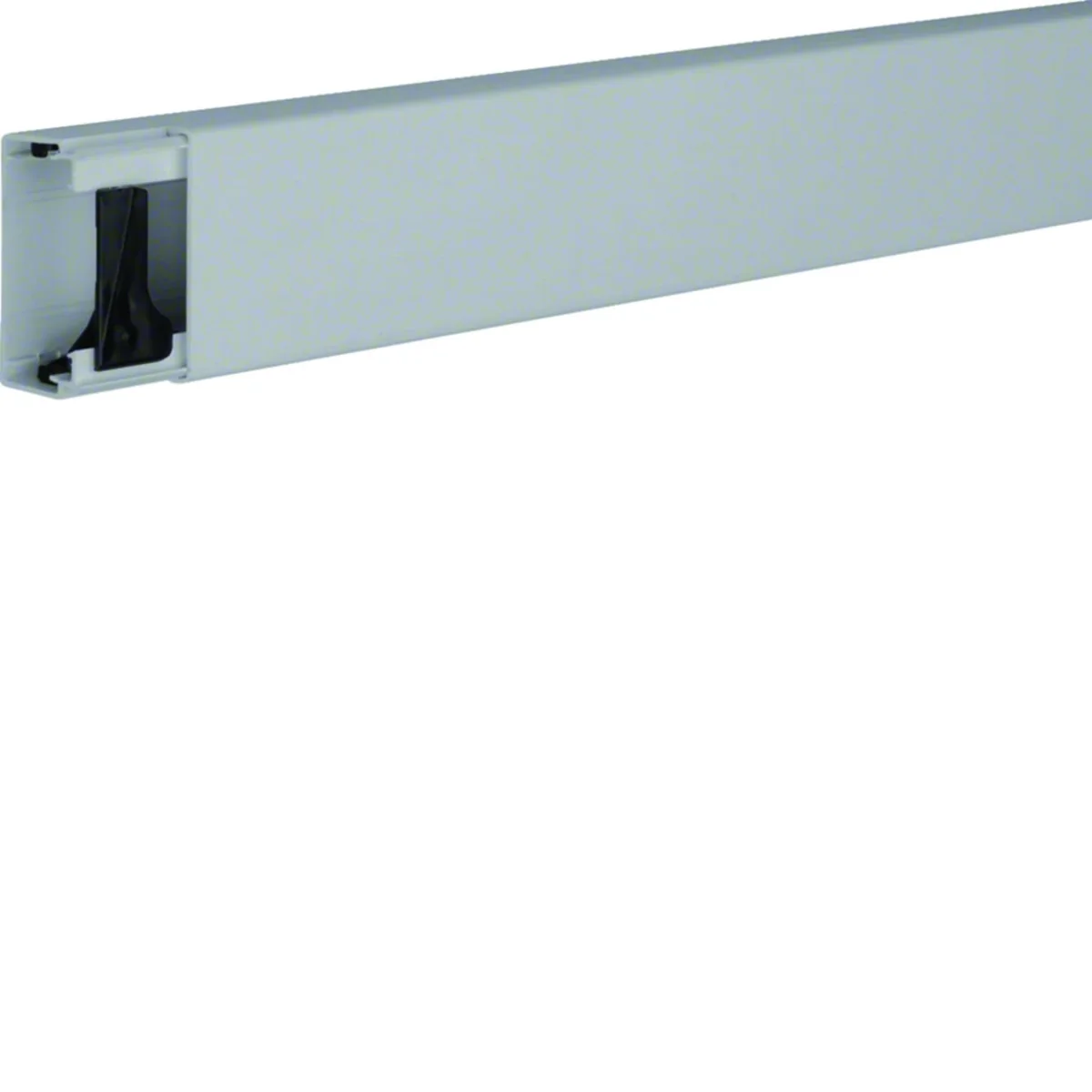

TEHALIT.LF PVC wiring trunking 30x57mm grey LF3006007030

local index:
TKP225TEHA
Catalog No:
LF3006007030
EAN code:
4012740138093
Manufacturer: TEHALIT
Halogen free: NO
Length [mm]: 2000
Color: Gray
Large-size product
Price:
8,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electrical installation trunking from the tehalit.LF series, whose accessories are used to assemble the trunking system.

Series characteristics:

Thanks to the integrated connectors, laying individual ducts is much easier and faster at the same time, and the pre-installed, stable clamps make it easier to lay the cable in the ducts. tehalit.LF wiring ducts are an ideal solution for routing electrical cables in basements, service buildings, production halls, garages and industrial installations. The system of installation channels meets all the requirements for routing wires and cables, depending on the working conditions and guidelines for use.

Technical data

  • Halogen free
    NO
  • Color
    Gray
  • Family
    TEHALIT.LF
  • Height [mm]
    thirty
  • Surface finish
    Natural
  • Number of chambers
    1
  • Number of clamps per running meter
    2
  • Length [mm]
    2000
  • Material
    PVC
  • Width [mm]
    57
  • Operating temperature range [°C]
    from -5 to 65
  • Usable cross-section [mm²]
    1500
  • Protective film
    NO
  • PKWIU
    27.33.14.0

Other technical data

  • Height
    30 mm
  • Length
    2000 mm
  • Material
    Plastic
  • Halogen free
    No
  • Suitable for circuit integrity
    No
  • RAL-number
    7030
  • Number of plug-in partitions
    0
  • Cover model
    Loose
  • With protective foil
    No
  • Delivery on roll
    No
  • Width
    57 mm
  • Useful cross section
    1500 mm²
  • Material quality
    Polyvinyl chloride (PVC)
  • Surface protection
    Untreated
  • Transparent
    No
  • Number of permanent partitions
    0
  • Type of fastening
    Bottom perforation
  • With cable fixing clip
    Yes
  • With duct connector
    Yes
  • Pre-stamping
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 16 pcs. 432 pcs.
Weight (kg) 0,453 15,360 454,720
Width (m) 0,057 0,260 0,800
Length (m) 0,030 0,150 1,500
Depth (m) 1,000 2,045 2,045
