TEHALIT.LF PVC wiring trunking 20x20mm grey LF2002007030

Name: TEHALIT.LF PVC wiring trunking 20x20mm grey
Brand: TEHALIT
SKU: TKP081TEHA
Price: 10.82 PLN
Availability: BackOrder

Index local:

TKP081TEHA

Numéro de catalogue:

LF2002007030

Code EAN:

4012740100205

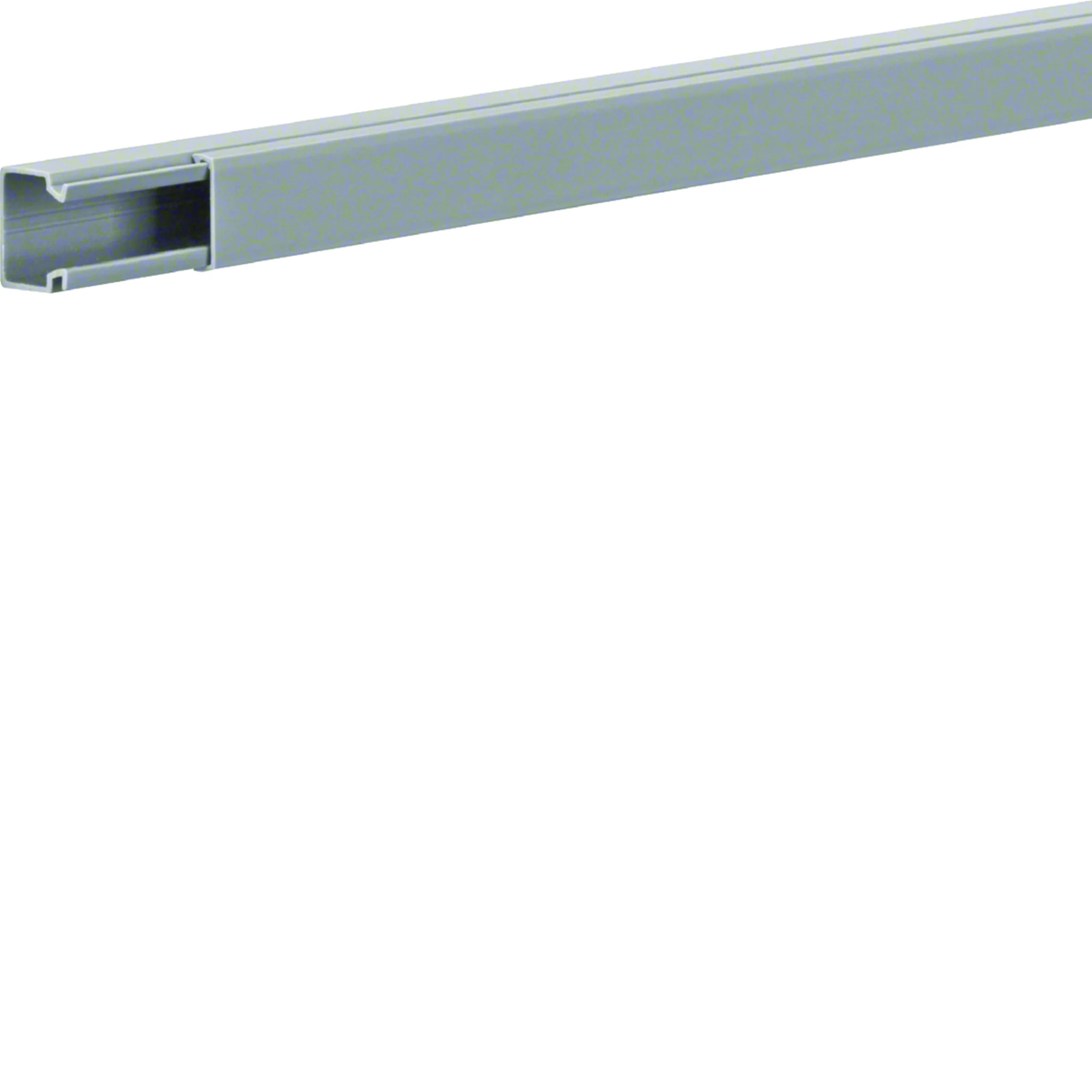

TEHALIT.LF PVC wiring trunking 20x20mm grey

Cliquer sur la photo pour l'agrandir

Producteur: TEHALIT

Halogen free: NO

Length [mm]: 2000

Color: Gray

Voir la description complète

Produit de grande taille

Prix:

10,82 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Electrical installation trunking from the tehalit.LF series, whose accessories are used to assemble the trunking system.

Series characteristics:

Thanks to the integrated connectors, laying individual ducts is much easier and faster at the same time, and the pre-installed, stable clamps make it easier to lay the cable in the ducts. tehalit.LF wiring ducts are an ideal solution for routing electrical cables in basements, service buildings, production halls, garages and industrial installations. The system of installation channels meets all the requirements for routing wires and cables, depending on the working conditions and guidelines for use.

Données techniques

Halogen free

NO
Color

Gray
Family

TEHALIT.LF

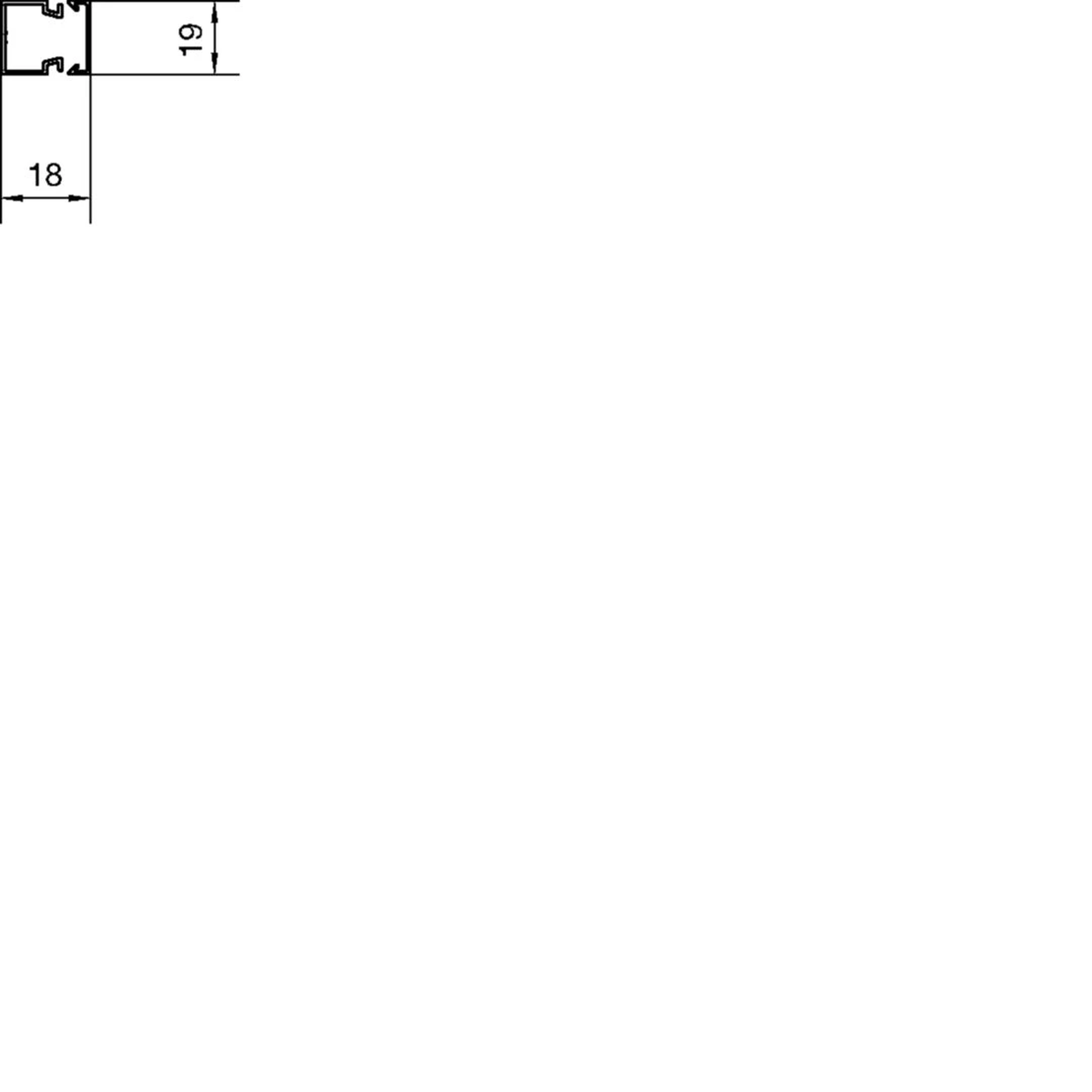

Height [mm]

20
Surface finish

Natural
Number of chambers

1
PKWIU

27.33.14.0

Length [mm]

2000
Material

PVC
Width [mm]

19
Operating temperature range [°C]

from -5 to 65
Usable cross-section [mm²]

228
Protective film

NO

Autres données techniques

Height

18 mm
Length

2000 mm
Material

Plastic
Halogen free

No
Suitable for circuit integrity

No
RAL-number

7030
Number of plug-in partitions

0
Cover model

Loose
With protective foil

No
Delivery on roll

No

Width

19 mm
Useful cross section

228 mm²
Material quality

Polyvinyl chloride (PVC)
Surface protection

Untreated
Transparent

No
Number of permanent partitions

0
Type of fastening

Bottom perforation
With cable fixing clip

No
With duct connector

No
Pre-stamping

No

Détails du fabricant

Producteur

Tehalit GmbH
Adresse

67716 Heltersberg Seebergstrasse 37 Niemcy
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Paleta	Karton	Paleta
Quantité	18 pcs.	2016 pcs.	18 pcs.	2016 pcs.
poids (kg)	5,040	564,480	5,040	564,480
Largeur (m)	0,180	0,800	0,180	0,800
Longueur (m)	0,050	1,600	0,050	1,600
Profondeur (m)	2,020	2,020	2,020	2,020
