TEHALIT

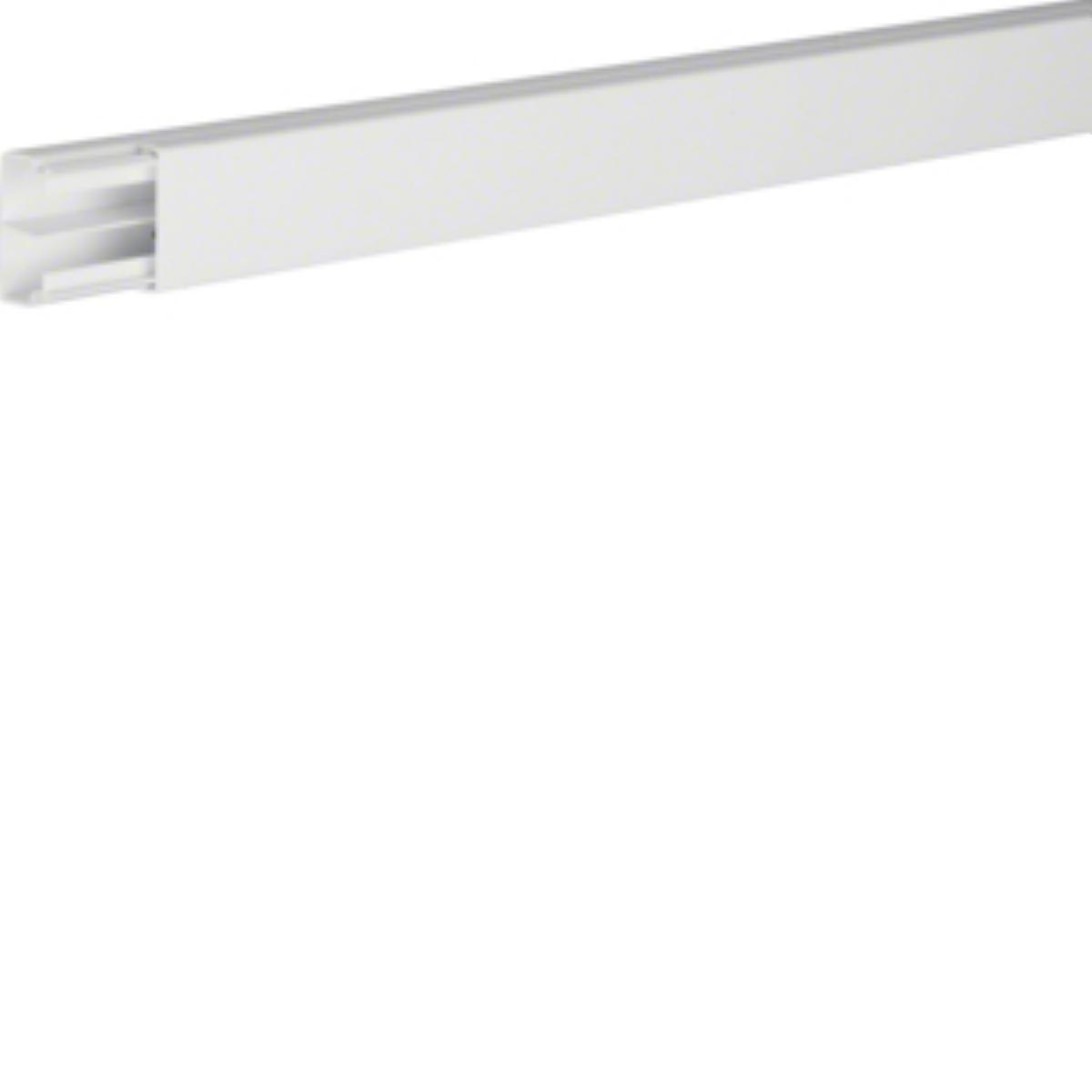

TEHALIT.LF PVC electrical installation trunking 20x35mm, two-chamber white LF2003609010

local index:
TKP071TEHA
Catalog No:
LF2003609010
EAN code:
4012740335003
Price:
9,08 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 12 pcs.
Delivery:
Large-size product
From 69,45 € (prepaid courier) Details
Estimated delivery time:
DHL 1-3 business days

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Electrical installation trunking two-chamber, from the tehalit.LF series, the accessories of which are used to assemble the duct system.

Series characteristics:

Thanks to the integrated connectors, laying individual ducts is much easier and, at the same time, faster to perform, and the pre-installed, stable clamps make it easier to lay the cable in the ducts. tehalit.LF wiring ducts are an ideal solution for routing electrical cables in basements, service buildings, production halls, garages and industrial installations. The system of installation channels meets all the requirements for routing wires and cables, depending on the working conditions and guidelines for use.

Technical data

  • Halogen free
    NO
  • Color
    White
  • Family
    TEHALIT.LF
  • Height [mm]
    20
  • Surface finish
    Natural
  • Number of chambers
    2
  • Length [mm]
    2000
  • Material
    PVC
  • Width [mm]
    33
  • Operating temperature range [°C]
    from -5 to 65
  • Usable cross-section [mm²]
    420
  • Protective film
    NO

Other technical data

  • Height
    20 mm
  • Length
    2000 mm
  • Material
    Plastic
  • Halogen free
    no
  • Suitable for circuit integrity
    no
  • RAL-number
    9010
  • Number of plug-in partitions
    0
  • Cover model
    Loose
  • With protective foil
    no
  • Delivery on roll
    no
  • Width
    33 mm
  • Useful cross section
    420 mm²
  • Material quality
    Polyvinyl chloride (PVC)
  • Surface protection
    Untreated
  • Transparent
    no
  • Number of permanent partitions
    1
  • Type of fastening
    Bottom perforation
  • With cable fixing clip
    no
  • With duct connector
    no
  • Pre-stamping
    no
