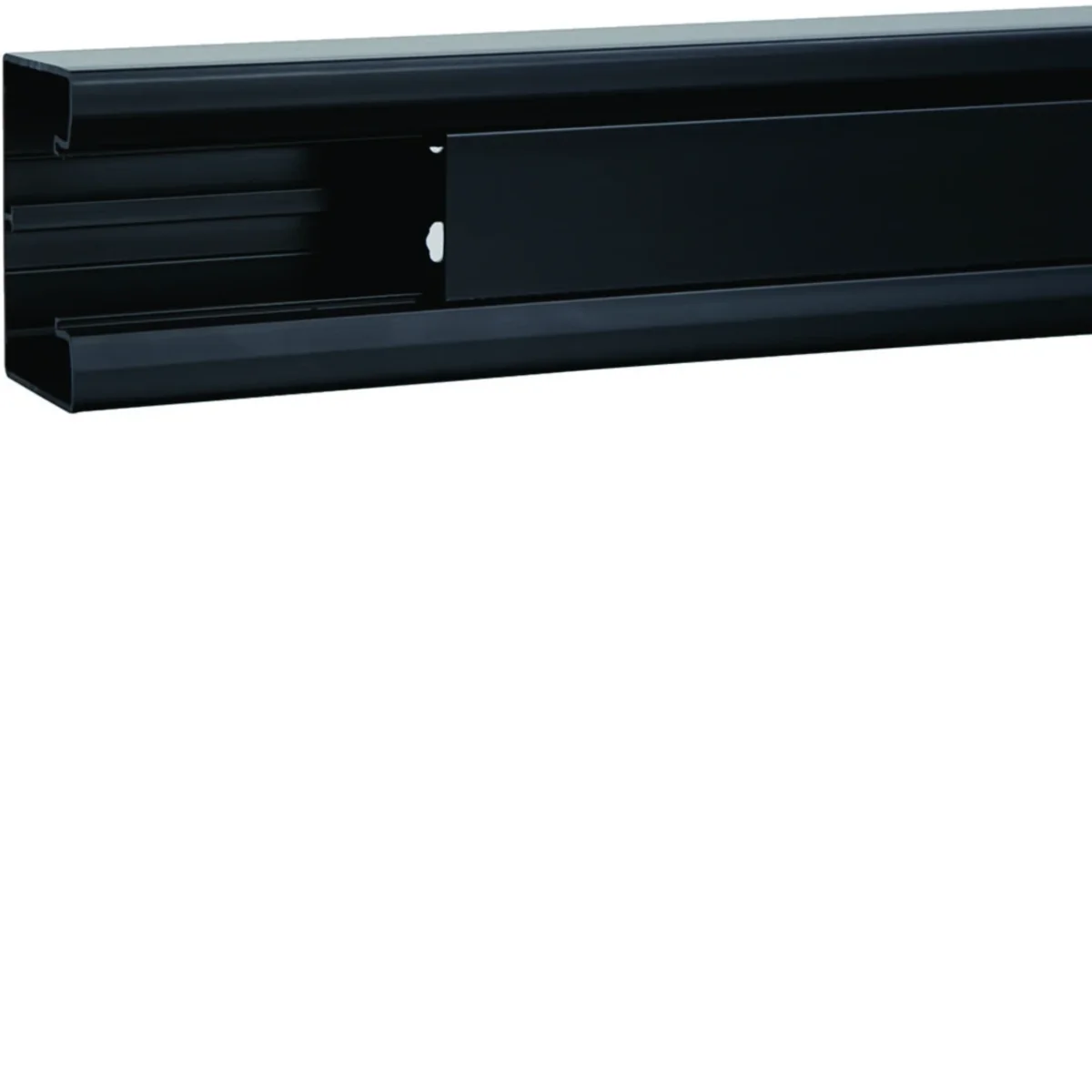

TEHALIT.GBD Wiring trunking 50x85mm black GBD5008509011

local index:
TKP263TEHA
Catalog No:
GBD5008509011
EAN code:
4012740856287
Manufacturer: TEHALIT
Halogen free: NO
Length [mm]: 2000
Number of compartments: 1
Large-size product
Price:
37,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electrical installation trunking from the TEHALIT.GBD series.

Technical data

  • Halogen free
    NO
  • Number of compartments
    1
  • Material
    PVC
  • Family
    TEHALIT.GBD
  • Cover width [mm]
    45
  • Operating temperature range [°C]
    from -5 to 60
  • Usable cross-section [mm²]
    4500
  • Protective film
    Yes
  • PKWIU
    27.33.14.0
  • Length [mm]
    2000
  • Color
    Graphite
  • Compatible product
    Standard 45x45mm
  • Width [mm]
    85
  • Height [mm]
    56
  • Surface finish
    Natural
  • Number of chambers
    1 to 2
  • Number of covers that can be fitted
    1

Other technical data

  • Width
    85 mm
  • Length
    2000 mm
  • Covers supplied with the product
    Yes
  • Cover width 2
    0 mm
  • Symmetric
    Yes
  • Material
    Plastic
  • Halogen free
    No
  • Colour
    Black
  • Construction rear wall (inner side)
    Continuous other profile
  • Number of plug-in partitions
    1
  • Bottom perforation
    Yes
  • With cable fixing clip
    No
  • Depth
    56 mm
  • Number of covers
    1
  • Cover width 1
    45 mm
  • Cover width 3
    0 mm
  • Construction type rectangular
    Yes
  • Material quality
    Polyvinyl chloride (PVC)
  • Surface protection
    Untreated
  • RAL-number
    9011
  • With protective foil
    Yes
  • With duct connector
    Yes
  • Mounting method cover
    Inner lying
  • Useful cross section
    4500 mm²

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 8 pcs. 216 pcs.
Weight (kg) 0,991 16,500 485,500
Width (m) 0,054 0,260 0,800
Length (m) 0,085 0,160 1,640
Depth (m) 1,000 2,045 2,045
