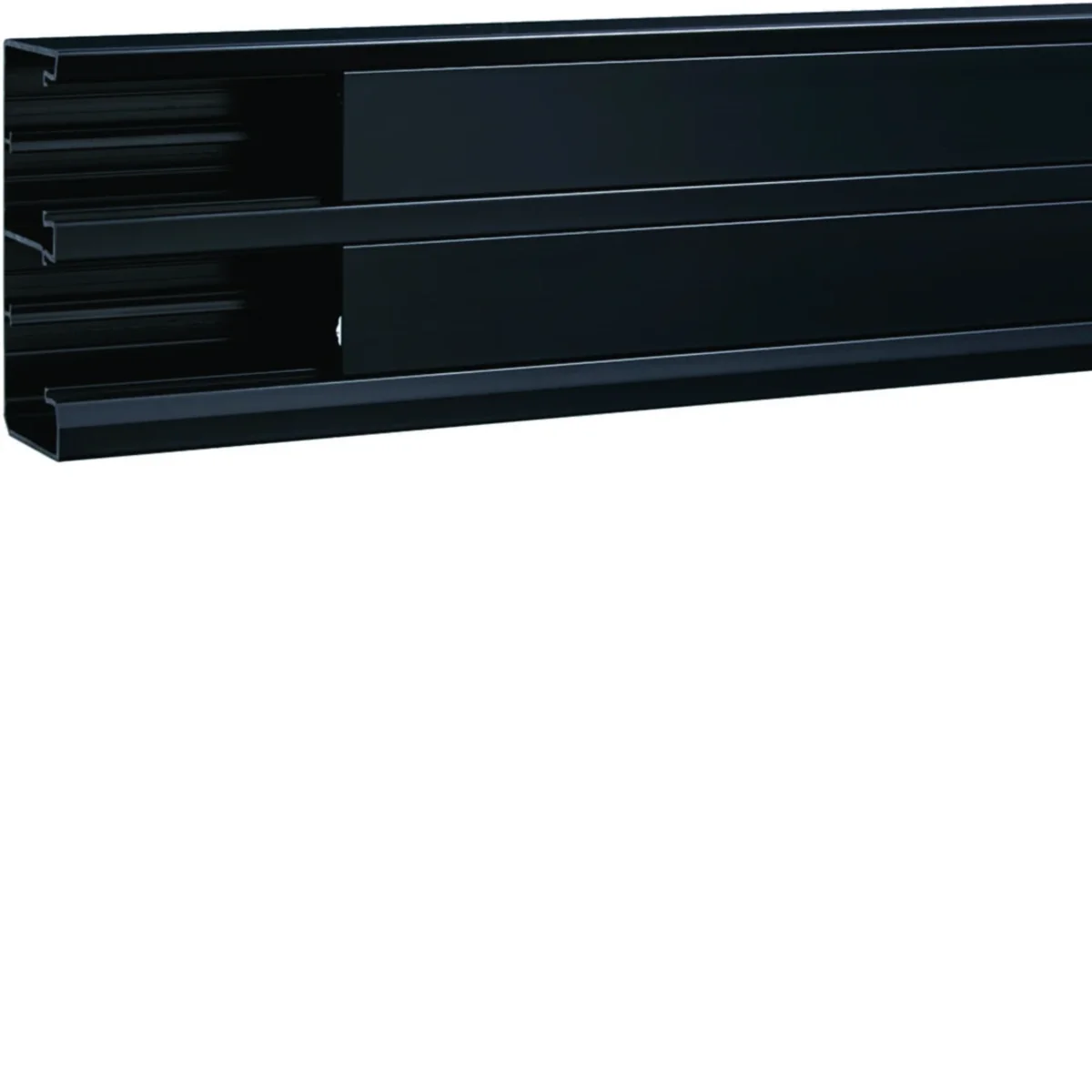

TEHALIT.GBD Wiring trunking 50x130mm 2 chambers black GBD5013109011
local index:
TKP261TEHA
Catalog No:
GBD5013109011
EAN code:
4012740856294
Large-size product
Price:
57,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electrical installation trunking, 2-chamber, TEHALIT.GBD series.
Technical data
-
Halogen freeNO
-
ColorGraphite
-
Compatible productStandard 45mm
-
Width [mm]134
-
Height [mm]54
-
Surface finishNatural
-
Number of chambers2 to 4
-
Number of covers that can be fitted2
-
Length [mm]2000
-
MaterialPVC
-
FamilyTEHALIT.GBD
-
Cover width [mm]45
-
Operating temperature range [°C]from -5 to 65
-
Usable cross-section [mm²]5330
-
Protective filmYes
-
PKWIU27.33.14.0
Other technical data
-
Width134 mm
-
Length2000 mm
-
Covers supplied with the productYes
-
Cover width 245 mm
-
SymmetricNo
-
MaterialPlastic
-
Halogen freeNo
-
ColourBlack
-
Construction rear wall (inner side)Continuous other profile
-
With duct connectorYes
-
Mounting method coverInner lying
-
Useful cross section5330 mm²
-
Depth54 mm
-
Number of covers2
-
Cover width 145 mm
-
Cover width 30 mm
-
Construction type rectangularYes
-
Material qualityPolyvinyl chloride (PVC)
-
Surface protectionUntreated
-
RAL-number9011
-
With protective foilYes
-
Bottom perforationYes
-
With cable fixing clipNo
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 6 pcs. | 162 pcs. |
| Weight (kg) | 1,564 | 20,760 | 609,430 |
| Width (m) | 0,130 | 0,260 | 0,800 |
| Length (m) | 0,054 | 0,160 | 1,640 |
| Depth (m) | 1,000 | 2,045 | 2,045 |
