TEHALIT.GBA Base 50x50mm aluminium GBA500501ALU

local index:
TKM353TEHA
Catalog No:
GBA500501ALU
EAN code:
4012740204705
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 2000
Number of compartments: 1
Price:
84,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

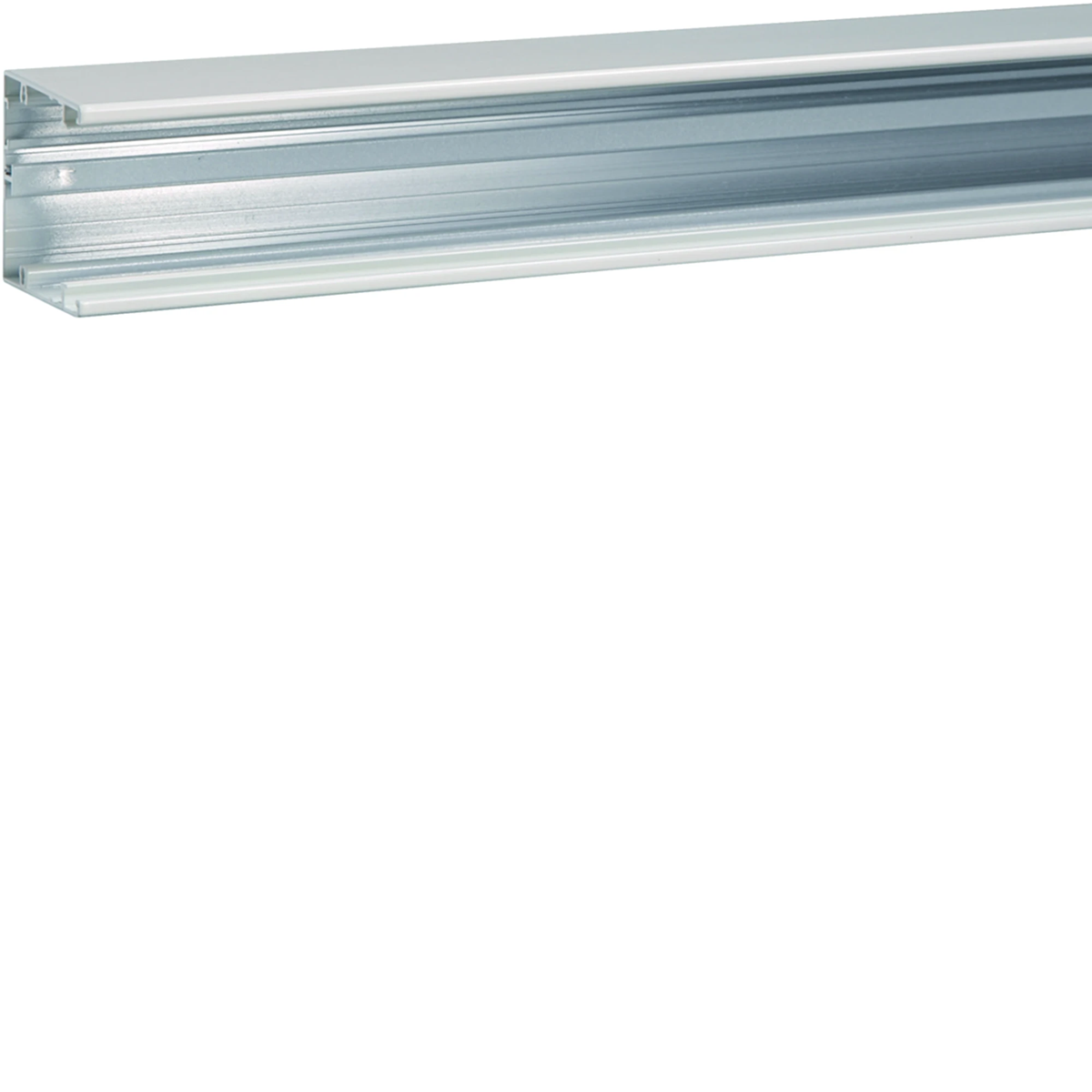

Base from the TEHALIT.GBA series. Made of naturally oxidized aluminum.

Technical data

  • Halogen free
    Yes
  • Number of compartments
    1
  • Material
    Aluminum
  • Family
    TEHALIT.GBA
  • Cover width [mm]
    45
  • Surface finish
    Anodized
  • Usable cross-section [mm²]
    2500
  • Protective film
    Yes
  • PKWIU
    25.11.23.0
  • Length [mm]
    2000
  • Color
    Silver
  • Compatible product
    Standard 45x45mm
  • Width [mm]
    54
  • Height [mm]
    54
  • Accurate color
    Aluminum
  • Number of chambers
    1 to 2
  • Number of covers that can be fitted
    1

Other technical data

  • Width
    54 mm
  • Length
    2000 mm
  • Covers supplied with the product
    No
  • Cover width 2
    0 mm
  • Symmetric
    Yes
  • Material
    Aluminium
  • Halogen free
    Yes
  • Colour
    Other
  • With protective foil
    Yes
  • With duct connector
    Yes
  • Mounting method cover
    Inner lying
  • Useful cross section
    2500 mm²
  • Depth
    54 mm
  • Number of covers
    1
  • Cover width 1
    45 mm
  • Cover width 3
    0 mm
  • Construction type rectangular
    Yes
  • Material quality
    Other
  • Surface protection
    Anodised
  • Construction rear wall (inner side)
    Continuous other profile
  • Number of plug-in partitions
    1
  • Bottom perforation
    No
  • With cable fixing clip
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 12 pcs. 432 pcs.
Weight (kg) 0,500 21,820 825,520
Width (m) 0,050 0,180 0,800
Length (m) 0,050 0,160 1,640
Depth (m) 1,000 2,045 2,045
