TEHALIT.GBA Base 50x161mm aluminium GBA501611ALU
local index:
TKM355TEHA
Catalog No:
GBA501611ALU
EAN code:
4012740204781
Large-size product
Price:
190,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

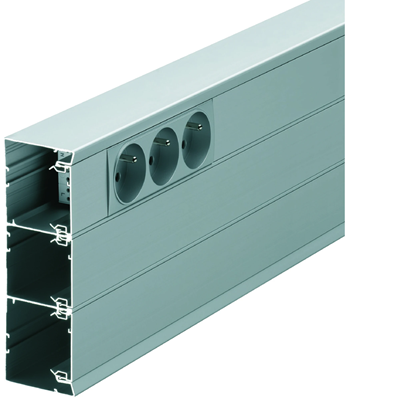

Base from the TEHALIT.GBA series. Made of naturally oxidized aluminum.
Technical data
-
Halogen freeYes
-
ColorSilver
-
Compatible productStandard 45x45mm
-

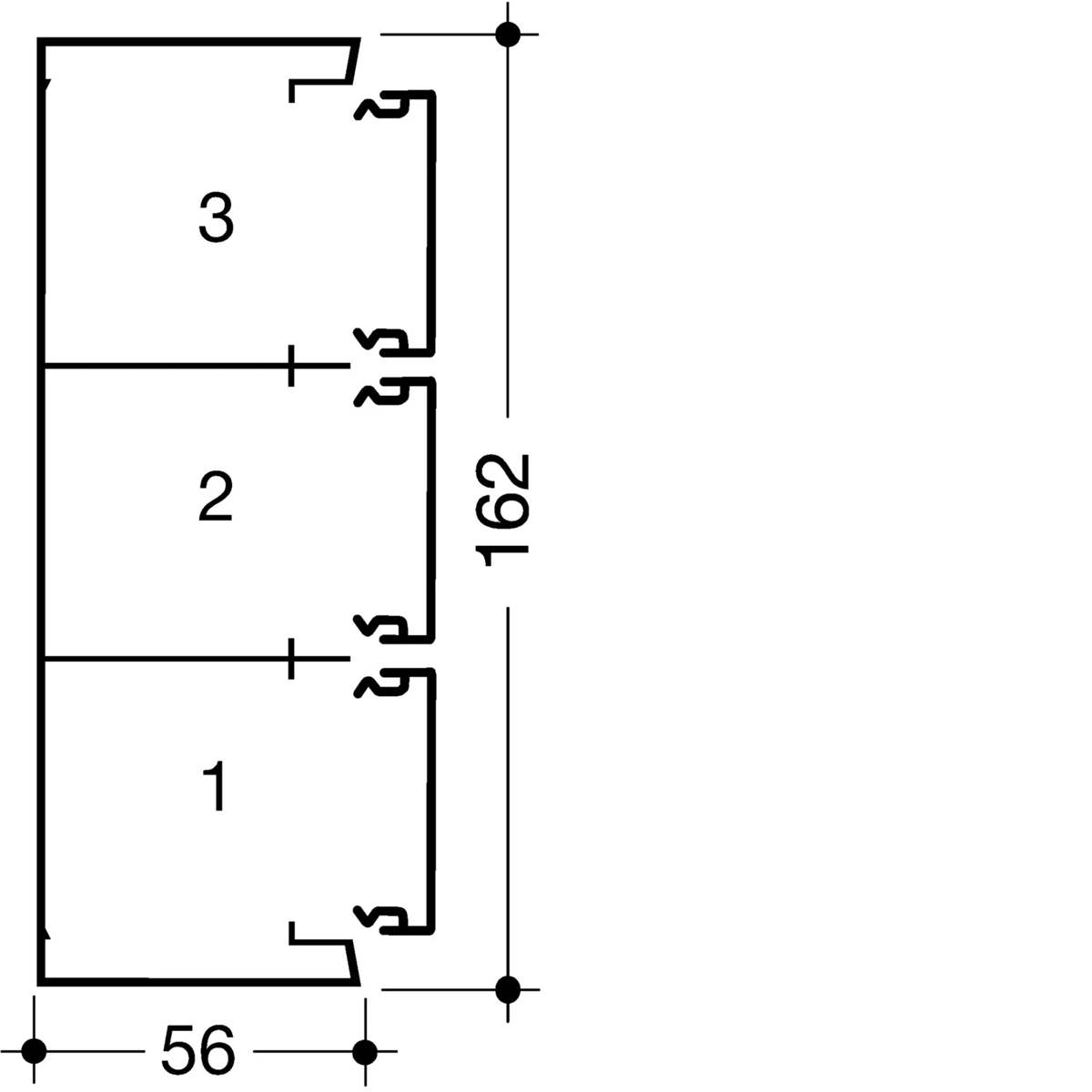

Width [mm]162
-
Height [mm]56
-
Accurate colorAluminum
-
Number of chambers3
-
Number of covers that can be fitted3
-
Length [mm]2000
-
MaterialAluminum
-
FamilyTEHALIT.GBA
-
Cover width [mm]45
-
Surface finishAnodized
-
Usable cross-section [mm²]8000
-
Protective filmYes
-
PKWIU25.11.23.0
Other technical data
-
Width162 mm
-
Length2000 mm
-
Covers supplied with the productNo
-
Cover width 245 mm
-
SymmetricYes
-
MaterialAluminium
-
Halogen freeYes
-
ColourOther
-
With protective foilYes
-
With duct connectorYes
-
Mounting method coverInner lying
-
Useful cross section8000 mm²
-
Depth56 mm
-
Number of covers3
-
Cover width 145 mm
-
Cover width 345 mm
-
Construction type rectangularYes
-
Material qualityOther
-
Surface protectionAnodised
-
Construction rear wall (inner side)Continuous other profile
-
Number of plug-in partitions0
-
Bottom perforationNo
-
With cable fixing clipNo
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 4 pcs. | 144 pcs. |
| Weight (kg) | 1,850 | 17,140 | 657,040 |
| Width (m) | 0,160 | 0,180 | 0,800 |
| Length (m) | 0,050 | 0,160 | 1,640 |
| Depth (m) | 1,000 | 2,045 | 2,045 |
