TEHALIT.DNG Comb channel 100x75mm grey DNG10007507030B
local index:
TKP084TEHA
Catalog No:
DNG10007507030B
EAN code:
4012740108386
Large-size product
Price:
27,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

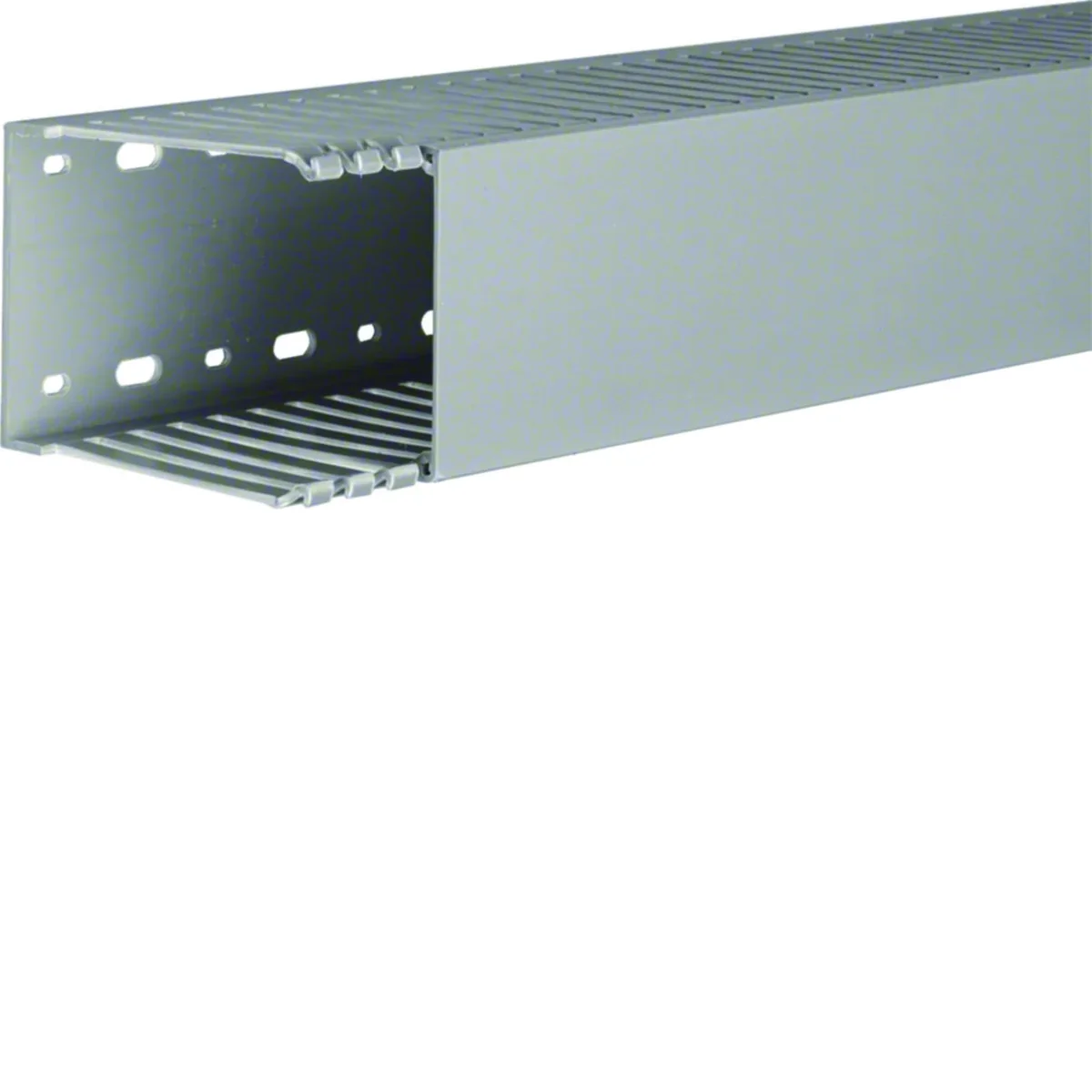

Comb channel from the tehalite series.DNG.
Series characteristics: < /p>
Comb trunking systems ensure clear and simple cable routing and increase the safety of operation and maintenance of electrical switchgears and controlgears. Comb channels eliminate the risk of errors in both operation and normal operation of devices.
Technical data
-
Halogen freeNO
-
ColorGray
-
Fixingperforated bottom
-
Width [mm]75
-
Surface finishNatural
-
Fire resistanceM1
-
Length [mm]2000
-
MaterialPVC
-
FamilyTEHALIT.DNG
-
Height [mm]100
-
Usable cross-section [mm²]6387
-
PKWIU27.33.14.0
Other technical data
-
Height100 mm
-
Length2000 mm
-
Distance of slots7.5 mm
-
Type of side wallSlotted
-
Self-extinguishingYes
-
Useful cross section6387 mm²
-
With coverYes
-
Width75 mm
-
Diameter0 mm
-
Slit width5 mm
-
Halogen freeNo
-
FlexibleNo
-
Type of fasteningBottom perforation
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 8 pcs. | 192 pcs. |
| Weight (kg) | 0,884 | 15,800 | 419,200 |
| Width (m) | 0,075 | 0,180 | 0,800 |
| Length (m) | 0,100 | 0,240 | 1,640 |
| Depth (m) | 1,000 | 2,045 | 2,045 |
